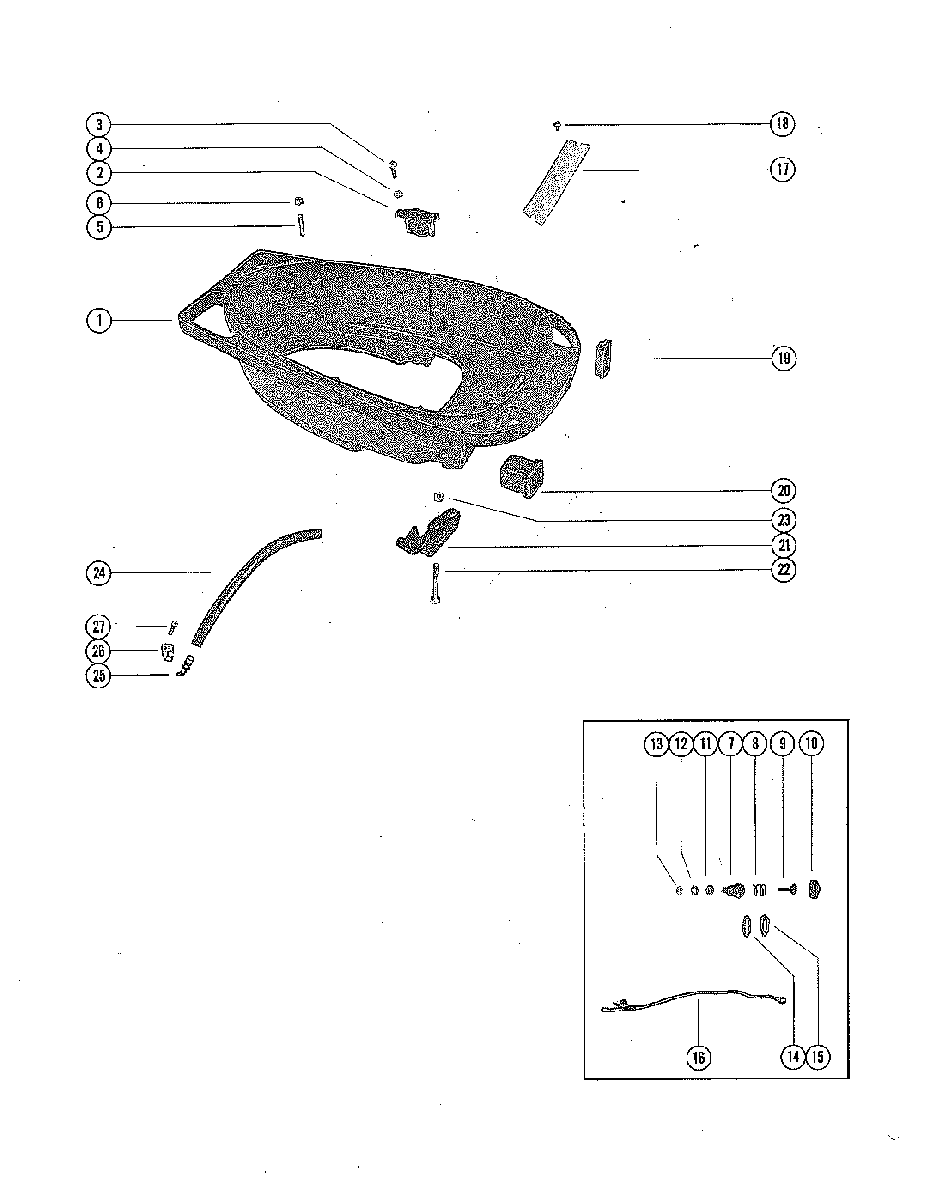

BOTTOM COWL ASSEMBLY для Mercury - 500 9082514 THRU 9107213
-
№АртикулНазвание
-
12116-7715A4 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
257786 COVER, PLUG - BOTTOM COWL HARNESS HOLE
REMOVE - NOT REQUIRED ON ELECTRIC ENGINECOVER, PLUG - BOTTOM COWL HARNESS HOLE
REMOVE - NOT REQUIRED ON ELECTRIC ENGINE -
310-45862 SCREW, PLUG COVER TO BOTTOM COWL
REMOVE - NOT REQUIRED ON ELECTRIC ENGINESCREW, PLUG COVER TO BOTTOM COWL
REMOVE - NOT REQUIRED ON ELECTRIC ENGINE -
413-26996 LOCKWASHER, PLUG COVER SCREW
REMOVE - NOT REQUIRED ON ELECTRIC ENGINELOCKWASHER, PLUG COVER SCREW
REMOVE - NOT REQUIRED ON ELECTRIC ENGINE -
-12-847883 WASHER, PLUG COVER SCREW
REMOVE - NOT REQUIRED ON ELECTRIC ENGINEWASHER, PLUG COVER SCREW
REMOVE - NOT REQUIRED ON ELECTRIC ENGINE -
516-68169 STUD, BOTTOM COWL TO REAR SUPPORT BRACKETSTUD, BOTTOM COWL TO REAR SUPPORT BRACKET
-
611-35888 NUT, BOTTOM COWL STUDNUT, BOTTOM COWL STUD
-
759065A4 STOP SWITCH ASSEMBLY MANUEL
MANUALSTOP SWITCH ASSEMBLY MANUEL
MANUAL -
824-60239 SPRING, STOP SWITCH
MANUALSPRING, STOP SWITCH
MANUAL -
987-61577A1 CONTACT ASSEMBLY, STOP SWITCH
MANUALCONTACT ASSEMBLY, STOP SWITCH
MANUAL -
1038950A1 COVER ASSEMBLY, STOP SWITCH
MANUALCOVER ASSEMBLY, STOP SWITCH
MANUAL -
1112-59061 WASHER, STOP SWITCH
MANUALWASHER, STOP SWITCH
MANUAL -
1213-26996 LOCKWASHER, STOP SWITCH
MANUALLOCKWASHER, STOP SWITCH
MANUAL -
1311-68219 NUT, GROUND LEAD TO STOP SWITVH
MANUALNUT, GROUND LEAD TO STOP SWITVH
MANUAL -
1413-21972 LOCKWASHER, CONNECTOR BASE
MANUALLOCKWASHER, CONNECTOR BASE
MANUAL -
1511-21971 NUT, CONNECTOR BASE TO BOTTOM COWL
MANUALNUT, CONNECTOR BASE TO BOTTOM COWL
MANUAL -
1656319A5 WIRE, SWITCH BOX TO STOP SWITCH
MANUALWIRE, SWITCH BOX TO STOP SWITCH
MANUAL -
1760948A1 COVER PLATE ASSEMBLYCOVER PLATE ASSEMBLY
-
1810-62568 SCREW, COVER PLATE TO BOTTOM COWL (3/8")SCREW, COVER PLATE TO BOTTOM COWL (3/8")
-
1937695 BOOT, CONTROL CABLEBOOT, CONTROL CABLE
-
2037637 BOOT, FUEL CONNECTORBOOT, FUEL CONNECTOR
-
2137692 SUPPORT, EXTERNAL WIRING HARNESS ELECTRIC
ELECTRICSUPPORT, EXTERNAL WIRING HARNESS ELECTRIC
ELECTRIC -
2210-67916 SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
ELECTRICSCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
ELECTRIC -
2311-20184 NUT, HARNESS SUPPORT SCREW
ELECTRICNUT, HARNESS SUPPORT SCREW
ELECTRIC -
2432-8M0108355 HOSE, TELL TALE HOSE TO BOTTOM COWLHOSE, TELL TALE HOSE TO BOTTOM COWL
-
2569791 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
2666849 CLAMP, NOZZLE - TELL TALECLAMP, NOZZLE - TELL TALE
-
2710-48408 SCREW, NOZZLE CLAMP TO BOTTOM COWL (1/2")SCREW, NOZZLE CLAMP TO BOTTOM COWL (1/2")
