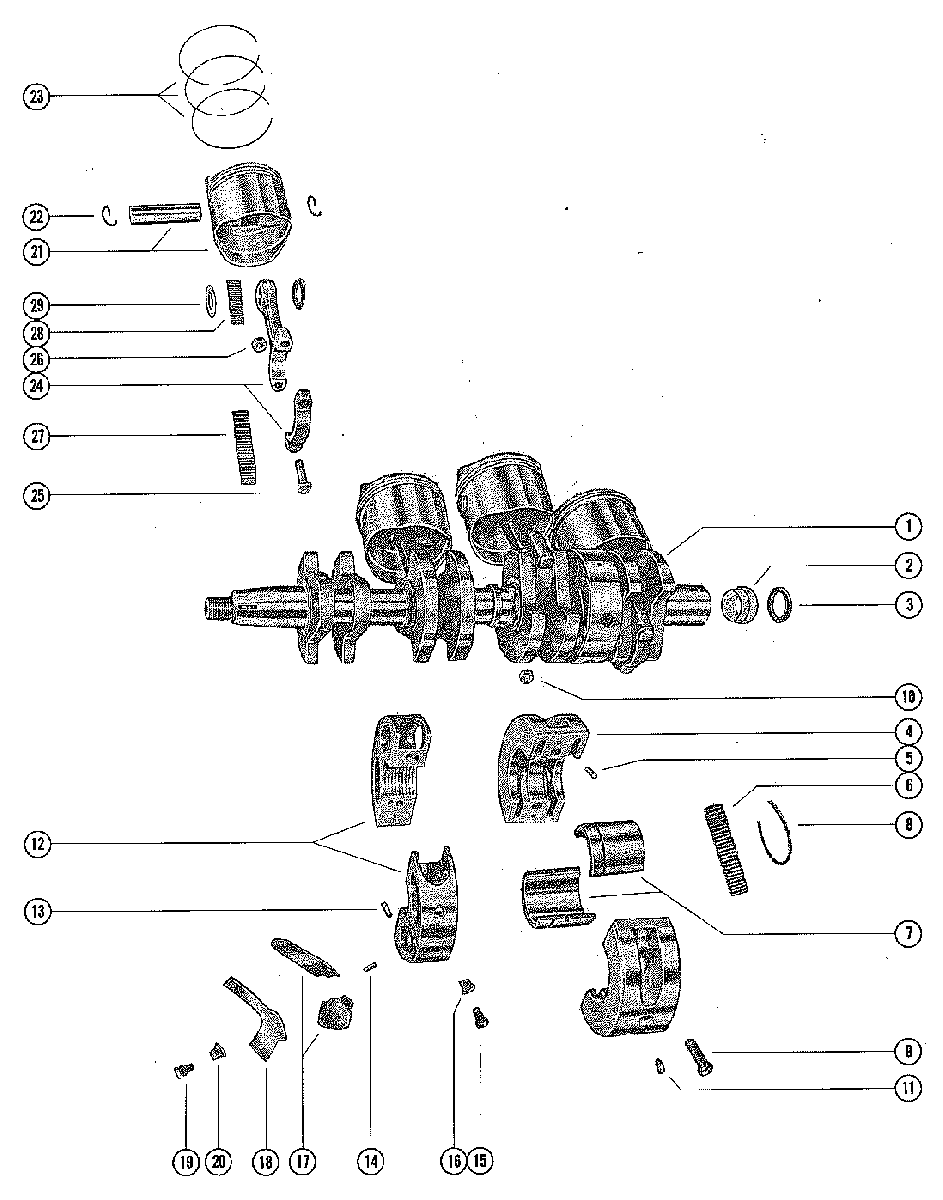

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500 9082514 THRU 9107213

  • №
    Артикул
    Название
  • 1
    400-4627 CRANKSHAFT
    CRANKSHAFT
  • 2
    60834A3 CARROER ASSEMBLY, "O" RING
    CARROER ASSEMBLY, "O" RING
  • 3
    64254001 "O" RING, CARRIER
    "O" RING, CARRIER
  • 4
    500-5345A2 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 5
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 6
    29-20046T BEARING, NEEDLE
    BEARING, NEEDLE
  • 7
    20047 RACE, OUTER
    RACE, OUTER
  • 8
    53-20048 RING, SNAP - OUTER RACE CLAMPING
    RING, SNAP - OUTER RACE CLAMPING
  • 9
    10-20784 SCREW, CENTER MAIN VEARING CLAMPING (1 1/2")
    SCREW, CENTER MAIN VEARING CLAMPING (1 1/2")
  • 10
    11-20184 NUT, CENTER MAIN BEARING CLAMPING SCREW
    NUT, CENTER MAIN BEARING CLAMPING SCREW
  • 11
    17-20379 DOWEL PIN, (STEPPED)
    DOWEL PIN, (STEPPED)
  • 12
    534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 13
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 14
    17-65855 DOWEL PIN, REED LOCATING
    DOWEL PIN, REED LOCATING
  • 15
    10-45775 SCREW, MAIN BEARING CLAMPING (9/16")
    SCREW, MAIN BEARING CLAMPING (9/16")
  • 16
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 17
    34-88498A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 18
    34-20053 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 19
    10-77280 SCREW, REED STOP MOUNTING (9/16")
    SCREW, REED STOP MOUNTING (9/16")
  • 20
    11-20110 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 21
    780-9229A7 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 22
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 23
    39-27841A12 RING, PISTON
    RING, PISTON
  • 24
    632-7621A3 CONNECTING ROD AND CAN ASSEMBLY
    CONNECTING ROD AND CAN ASSEMBLY
  • 25
    10-45379 SCREW, CAP TO CONNECTING ROD
    SCREW, CAP TO CONNECTING ROD
  • 26
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 27
    29-20046T BEARING, NEDDLE - CRANKPIN
    BEARING, NEDDLE - CRANKPIN
  • 28
    29-20063 BEARING, NEEDLE-PISONT PIN
    BEARING, NEEDLE-PISONT PIN
  • 29
    12-47275 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    780-9229A10 PISOTN AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    OVERSIZE PISTON AND RING
    PISOTN AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    OVERSIZE PISTON AND RING
  • --
    39-28616A12 RING, PISTON (.015 OVERSIZE)
    OVERSIZE PISTON AND RING
    RING, PISTON (.015 OVERSIZE)
    OVERSIZE PISTON AND RING
