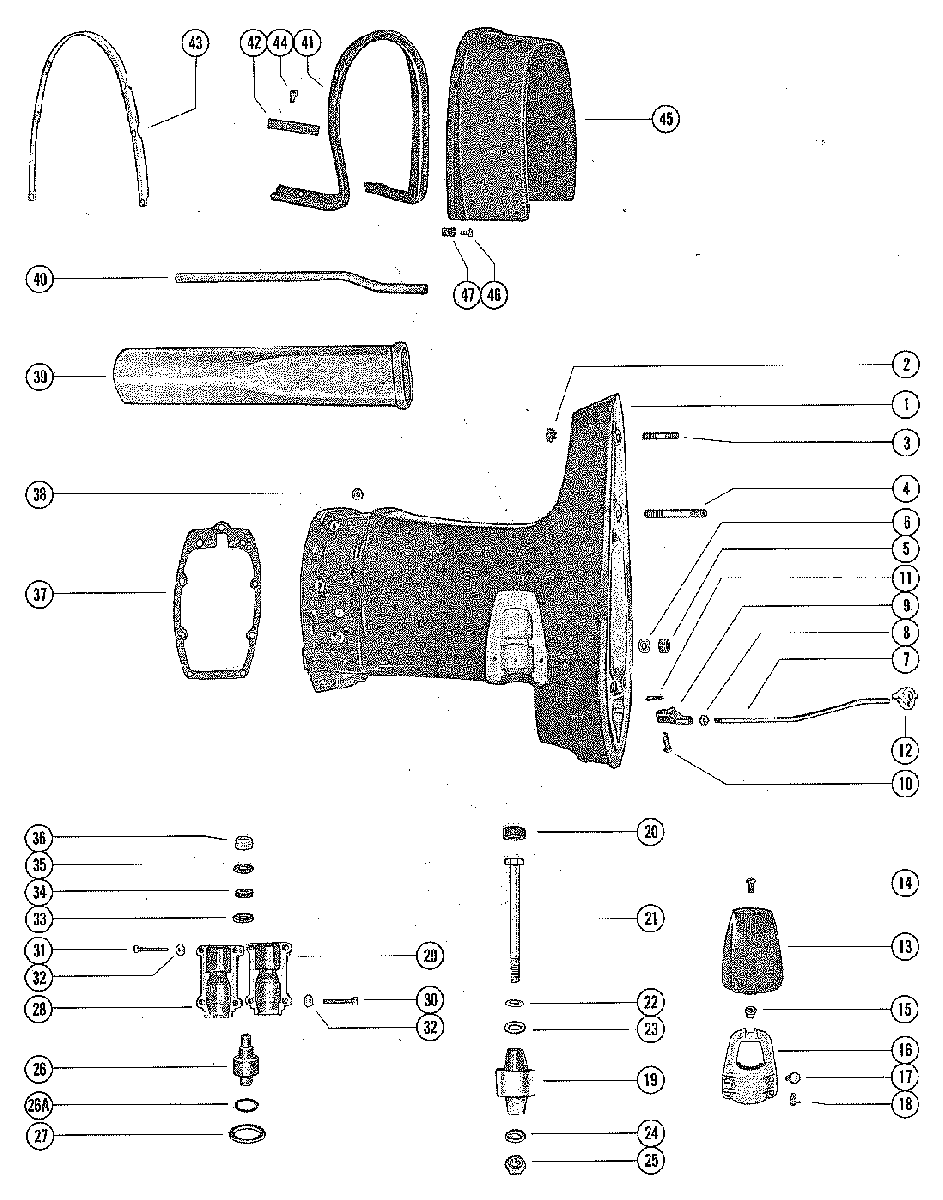

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 9082514 THRU 9107213
-
№АртикулНазвание
-
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
219-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
316-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
416-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
612-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
747835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
747836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
811-28770 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
947837 ROD END, PUSH RODROD END, PUSH ROD
-
1024-78203A2 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
1252917 GUIDE, PUSH ROD
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607GUIDE, PUSH ROD
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
12933361 GUIDE, PUSH ROD
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPGUIDE, PUSH ROD
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
1335474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1410-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
-
1511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1669592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1710-29256 SCREW, LOWER MOUNT CLAMP/DRIVE SHAFT HSG.SCREW, LOWER MOUNT CLAMP/DRIVE SHAFT HSG.
-
1824-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
1975304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2025067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
2110-75284 SCREW, LOWER MOUNT SCREWSCREW, LOWER MOUNT SCREW
-
2212-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2312-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
2412-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2511-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2675305 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
26A25-65936 "O" RING, UPPER MOUNT"O" RING, UPPER MOUNT
-
2724929 PACKING, "U" CUP - UPPER MOUNT COVERSPACKING, "U" CUP - UPPER MOUNT COVERS
-
2879680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2979680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3010-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")SCREW, UPPER MOUNT COVER - REAR (1 1/2")
-
3110-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
-
3211-69431 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3312-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
3412-66966 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3512-30519 WASHER, UPPER MOUNT BOLD (3/8 ID)WASHER, UPPER MOUNT BOLD (3/8 ID)
-
3611-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3727-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3811-64809 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
-
39695431 TUBE, EXHAUST(SHORT SHAFT)TUBE, EXHAUST(SHORT SHAFT)
-
39695441 TUBE, EXHAUST(LONG SHAFT)TUBE, EXHAUST(LONG SHAFT)
-
4032-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
4032-45679 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
4138157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
4238154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
4338158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
4410-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
-
4537687 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
4610-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
4725-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
