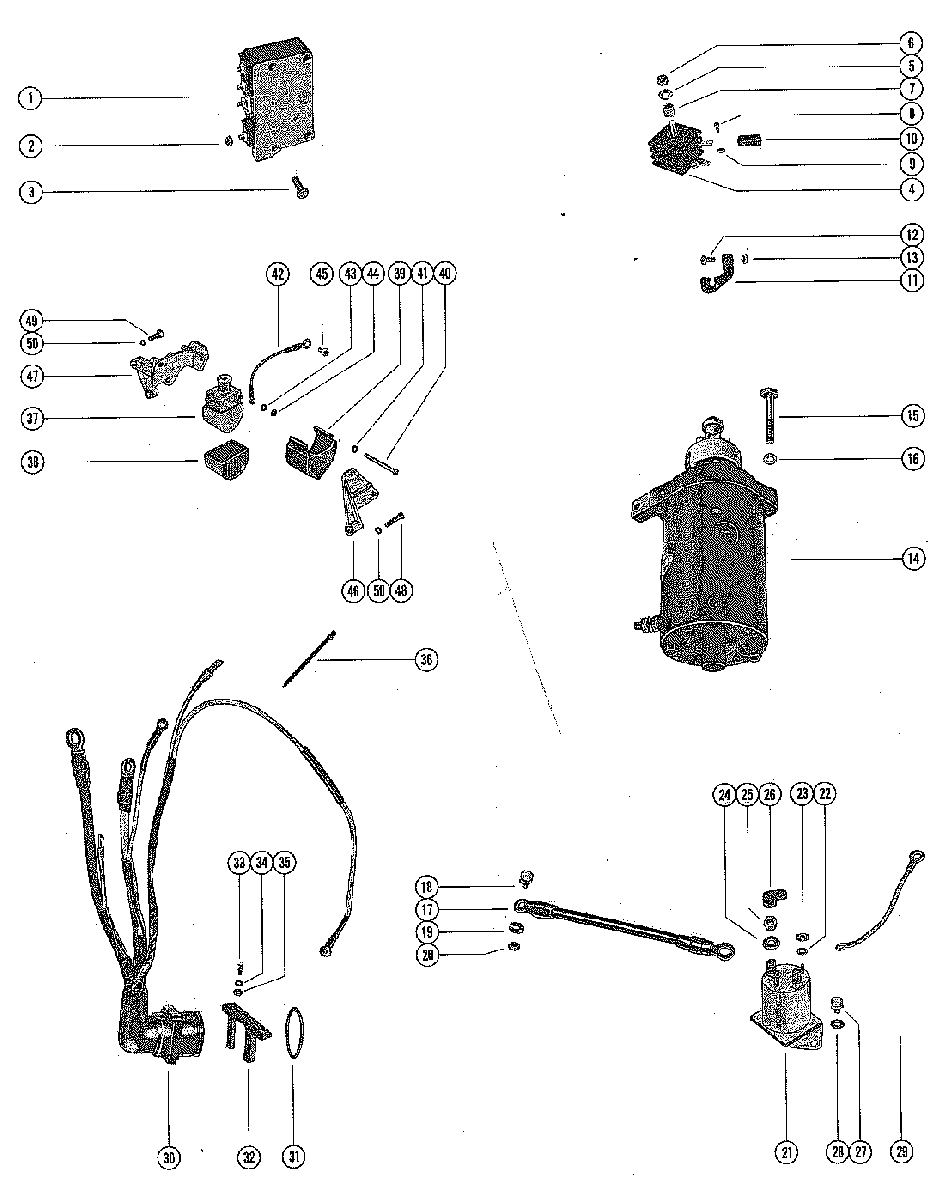

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 500 9082514 THRU 9107213
-
№АртикулНазвание
-
1333-3213A3 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
211-45076 NUT, SWITCH BOX TERNINALNUT, SWITCH BOX TERNINAL
-
310-69030 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8")
-
48M0058226 RECTIFIER ELECTRIC ELECTRICRECTIFIER ELECTRIC ELECTRIC
-
513-26993 LOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRICLOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRIC
-
611-28770 NUT, RECTIFIER TO FRONT BRACKET ELECTRICNUT, RECTIFIER TO FRONT BRACKET ELECTRIC
-
723-28458 SPACER, RECTIFIER TO FRONT BRACKET ELECTRICSPACER, RECTIFIER TO FRONT BRACKET ELECTRIC
-
810-20055 SCREW, RECTIFIER TERMINALS (3/8") ELECTRICSCREW, RECTIFIER TERMINALS (3/8") ELECTRIC
-
911-826709106 NUT, RECTIFIER TERMINALS ELCTRICNUT, RECTIFIER TERMINALS ELCTRIC
-
1032-28373 SLEEVE, RECTIFIER TERMINALS ELCTRICSLEEVE, RECTIFIER TERMINALS ELCTRIC
-
1159757 BRACKET, RETAINER - HIGH TENSION LEADBRACKET, RETAINER - HIGH TENSION LEAD
-
1210-49987 SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2"0)SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2"0)
-
1311-826709109 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
1450-55601A2 STARTER MOTOR ASSEMBLY ELECTRICSTARTER MOTOR ASSEMBLY ELECTRIC
-
1510-52446 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRICSCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRIC
-
1613-26993 LOCKWASHER, STARTER MOTOR SCREW ELECTRICLOCKWASHER, STARTER MOTOR SCREW ELECTRIC
-
1784-71441 WIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRICWIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRIC
-
1810-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRICSCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRIC
-
1913-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRICLOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRIC
-
2011-20890 NUT, GROUND WIRE SCREW ELECTRICNUT, GROUND WIRE SCREW ELECTRIC
-
2189-853654A1 STARTER SOLENOID ELECTRICSTARTER SOLENOID ELECTRIC
-
2213-26996 LOCKWASHER, SOLENOID TERMINAL (#10) ELECTRICLOCKWASHER, SOLENOID TERMINAL (#10) ELECTRIC
-
2311-68219 NUT, SOLENOID TERMINAL (#10) ELECTRICNUT, SOLENOID TERMINAL (#10) ELECTRIC
-
2413-26993 LOCKWASHER, SOLENOID TERMINAL (5/16"0 ELECTRIC)LOCKWASHER, SOLENOID TERMINAL (5/16"0 ELECTRIC)
-
2511-26062 NUT, CAP - SOLENOID TERMINAL (5/16") ELECTRICNUT, CAP - SOLENOID TERMINAL (5/16") ELECTRIC
-
2646265 BOOT, TERMINAL - STARTER SOLENOID ELECTRICBOOT, TERMINAL - STARTER SOLENOID ELECTRIC
-
2710-28635 SCREW, SOLENOID TO SUPPORT BRACKET (3/4") ELECTRICSCREW, SOLENOID TO SUPPORT BRACKET (3/4") ELECTRIC
-
2813-26992 WASHER, STARTER SOLENOID SCREW ELECTRICWASHER, STARTER SOLENOID SCREW ELECTRIC
-
2984-65773A2 GROUND STRAP ASSEMBLY ELECTRICGROUND STRAP ASSEMBLY ELECTRIC
-
3084-71443A1 WIRING HARNESS (INTERNAL) ELECTRICWIRING HARNESS (INTERNAL) ELECTRIC
-
3124-28975 SPRING, GARTER - INTERNAL WIRING HARNESS ELECTRICSPRING, GARTER - INTERNAL WIRING HARNESS ELECTRIC
-
3254-76368 CLAMP, WIRING HARNESS ELECTRICCLAMP, WIRING HARNESS ELECTRIC
-
3310-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRICSCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRIC
-
3413-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRICLOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRIC
-
3512-847883 WASHER, WIRING H ARNESS CLAMP SCREW ELECTRICWASHER, WIRING H ARNESS CLAMP SCREW ELECTRIC
-
3661990 STA-STRAP, WIRING HARNESS ELECTRICSTA-STRAP, WIRING HARNESS ELECTRIC
-
37332-4895T2 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
3872015 PAD, RUBBER - IGNITION COILPAD, RUBBER - IGNITION COIL
-
3963195 COVER, CASTING - COILCOVER, CASTING - COIL
-
4010-60194 SCREW, IGNITION COIL TO BRACKET (2 1/8")SCREW, IGNITION COIL TO BRACKET (2 1/8")
-
4113-26996 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
4284-60871A10 WIRE ASSEMBLY, COIL TO SWITCH BOX (BLACK)WIRE ASSEMBLY, COIL TO SWITCH BOX (BLACK)
-
4284-71440A1 WIRE ASSEMBLY, COIL TO SWITCH BOX (GREEN)WIRE ASSEMBLY, COIL TO SWITCH BOX (GREEN)
-
4312-89302 WASHER, IGNITION COIL TERMINAL (#10)WASHER, IGNITION COIL TERMINAL (#10)
-
4411-45076 NUT, IGNITION COIL TERMINAL (#10)NUT, IGNITION COIL TERMINAL (#10)
-
4510-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
4670014 BRACKET, IGNITION COIL (REAR)BRACKET, IGNITION COIL (REAR)
-
4770012 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
4810-36154 SCREW, COIL BRACKET TO BOTTOM COWL (1 3/8")SCREW, COIL BRACKET TO BOTTOM COWL (1 3/8")
-
4910-36137 SCREW, COIL BRACKET TO BOTTOM COWL (1")SCREW, COIL BRACKET TO BOTTOM COWL (1")
-
5013-26992 LOCKWASHER, COIL BRACKET SCREWLOCKWASHER, COIL BRACKET SCREW
