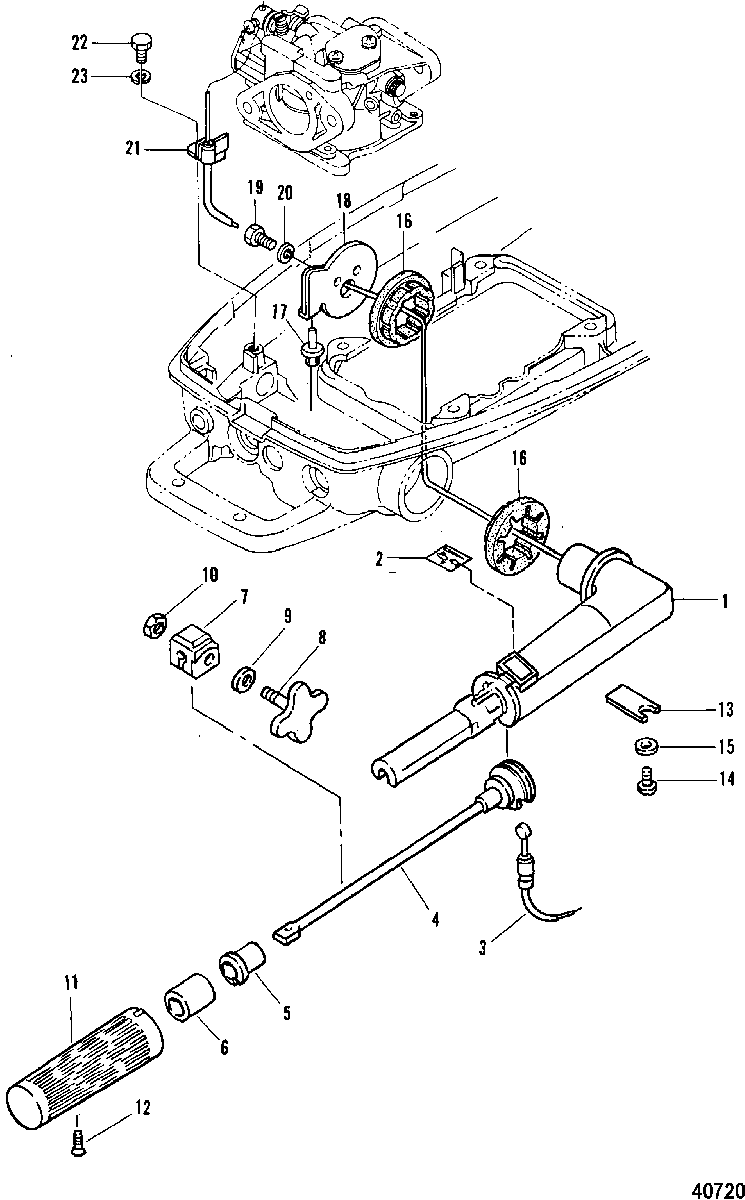

THROTTLE COMPONENTS для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    16075T4 HANDLE, Throttle
    HANDLE, Throttle
  • 2
    37-8M0097201 DECAL, THROTTLE
    DECAL, THROTTLE
  • 3
    16088 WIRE, Throttle
    WIRE, Throttle
  • 4
    16093 SHAFT, Throttle
    SHAFT, Throttle
  • 5
    23-8M0130166 BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 6
    23-16191 SPACER, THROTTLE SHAFT
    SPACER, THROTTLE SHAFT
  • 7
    813026 FRICTION PIECE
    SN# USA-A838181/Belgium-9542671 & Up
    FRICTION PIECE
    SN# USA-A838181/Belgium-9542671 & Up
  • 7
    813026 FRICTION PIECE
    SN# USA-A838180/Belgium-9542670 & Below
    FRICTION PIECE
    SN# USA-A838180/Belgium-9542670 & Below
  • 8
    10-16087 SCREW, Adjusting, FRICTION PIECE
    SCREW, Adjusting, FRICTION PIECE
  • 9
    12-16826 WASHER, Stainless Steel, FRICTION PIECE SCREW
    WASHER, Stainless Steel, FRICTION PIECE SCREW
  • 10
    11-400212 NUT, FRICTION PIECE SCREW
    NUT, FRICTION PIECE SCREW
  • 11
    16086 GRIP
    GRIP
  • 12
    10-16094 SCREW, GRIP
    SCREW, GRIP
  • 13
    16338 BRACKET, THROTTLE SHAFT
    BRACKET, THROTTLE SHAFT
  • 14
    10-16827 SCREW, BRACKET
    SCREW, BRACKET
  • 15
    12-16826 WASHER, Stainless Steel, BRACKET SCREW
    WASHER, Stainless Steel, BRACKET SCREW
  • 16
    23-16083005 BUSHING, HANDLE
    BUSHING, HANDLE
  • 17
    17-16085 PIN, HANDLE RETAINER
    PIN, HANDLE RETAINER
  • 18
    16084 RETAINER, HANDLE
    RETAINER, HANDLE
  • 19
    10-16832 BOLT
    BOLT
  • 20
    13-400256 LOCKWASHER
    LOCKWASHER
  • 21
    16089 BRACKET, THROTTLE WIRE
    BRACKET, THROTTLE WIRE
  • 22
    10-16828 BOLT, THROTTLE WIRE BRACKET
    BOLT, THROTTLE WIRE BRACKET
  • 23
    13-16818 LOCKWASHER, BRACKET BOLT
    LOCKWASHER, BRACKET BOLT
