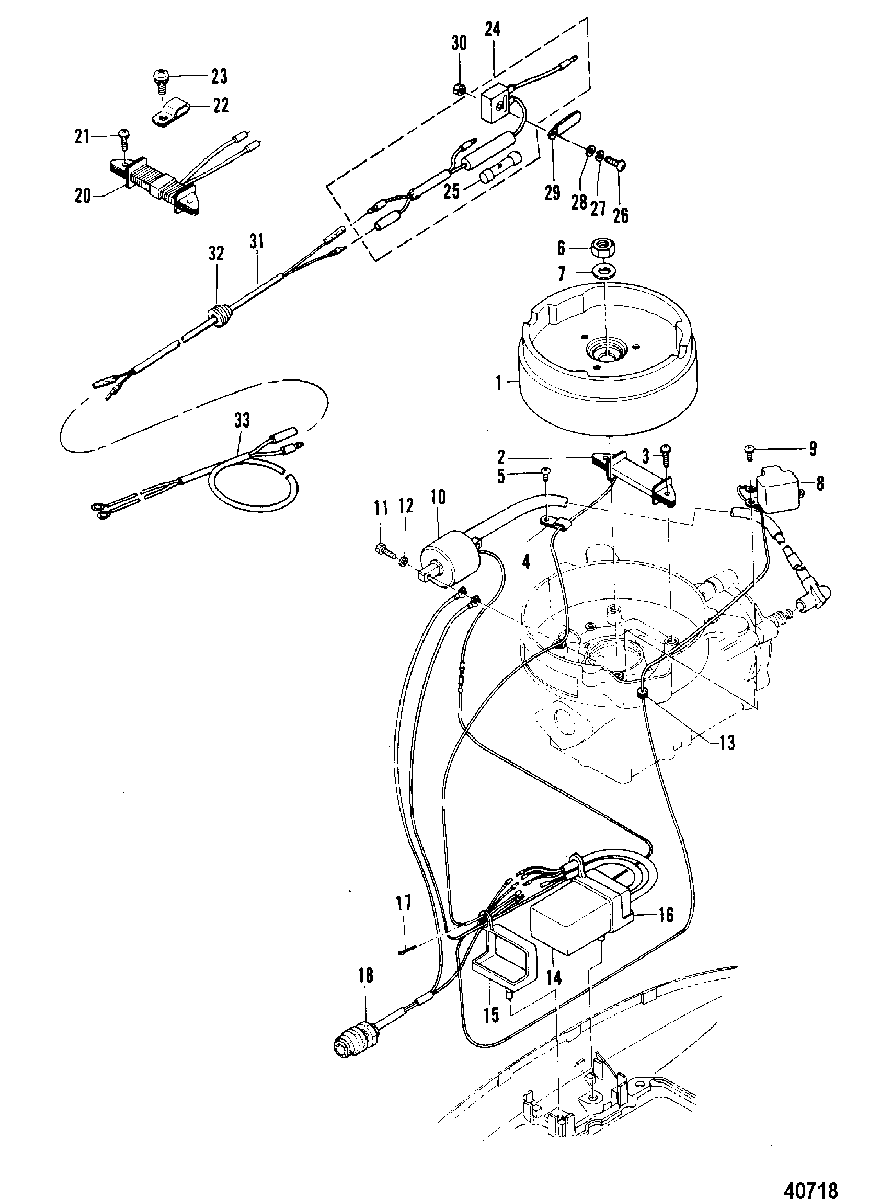

MAGNETO AND IGNITION COMPONENTS для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    262-9617 FLYWHEEL
    SN# USA-834680/Belgium-9542670 & Below
    FLYWHEEL
    SN# USA-834680/Belgium-9542670 & Below
  • 1
    200-8M0110989 FLYWHEEL
    SN# USA-834681/Belgium-9542671 & Up
    FLYWHEEL
    SN# USA-834681/Belgium-9542671 & Up
  • 2
    16058T COIL, Exciter
    COIL, Exciter
  • 3
    10-16059 SCREW, EXITER COIL
    SCREW, EXITER COIL
  • 4
    54-16060 CLAMP, EXCITER COIL WIRE
    CLAMP, EXCITER COIL WIRE
  • 5
    10-16821 SCREW, CLAMP
    SCREW, CLAMP
  • 6
    11-16071 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 7
    12-16072 WASHER, FLYWHEEL
    WASHER, FLYWHEEL
  • 8
    160661 COIL, Pulser
    COIL, Pulser
  • 9
    10-16067 SCREW, PULSER COIL
    SCREW, PULSER COIL
  • 10
    815113T02 COIL, Ignition
    COIL, Ignition
  • 11
    10-16065 BOLT, IGNITION COIL
    BOLT, IGNITION COIL
  • 12
    13-16818 LOCKWASHER, IGNITION COIL BOLT
    LOCKWASHER, IGNITION COIL BOLT
  • 13
    25-16068 GROMMET, PULSER COIL
    GROMMET, PULSER COIL
  • 14
    16061T04 CD UNIT
    CD UNIT
  • 15
    878061 DAMPER, C.D. UNIT (FRONT)
    DAMPER, C.D. UNIT (FRONT)
  • 16
    878062 DAMPER, C.D. UNIT (REAR)
    DAMPER, C.D. UNIT (REAR)
  • 17
    18-815026 COTTER PIN, C.D. UNIT
    COTTER PIN, C.D. UNIT
  • 18
    87-823037A04 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 20
    16074T ALTERNATOR
    SAIL POWER
    ALTERNATOR
    SAIL POWER
  • 21
    10-16059 SCREW, ALTERNATOR
    SAIL POWER
    SCREW, ALTERNATOR
    SAIL POWER
  • 22
    54-16060 CLAMP, ALTERNATOR
    SAIL POWER
    CLAMP, ALTERNATOR
    SAIL POWER
  • 23
    10-16821 SCREW, ALTERNATOR CLAMP
    SAIL POWER
    SCREW, ALTERNATOR CLAMP
    SAIL POWER
  • 24
    16076A1 RECTIFIER
    SAIL POWER
    RECTIFIER
    SAIL POWER
  • 25
    89-16077 FUSE
    SAIL POWER
    FUSE
    SAIL POWER
  • 26
    10-16078 SCREW, RECTIFIER
    SAIL POWER
    SCREW, RECTIFIER
    SAIL POWER
  • 27
    13-16079 LOCKWASHER, RECTIFIER SCREW
    SAIL POWER
    LOCKWASHER, RECTIFIER SCREW
    SAIL POWER
  • 28
    12-8M0108373 WASHER, Stainless Steel, RECTIFIER SCREW
    SAIL POWER
    WASHER, Stainless Steel, RECTIFIER SCREW
    SAIL POWER
  • 29
    54-8M0130961 CLAMP, RECTIFIER
    SAIL POWER
    CLAMP, RECTIFIER
    SAIL POWER
  • 30
    11-16081 NUT, Stainless Steel, RECTIFIER SCREW
    SAIL POWER
    NUT, Stainless Steel, RECTIFIER SCREW
    SAIL POWER
  • 31
    84-16822 HARNESS, Extension
    SAIL POWER
    HARNESS, Extension
    SAIL POWER
  • 32
    25-16823 GROMMET
    SAIL POWER
    GROMMET
    SAIL POWER
  • 33
    84-16082 CABLE, Battery
    SAIL POWER
    CABLE, Battery
    SAIL POWER
