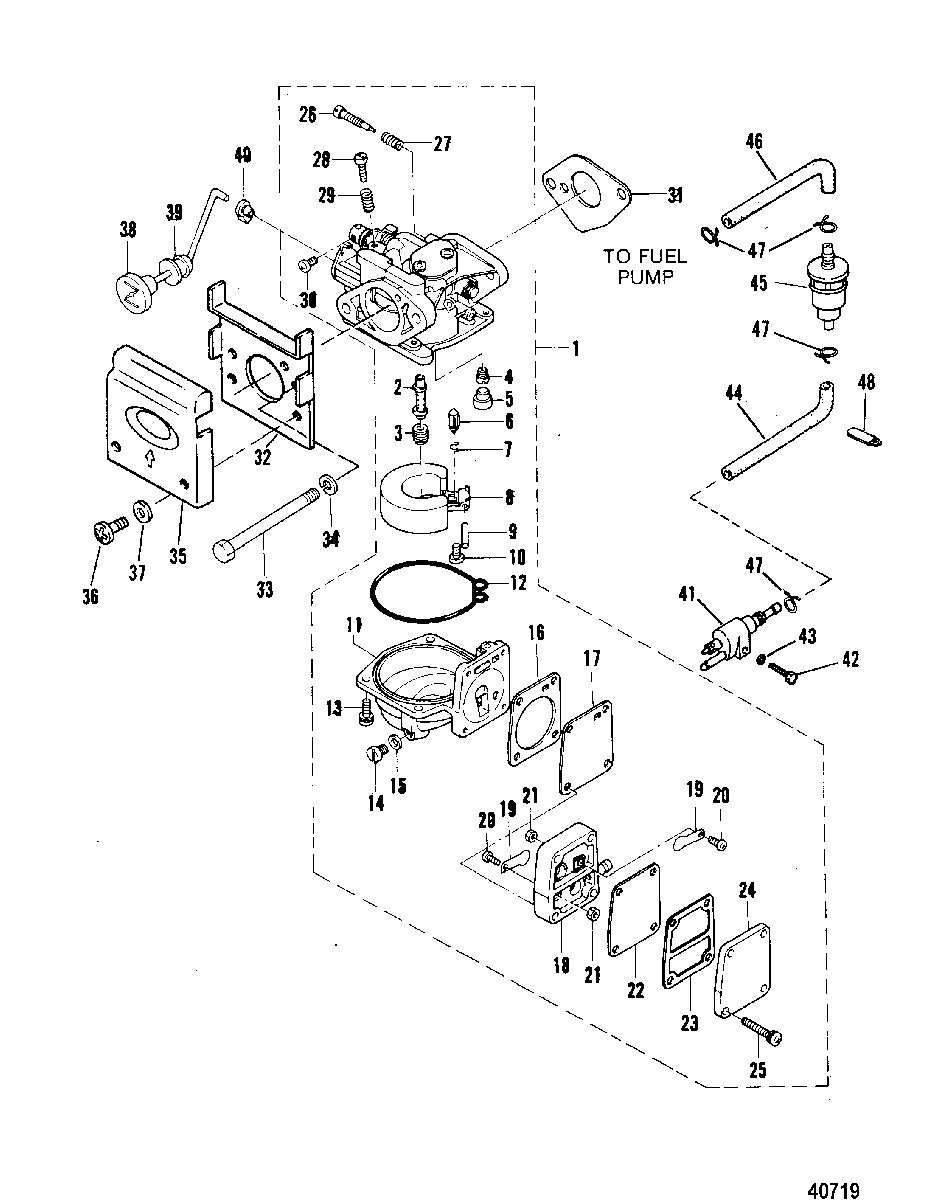

CARBURETOR для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    3303-812647T1 CARBURETOR
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
    CARBURETOR
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
  • 1
    3303-812648T CARBURETOR
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
    CARBURETOR
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
  • 1
    3303-812647T1 CARBURETOR
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
    CARBURETOR
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
  • 1
    3303-812648T CARBURETOR
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
    CARBURETOR
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
  • 2
    16249 MAIN NOZZLE
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
    MAIN NOZZLE
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
  • 2
    19248 MAIN NOZZLE
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
    MAIN NOZZLE
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
  • 2
    812649 MAIN NOZZLE
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
    MAIN NOZZLE
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
  • 2
    812650 MAIN NOZZLE
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
    MAIN NOZZLE
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
  • 3
    16250 MAIN JET (#78)
    (4 H.P.)
    MAIN JET (#78)
    (4 H.P.)
  • 3
    19249 JET, Main (#80)
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
    JET, Main (#80)
    (5 H.P.) SN# USA-A838660/Belgium-9542670 & Below
  • 3
    16250 MAIN JET (#78)
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
    MAIN JET (#78)
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
  • 4
    16251 JET, Pilot (#52)
    (4 H.P.)
    JET, Pilot (#52)
    (4 H.P.)
  • 4
    19250 JET, Pilot (#55)
    (5 H.P.) SN# USA-A838180/Belium-9542670 & Up
    JET, Pilot (#55)
    (5 H.P.) SN# USA-A838180/Belium-9542670 & Up
  • 4
    16251 JET, Pilot (#52)
    (5 H.P.) SN# USA-A838181/Belgium-9542671 & Up
    JET, Pilot (#52)
    (5 H.P.) SN# USA-A838181/Belgium-9542671 & Up
  • 5
    16252 CAP, SLOW JET
    CAP, SLOW JET
  • 6
    16254 FLOAT VALVE
    FLOAT VALVE
  • 7
    54-16255 CLIP, FLOAT VALVE
    CLIP, FLOAT VALVE
  • 8
    16253 FLOAT
    FLOAT
  • 9
    17-16256 PIN, FLOAT
    PIN, FLOAT
  • 10
    10-16257 SCREW, FLOAT
    SCREW, FLOAT
  • 11
    16258 FLOAT BOWL
    FLOAT BOWL
  • 12
    25-16259 O-RING, FLOAT BOWL
    O-RING, FLOAT BOWL
  • 13
    10-16260 SCREW, (M4 x 12), FLOAT BOWL
    SCREW, (M4 x 12), FLOAT BOWL
  • 14
    10-16261 SCREW, Drain
    SCREW, Drain
  • 15
    27-16262 GASKET, DRAIN SCREW
    GASKET, DRAIN SCREW
  • 16
    27-16326 GASKET, PUMP BODY
    GASKET, PUMP BODY
  • 17
    16325 DIAPHRAGM
    DIAPHRAGM
  • 18
    16268 BODY, Pump
    BODY, Pump
  • 19
    21-16269 CHECK VALVE
    CHECK VALVE
  • 20
    10-16270 SCREW, CHECK VALVE TO BODY
    SCREW, CHECK VALVE TO BODY
  • 21
    11-16271 NUT, CHECK VALVE SCREW
    NUT, CHECK VALVE SCREW
  • 22
    16275 DIAPHRAGM
    DIAPHRAGM
  • 23
    27-16274 GASKET, PUMP COVER
    GASKET, PUMP COVER
  • 24
    16272 COVER, Pump
    COVER, Pump
  • 25
    10-162606 SCREW, PUMP COVER
    SCREW, PUMP COVER
  • 26
    10-16265 SCREW, Adjusting
    SN# USA-A838660/Belgium-9542670 & Below
    SCREW, Adjusting
    SN# USA-A838660/Belgium-9542670 & Below
  • 26
    10-812935 SCREW, Adjusting
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
    SCREW, Adjusting
    (5 H.P.) SN# USA-A838661/Belgium-9542671 & Up
  • 27
    24-16266 SPRING, ADJUSTING SCREW
    SPRING, ADJUSTING SCREW
  • 28
    10-16263 SCREW
    SCREW
  • 29
    24-16264 SPRING, STOP SCREW
    SPRING, STOP SCREW
  • 30
    10-16267 SCREW
    SCREW
  • 31
    27-16327 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 32
    16328 BRACKET, BAFFLE PLATE
    BRACKET, BAFFLE PLATE
  • 33
    10-855809003 BOLT, (M6 x 85), BRACKET
    BOLT, (M6 x 85), BRACKET
  • 34
    13-16818 LOCKWASHER, BRACKET BOLT
    LOCKWASHER, BRACKET BOLT
  • 35
    812936 PLATE, Baffle
    SN# USA-A838180/Belgium-9542670 & Below
    PLATE, Baffle
    SN# USA-A838180/Belgium-9542670 & Below
  • 35
    812936 PLATE, Baffle
    SN# USA-A838181/Belgium-9542671 & Up
    PLATE, Baffle
    SN# USA-A838181/Belgium-9542671 & Up
  • 36
    10-16334 SCREW, BAFFLE PLATE
    SCREW, BAFFLE PLATE
  • 37
    12-16335 WASHER, BAFFLE PLATE SCREW
    WASHER, BAFFLE PLATE SCREW
  • 38
    16331 ROD, Choke
    ROD, Choke
  • 39
    25-16332 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 40
    16333 ROD, Snap
    ROD, Snap
  • 41
    22-15781A5 CONNECTOR, Fuel - Brass
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    CONNECTOR, Fuel - Brass
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 42
    10-4000333 SCREW, (M6 x 40)
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    SCREW, (M6 x 40)
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 43
    12-16826 WASHER, Stainless Steel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    WASHER, Stainless Steel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 44
    32-17668 HOSE (6-1/2")
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    HOSE (6-1/2")
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 45
    35-16248 FILTER, Fuel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    FILTER, Fuel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 46
    32-17669 HOSE (5-1/4")
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    HOSE (5-1/4")
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 47
    54-95395 CLIP, Stainless Steel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    CLIP, Stainless Steel
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
  • 48
    54-8M0130961 CLAMP
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
    CLAMP
    5 H.P FOR TANK/FUEL LINES SEE ACCESSORIES GUIDE
