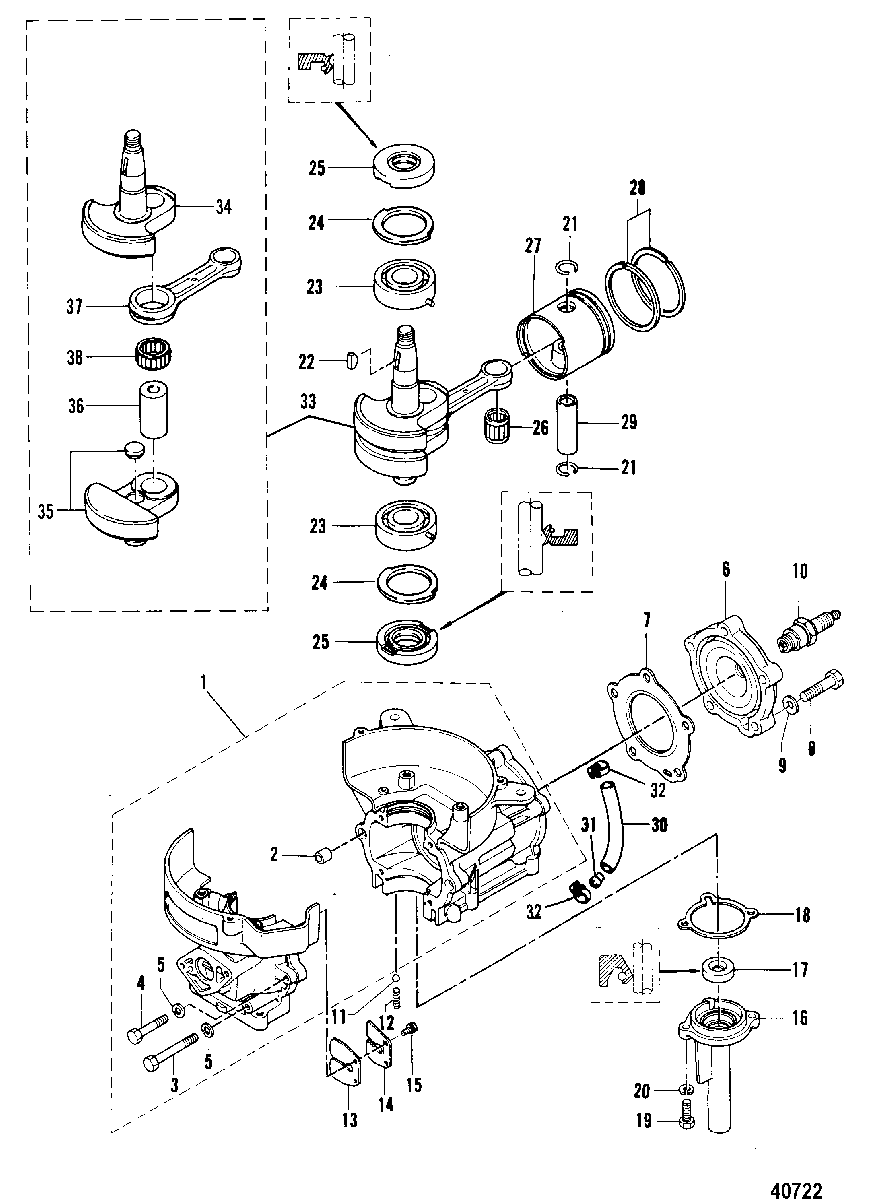

CYLINDER BLOCK/CRANKSHAFT/PISTON для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    878-9629 CYLINDER BLOCK
    SN# USA-A838180/Belgium-9542670 & Below
    CYLINDER BLOCK
    SN# USA-A838180/Belgium-9542670 & Below
  • 1
    878-812938 CYLINDER BLOCK
    SN# USA-A838181/Belgium-9542671 & Up
    CYLINDER BLOCK
    SN# USA-A838181/Belgium-9542671 & Up
  • 2
    17-95218 PIN, Dowel
    PIN, Dowel
  • 3
    10-16695 BOLT, CYLINDER BLOCK
    BOLT, CYLINDER BLOCK
  • 4
    10-16696 BOLT, CYLINDER BLOCK
    BOLT, CYLINDER BLOCK
  • 5
    13-16818 LOCKWASHER, CYLINDER BLOCK BOLTS
    LOCKWASHER, CYLINDER BLOCK BOLTS
  • 6
    979-96301 CYLINDER HEAD
    CYLINDER HEAD
  • 7
    27-812939015 GASKET, CYLINDER HEAD
    SN# USA-A838180/Belgium-9542670 & Below
    GASKET, CYLINDER HEAD
    SN# USA-A838180/Belgium-9542670 & Below
  • 7
    27-812939015 GASKET, CYLINDER HEAD
    SN# USA-A838181/Belgium-9542671 & Up
    GASKET, CYLINDER HEAD
    SN# USA-A838181/Belgium-9542671 & Up
  • 8
    10-16126 BOLT, CYLINDER HEAD
    BOLT, CYLINDER HEAD
  • 9
    12-4002217 WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 10
    33-8M0114744 SPARK PLUG, (NGK#BP7HS-10)
    SPARK PLUG, (NGK#BP7HS-10)
  • 11
    21-16700 CHECK VALVE
    CHECK VALVE
  • 12
    24-16701 SPRING, CHECK VALVE
    SPRING, CHECK VALVE
  • 13
    34-16706 REED VALVE
    REED VALVE
  • 14
    34-16707 STOP, REED VALVE
    (4 H.P.)
    STOP, REED VALVE
    (4 H.P.)
  • 14
    34-17666 STOP, REED VALVE
    (5 H.P.)
    STOP, REED VALVE
    (5 H.P.)
  • 15
    10-16820 SCREW, REED STOP
    SCREW, REED STOP
  • 16
    8150162 HEAD, CYLINDER BLOCK
    HEAD, CYLINDER BLOCK
  • 17
    26-8M0101649 SEAL, Oil, HEAD
    SEAL, Oil, HEAD
  • 18
    27-16704 GASKET, HEAD
    GASKET, HEAD
  • 19
    10-16705 BOLT, HEAD
    BOLT, HEAD
  • 20
    13-400256 LOCKWASHER, HEAD BOLT
    LOCKWASHER, HEAD BOLT
  • 21
    53-16057 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 22
    28-16053 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
  • 23
    30-16049 BEARING, Ball, CRANKSHAFT
    BEARING, Ball, CRANKSHAFT
  • 24
    8537122 THRUST PLATE
    THRUST PLATE
  • 25
    26-16051 SEAL, Oil, CRANKSHAFT
    SEAL, Oil, CRANKSHAFT
  • 26
    31-16052 BEARING, Roller, CONNECTING ROD
    BEARING, Roller, CONNECTING ROD
  • 27
    779-8M0103755 PISTON
    (STANDARD)
    PISTON
    (STANDARD)
  • 27
    779-8M0103756 PISTON
    (.5MM OVERSIZE)
    PISTON
    (.5MM OVERSIZE)
  • 28
    39-8M0080357 RING, Piston
    (STANDARD)
    RING, Piston
    (STANDARD)
  • 28
    39-8M0080356 RING, Piston
    (.5MM OVERSIZE)
    RING, Piston
    (.5MM OVERSIZE)
  • 29
    41-898101918 PIN, Piston
    PIN, Piston
  • 30
    32-8M0057112 HOSE, (160 mm)
    SN# USA-A838181/Belgium-9542671 & Up
    HOSE, (160 mm)
    SN# USA-A838181/Belgium-9542671 & Up
  • 31
    21-42657A3 CHECK VALVE
    SN# USA-A838181/Belgium-9542671 & Up
    CHECK VALVE
    SN# USA-A838181/Belgium-9542671 & Up
  • 32
    54-95224 CLIP
    SN# USA-A838181/Belgium-9542671 & Up
    CLIP
    SN# USA-A838181/Belgium-9542671 & Up
  • 33
    474-879147T15 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 34
    463-813044 CRANKSHAFT
    CRANKSHAFT
  • 35
    474-879147T15 CRANKSHAFT
    CRANKSHAFT
  • 36
    813046002 PIN, Crank
    PIN, Crank
  • 37
    629-813047 CONNECTING ROD
    CONNECTING ROD
  • 38
    31-813048 BEARING
    BEARING
  • -
    815040T05 POWERHEAD ASSEMBLY, COMPLETE
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
    POWERHEAD ASSEMBLY, COMPLETE
    (4 H.P.) SN# USA-A838180/Belgium-9542670 & Below
  • -
    813024 POWERHEAD ASSEMBLY, COMPLETE
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
    POWERHEAD ASSEMBLY, COMPLETE
    (4 H.P.) SN# USA-A838181/Belgium-9542671 & Up
  • -
    19253 POWERHEAD ASSEMBLY, COMPLETE
    (5 H.P.) SN# USA-A838180/Belgium-9542670 & Below
    POWERHEAD ASSEMBLY, COMPLETE
    (5 H.P.) SN# USA-A838180/Belgium-9542670 & Below
  • -
    813025 POWERHEAD ASSEMBLY, COMPLETE
    (5 H.P.) SN# USA-A838181/Belgium-9542671 & Up
    POWERHEAD ASSEMBLY, COMPLETE
    (5 H.P.) SN# USA-A838181/Belgium-9542671 & Up
