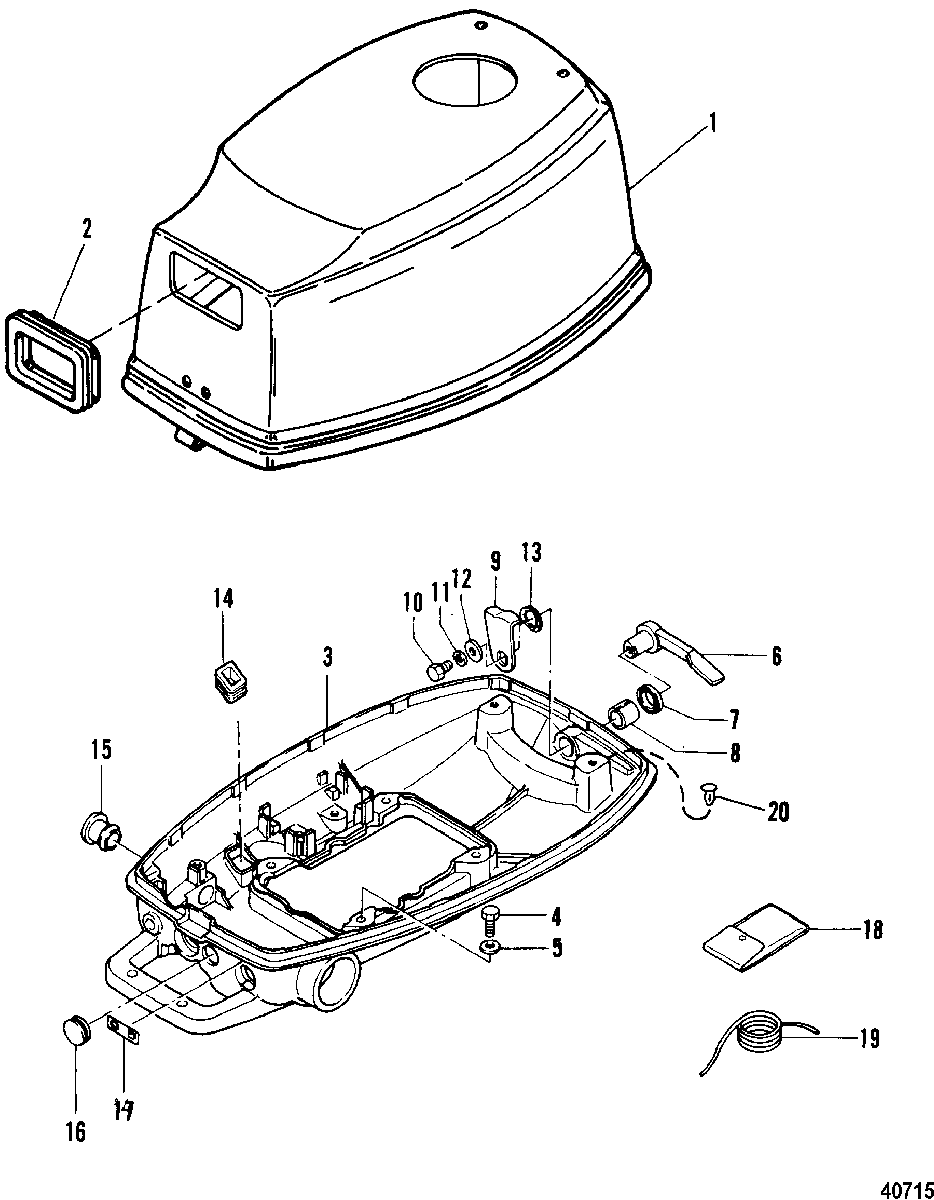

COWLING для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    2189-9626A1 TOP COWL ASSEMBLY
    (4 H.P.)
    TOP COWL ASSEMBLY
    (4 H.P.)
  • 1
    2189-9721 TOP COWL ASSEMBLY
    (5 H.P.)
    TOP COWL ASSEMBLY
    (5 H.P.)
  • 2
    25-162282 GROMMET, TOP COWL
    GROMMET, TOP COWL
  • 3
    2189-825984A2 BOTTOM COWL
    BOTTOM COWL
  • 4
    10-16832 BOLT, BOTTOM COWL
    BOLT, BOTTOM COWL
  • 5
    12-16826 WASHER, Stainless Steel, BOTTOM COWL BOLT
    WASHER, Stainless Steel, BOTTOM COWL BOLT
  • 6
    162181 HOOK LEVER
    HOOK LEVER
  • 7
    26-16219 SEAL, HOOK LEVER
    SEAL, HOOK LEVER
  • 8
    23-16220 BUSHING, HOOK LEVER
    BUSHING, HOOK LEVER
  • 9
    16222 COVER HOOK
    COVER HOOK
  • 10
    10-16223 BOLT, (M6 x 14), COVER HOOK
    BOLT, (M6 x 14), COVER HOOK
  • 11
    13-400256 LOCKWASHER, COVER HOOK BOLT
    LOCKWASHER, COVER HOOK BOLT
  • 12
    12-953921 WASHER, COVER HOOK BOLT
    WASHER, COVER HOOK BOLT
  • 13
    13-16221 WAVE WASHER, COVER HOOK
    WAVE WASHER, COVER HOOK
  • 14
    25-16231 GROMMET, STARTER LOCK ROD
    GROMMET, STARTER LOCK ROD
  • 15
    25-16225 GROMMET, THROTTLE LEVER
    GROMMET, THROTTLE LEVER
  • 16
    25-16226 GROMMET, CARBURETOR DRAIN
    GROMMET, CARBURETOR DRAIN
  • 17
    37-16227 DECAL, Fuel Cock
    DECAL, Fuel Cock
  • 18
    91-16229 TOOL KIT
    TOOL KIT
  • 19
    50-16230 SAFETY ROPE
    SAFETY ROPE
  • 20
    19-18670 PLUG
    (5 H.P.)
    PLUG
    (5 H.P.)
