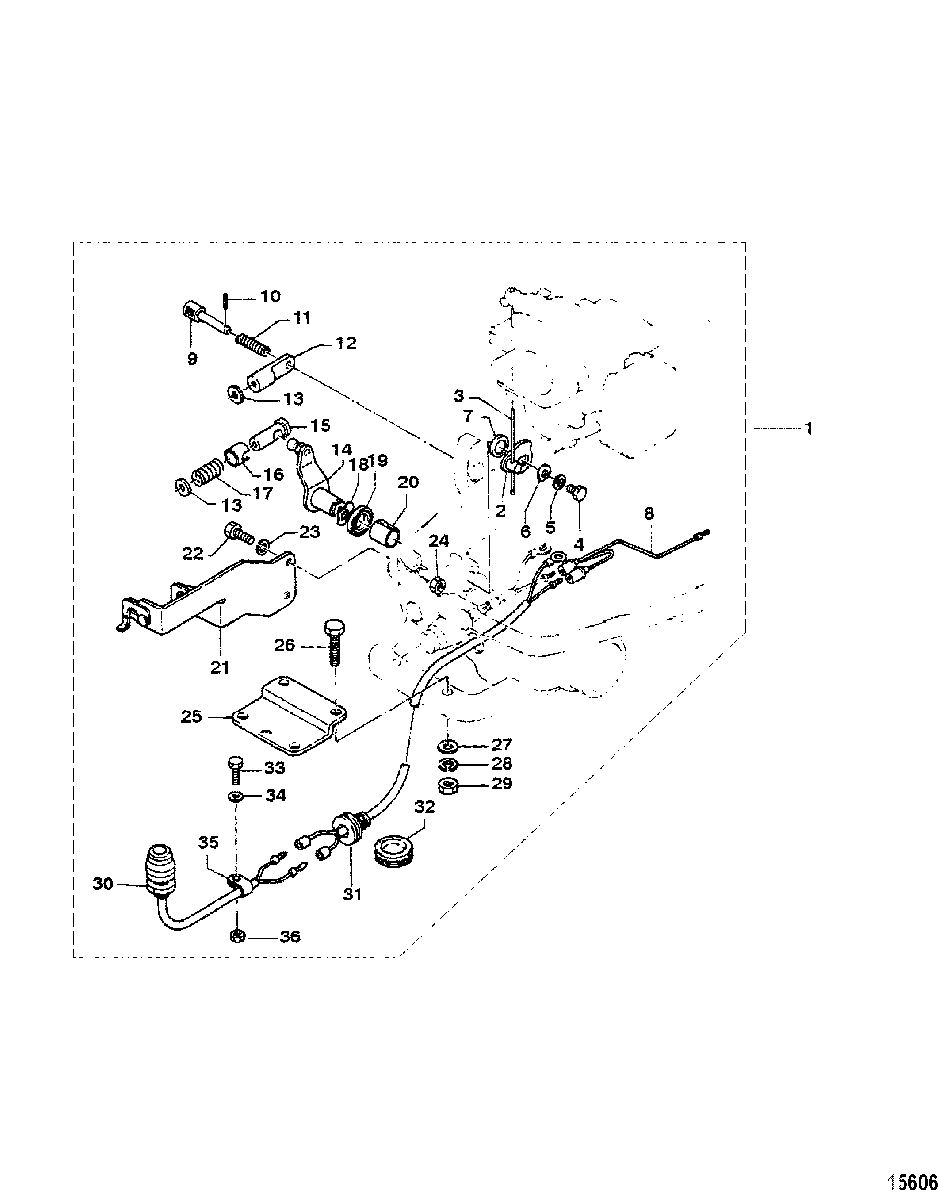

REMOTE CONTROL ATTACHING KIT для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153

  • №
    Артикул
    Название
  • 1
    16840A2 ATTACHING KIT, Remote Control
    ATTACHING KIT, Remote Control
  • 2
    16848 LEVER, THROTTLE WIRE
    LEVER, THROTTLE WIRE
  • 3
    17034 WIRE, Throttle
    WIRE, Throttle
  • 4
    10-16223 BOLT, (M6 x 14), THROTTLE WIRE LEVER
    BOLT, (M6 x 14), THROTTLE WIRE LEVER
  • 5
    13-400256 LOCKWASHER, THROTTLE WIRE LEVER BOLT
    LOCKWASHER, THROTTLE WIRE LEVER BOLT
  • 6
    12-953921 WASHER, THROTTLE WIRE LEVER BOLT
    WASHER, THROTTLE WIRE LEVER BOLT
  • 7
    23-16849 COLLAR, THROTTLE WIRE LEVER
    COLLAR, THROTTLE WIRE LEVER
  • 8
    84-17035 HARNESS ASSEMBLY (DUEL STOP SWITCH)
    HARNESS ASSEMBLY (DUEL STOP SWITCH)
  • 9
    17-17031 PIN, Lock
    PIN, Lock
  • 10
    17-17033 PIN, LOCK PIN
    PIN, LOCK PIN
  • 11
    24-17032 SPRING, LOCK PIN
    SPRING, LOCK PIN
  • 12
    17030 SLEEVE
    SLEEVE
  • 13
    12-17029 WASHER, CAP SPRING
    WASHER, CAP SPRING
  • 14
    16847 LEVER, Throttle
    LEVER, Throttle
  • 15
    17026 BRACKET
    BRACKET
  • 16
    17027 CAP, BRACKET
    CAP, BRACKET
  • 17
    24-17028 SPRING, BRACKET CAP
    SPRING, BRACKET CAP
  • 18
    13-16221 WAVE WASHER, THROTTLE LEVER
    WAVE WASHER, THROTTLE LEVER
  • 19
    26-16219 SEAL, THROTTLE LEVER
    SEAL, THROTTLE LEVER
  • 20
    23-16220 BUSHING, THROTTLE LEVER
    BUSHING, THROTTLE LEVER
  • 21
    17023 BRACKET
    BRACKET
  • 22
    10-16832 BOLT, (M6 x 16), BRACKET
    BOLT, (M6 x 16), BRACKET
  • 23
    13-400256 LOCKWASHER, BRACKET BOLT
    LOCKWASHER, BRACKET BOLT
  • 24
    11-400212 NUT, BRACKET BOLT
    NUT, BRACKET BOLT
  • 25
    17024 PLATE, Steering Hook
    PLATE, Steering Hook
  • 26
    10-4000354 BOLT, PLATE
    BOLT, PLATE
  • 27
    12-16192 WASHER, PLATE BOLT
    WASHER, PLATE BOLT
  • 28
    13-17025 LOCKWASHER, PLATE BOLT
    LOCKWASHER, PLATE BOLT
  • 29
    11-400213 NUT, PLATE BOLT
    NUT, PLATE BOLT
  • 30
    87-823037A2 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 31
    84-17162 HARNESS ASSEMBLY (5.9M)
    HARNESS ASSEMBLY (5.9M)
  • 32
    25-16226 GROMMET, STOP SWITCH HOLE
    GROMMET, STOP SWITCH HOLE
  • 33
    10-17174 BOLT, STOP SWITCH CLAMP
    BOLT, STOP SWITCH CLAMP
  • 34
    12-8M0108373 WASHER, Stainless Steel, STOP SWITCH CLAMP BOLT
    WASHER, Stainless Steel, STOP SWITCH CLAMP BOLT
  • 35
    54-17169 CLAMP, STOP SWITCH
    CLAMP, STOP SWITCH
  • 36
    11-16081 NUT, Stainless Steel, STOP SWITCH CLAMP BOLT
    NUT, Stainless Steel, STOP SWITCH CLAMP BOLT
