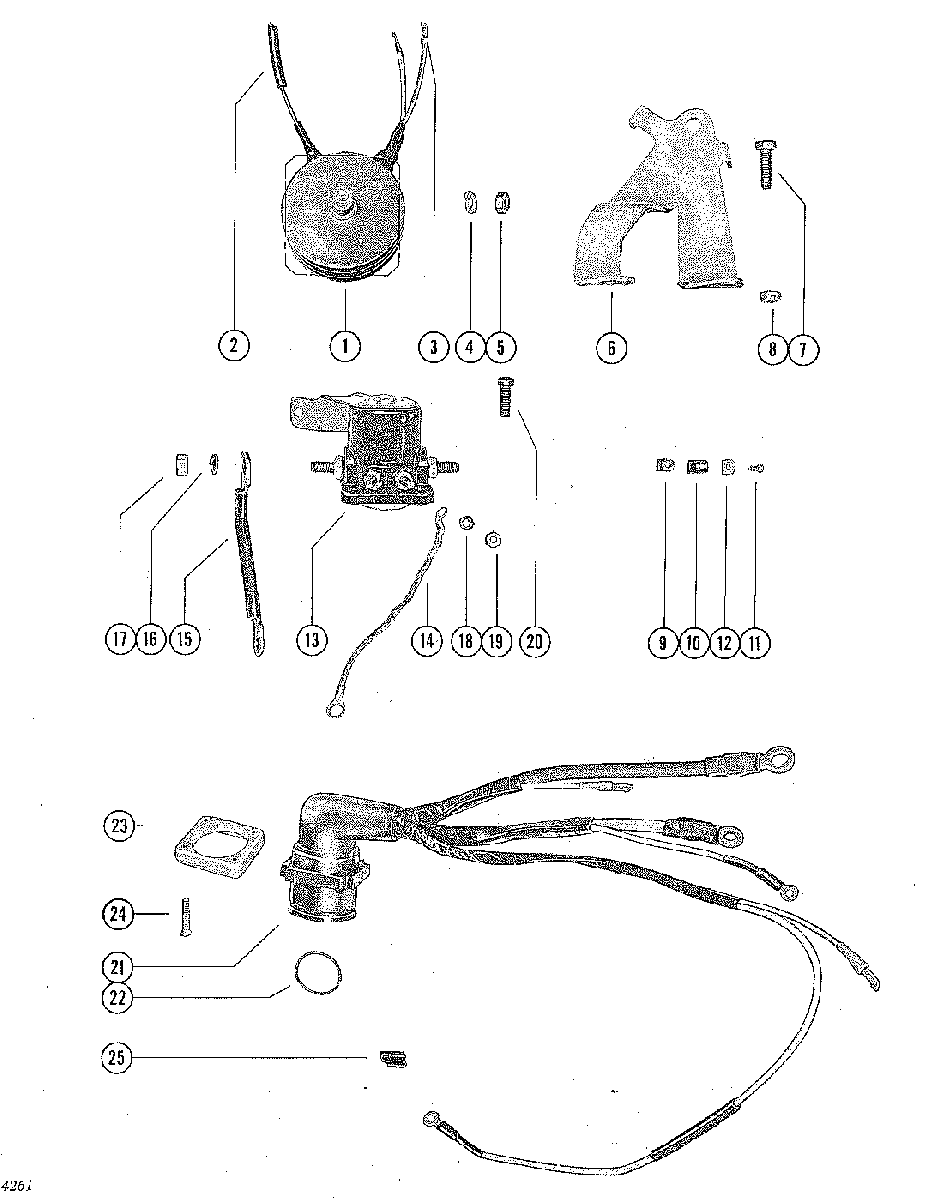

RECTIFIER, STARTER SOLENOID AND WIRING HARNESS для Mercury - 400 1279685 THRU 1476509
-
№АртикулНазвание
-
132177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
232-26693A1 SLEEVE, RECTIFIER LEAD (RED)SLEEVE, RECTIFIER LEAD (RED)
-
322647 DISCONNECT, KNIFE SPLICE - RECTIFIER LEAD WIRESDISCONNECT, KNIFE SPLICE - RECTIFIER LEAD WIRES
-
413-26993 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
511-21929 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
628597 BRACKET, RECTIFIER MOUNTINGBRACKET, RECTIFIER MOUNTING
-
710-21091 SCREW, RECTIFIER BRACKET TO BOTTOM COWLSCREW, RECTIFIER BRACKET TO BOTTOM COWL
-
811-24652 NUT, BRACKET MOUNTING SCREWNUT, BRACKET MOUNTING SCREW
-
954-24836 CLAMP, LEAD WIRE TO RECTIFIER BRACKET - UPPER (1/4)CLAMP, LEAD WIRE TO RECTIFIER BRACKET - UPPER (1/4)
-
1054-22740 CLAMP, LEAD WIRE TO RECTIFIER BRACKET - LOWER (3/8)CLAMP, LEAD WIRE TO RECTIFIER BRACKET - LOWER (3/8)
-
1110-8M0113176 SCREW, LEAD WIRE CLAMP TO BRACKETSCREW, LEAD WIRE CLAMP TO BRACKET
-
128M0084613 "D" WASHER, CLAMP FASTENING SCREW"D" WASHER, CLAMP FASTENING SCREW
-
1332445A1 SOLENOID, STARTERSOLENOID, STARTER
-
1428016A1 GROUND STRAP ASSEMBLY, SOLENOID TO STARTERGROUND STRAP ASSEMBLY, SOLENOID TO STARTER
-
1584-93389A12 WIRE, STARTER TO STARTER SOLENOIDWIRE, STARTER TO STARTER SOLENOID
-
1613-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)LOCKWASHER, SOLENOID TERMINAL (5/16)
-
1711-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16)NUT, SOLENOID TERMINAL - INSIDE (5/16)
-
1711-26062 NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16)NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16)
-
1813-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
1911-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2010-29238 SCREW, SOLENOID TO STARTER MOTORSCREW, SOLENOID TO STARTER MOTOR
-
2133401 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2224-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2326079A2 PLATE, BACKING - WIRING HARNESSPLATE, BACKING - WIRING HARNESS
-
2410-45893 SCREW, BACKING PLATE TO BOTTOM COWLSCREW, BACKING PLATE TO BOTTOM COWL
-
2554-22783 "S" CLIP, WIRING HARNESS LEADS TO BOTTOM COWL"S" CLIP, WIRING HARNESS LEADS TO BOTTOM COWL
