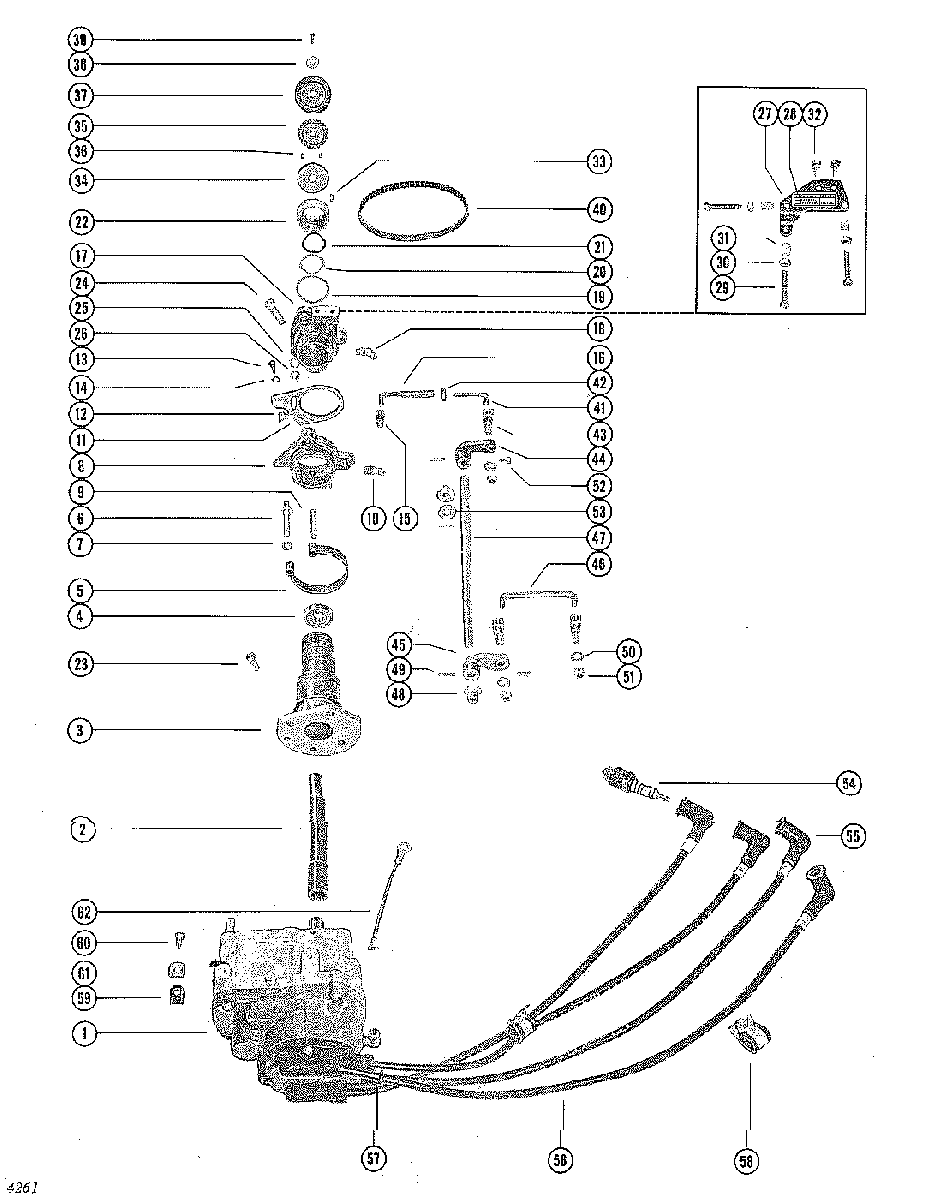

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 400 1279685 THRU 1476509

  • №
    Артикул
    Название
  • 1
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-3)
    MAGNETO ASSEMBLY, COMPLETE (4D-3)
  • 2
    45-27951 SHAFT, MAGNETO DRIVE
    SHAFT, MAGNETO DRIVE
  • -
    29321A7 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
    MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
  • 3
    39560A1 MAGNETO PILOT ASSEMBLY
    MAGNETO PILOT ASSEMBLY
  • 4
    30-20066 BEARING, BALL - MAGNETO PILOT
    BEARING, BALL - MAGNETO PILOT
  • 5
    24-27944 SPRING, HORSESHOE - MAGNETO PILOT
    SPRING, HORSESHOE - MAGNETO PILOT
  • 6
    17-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOT
    PIN, ANCHOR - HORSESHOE SPRING TO PILOT
  • 7
    12-29245 WASHER, HORSESHOE SPRING TO ANCHOR PIN
    WASHER, HORSESHOE SPRING TO ANCHOR PIN
  • 8
    27946A1 ECONOMISER COLLAR AND PIN ASSEMBLY
    ECONOMISER COLLAR AND PIN ASSEMBLY
  • 9
    17-27961 PIN, ECONOMISER COLLAR - SPRING RETAINER
    PIN, ECONOMISER COLLAR - SPRING RETAINER
  • 10
    22-25094 FITTING, GREASE - ECONOMISER COLLAR
    FITTING, GREASE - ECONOMISER COLLAR
  • 11
    38230A1 THROTTLE ACTUATOR ASSEMBLY
    THROTTLE ACTUATOR ASSEMBLY
  • 12
    23-26602 BUSHING, NYLON - THROTTLE ACTUATOR
    BUSHING, NYLON - THROTTLE ACTUATOR
  • 13
    10-20665 SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
    SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
  • 14
    12-847883 WASHER, THROTTLE ACTUATOR SCREW
    WASHER, THROTTLE ACTUATOR SCREW
  • 15
    27947 SWIVEL, LINKAGE - ECONOMISER COLLAR
    SWIVEL, LINKAGE - ECONOMISER COLLAR
  • 16
    25996A1 SWIVEL, AND LINK ROD ASSEMBLY
    SWIVEL, AND LINK ROD ASSEMBLY
  • 17
    66856A1 ADAPTOR, MAGNETO
    ADAPTOR, MAGNETO
  • 18
    22-25094 FITTING, GREASE - MAGNETO ADAPTOR
    FITTING, GREASE - MAGNETO ADAPTOR
  • 19
    12-27939 WASHER, MAGNETO PILOT
    WASHER, MAGNETO PILOT
  • 20
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 21
    13-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSION
    WASHER, WAVE - MAGNETO BALL BEARING TENSION
  • 23
    10-30110 SCREW, ADAPTOR AND PILOT TO MAGNETO
    SCREW, ADAPTOR AND PILOT TO MAGNETO
  • 24
    10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE
    SCREW, ADAPTOR AND PILOT TO CRANKCASE
  • 25
    12-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
    WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 26
    11-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
    NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
  • 27
    53458 PLATE, THROTTLE STOP
    PLATE, THROTTLE STOP
  • 28
    37-29315 DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
    DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
  • 39
    10-24933 SCREW, THROTTLE STOP ADJUSTING
    SCREW, THROTTLE STOP ADJUSTING
  • 30
    11-20088 NUT, THROTTLE STOP ADJUSTING SCREW
    NUT, THROTTLE STOP ADJUSTING SCREW
  • 31
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 32
    10-69035 SCREW, THROTTLE STOP PLATE TO ADAPTOR
    SCREW, THROTTLE STOP PLATE TO ADAPTOR
  • 33
    28-28657 KEY, MAGNETO DRIVING
    KEY, MAGNETO DRIVING
  • --
    23-27957 SPACER, PULLEY TO MAGNETO ADAPTOR CAP (OLD STYLE)
    SPACER, PULLEY TO MAGNETO ADAPTOR CAP (OLD STYLE)
  • --
    29783A2 PULLEY, DRIVEN (OLD STYLE)
    PULLEY, DRIVEN (OLD STYLE)
  • --
    20136 FLANGE, DRIVEN PULLEY (OLD STYLE)
    FLANGE, DRIVEN PULLEY (OLD STYLE)
  • 34
    29784 HUB, DRIVEN PULLEY (NEW STYLE - SEE NOTE BELOW)
    HUB, DRIVEN PULLEY (NEW STYLE - SEE NOTE BELOW)
  • 35
    29783A1 DRIVEN PULLEY ASSEMBLY (NEW STYLE - SEE NOTE BELOW)
    DRIVEN PULLEY ASSEMBLY (NEW STYLE - SEE NOTE BELOW)
  • 36
    17-24873 ROLL PIN, FLANGE LOCATING (NEW STYLE - SEE NOTE BELOW)
    ROLL PIN, FLANGE LOCATING (NEW STYLE - SEE NOTE BELOW)
  • 37
    29785 FLANGE, DRIVEN PULLEY (NEW STYLE - SEE NOTE BELOW)
    FLANGE, DRIVEN PULLEY (NEW STYLE - SEE NOTE BELOW)
  • 38
    12-20138 WASHER, PULLEY CLAMPING SCREW
    WASHER, PULLEY CLAMPING SCREW
  • 39
    10-32228 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 40
    20140 BELT, TIMING
    BELT, TIMING
  • 41
    27949 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 42
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 43
    27948 SWIVEL, UPPER AND LOWER LINK RODS
    SWIVEL, UPPER AND LOWER LINK RODS
  • 44
    28061 LEVER, LINKAGE - UPPER
    LEVER, LINKAGE - UPPER
  • 45
    27941 LEVER, LINKAGE - LOWER
    LEVER, LINKAGE - LOWER
  • 46
    F17950 ROD, LINK - LOWER
    ROD, LINK - LOWER
  • 47
    27940 SHAFT, VERTICAL
    SHAFT, VERTICAL
  • 48
    23-22981 BUSHING, NYLON - VERTICAL SHAFT
    BUSHING, NYLON - VERTICAL SHAFT
  • 49
    17-25870 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
    ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
  • 50
    12-29245 WASHER, UPPER AND LOWER SWIVEL
    WASHER, UPPER AND LOWER SWIVEL
  • 51
    11-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
    NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
  • 52
    10-25781 SCREW, SET - LINKAGE LEVER
    SCREW, SET - LINKAGE LEVER
  • 53
    12-25866 WASHER, VERTICAL SHAFT - CENTER
    WASHER, VERTICAL SHAFT - CENTER
  • 54
    33-813469 SPARK PLUG
    SPARK PLUG
  • 55
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 57
    25-25429 "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
    "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
  • 58
    54-29425 CLIP, HIGH TENSION LEAD CABLE FASTENING
    CLIP, HIGH TENSION LEAD CABLE FASTENING
  • 59
    54-25231 CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO
    CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO
  • 60
    10-20401 SCREW, LEAD CLIP TO MAGNETO
    SCREW, LEAD CLIP TO MAGNETO
  • 61
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 62
    394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
    GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
