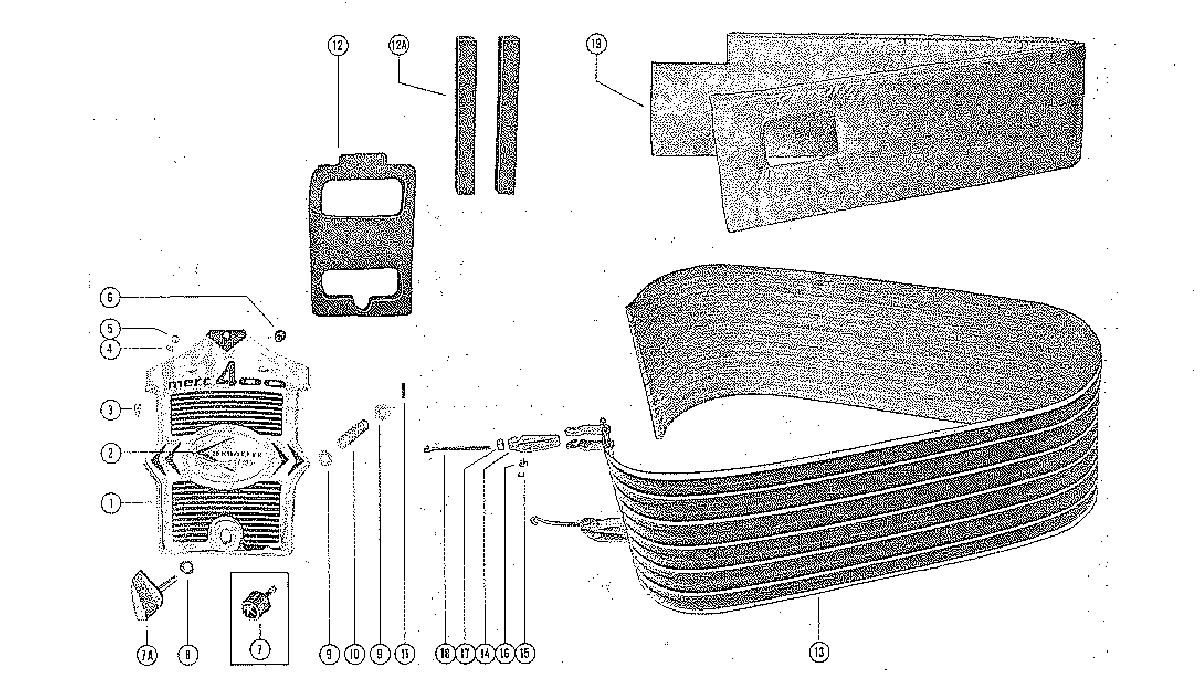

COWLING AND FRONT COVER для Mercury - 400 1279685 THRU 1476509
-
№АртикулНазвание
-
12104-2654A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
12104-2654A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVER (SEE NOTE BELOW)EMBLEM, FRONT COVER (SEE NOTE BELOW)
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER - FRONT COVER BRACKETBUMPER, RUBBER - FRONT COVER BRACKET
-
710-29552 SCREW, COVER FASTENINGSCREW, COVER FASTENING
-
812-26162 WASHER, COVER FASTENING SCREW (RUBBER)WASHER, COVER FASTENING SCREW (RUBBER)
-
912-27897 WASHER, COVER FASTENING SCREW (NYLON)WASHER, COVER FASTENING SCREW (NYLON)
-
7A56848 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-26702 WASHER, COVER FASTENING KNOB (NYLON)WASHER, COVER FASTENING KNOB (NYLON)
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-30772 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1229343 BLANKET, SOUND ABSORBING - FRONT COVERBLANKET, SOUND ABSORBING - FRONT COVER
-
12A31095 STRIP, RUBBER - COWL FRONT COVERSTRIP, RUBBER - COWL FRONT COVER
-
132106-2353A2 WRAP AROUND COWL ASSEMBLY
ORDER CORRECT REPLACEMENT HANDLE, SWIVEL OR HOOK ACCORDING TO THEIR SIZE (#8 OR #10). BOTH SIZES WERE USEDWRAP AROUND COWL ASSEMBLY
ORDER CORRECT REPLACEMENT HANDLE, SWIVEL OR HOOK ACCORDING TO THEIR SIZE (#8 OR #10). BOTH SIZES WERE USED -
1421060 HANDLE, COWL LATCH (#8)HANDLE, COWL LATCH (#8)
-
1446785A1 HANDLE, COWL LATCH (#10)HANDLE, COWL LATCH (#10)
-
1553-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1617-21057 PIN, HINGE - COWL LATCH HANDLEPIN, HINGE - COWL LATCH HANDLE
-
1725690 SWIVEL, COWL LATCH (#8)SWIVEL, COWL LATCH (#8)
-
1746785A1 SWIVEL, COWL LATCH (#10)SWIVEL, COWL LATCH (#10)
-
1825691 HOOK, COWL LATCH FASTENING (#8)HOOK, COWL LATCH FASTENING (#8)
-
1830413 HOOK, COWL LATCH FASTENING (#10)HOOK, COWL LATCH FASTENING (#10)
-
1924825 BLANKET, SOUND ABSORBING - WRAP AROUND COWLBLANKET, SOUND ABSORBING - WRAP AROUND COWL
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
