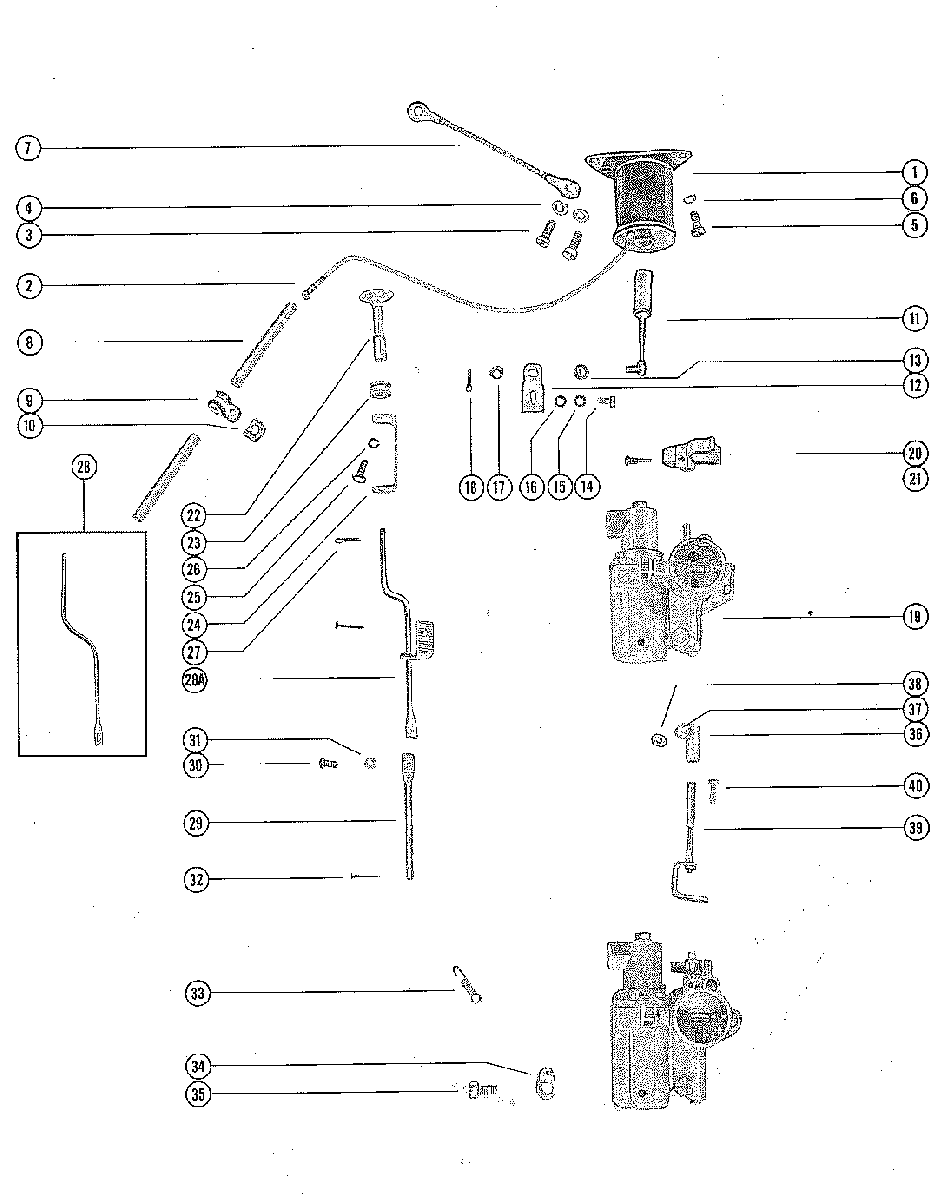

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 400 1279685 THRU 1476509

  • №
    Артикул
    Название
  • 1
    31593 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 2
    22647 DISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
    DISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
  • 3
    10-20540 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 4
    13-26992 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 5
    10-24773 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 6
    13-26991 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 7
    26716A1 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
    GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
  • 8
    32-26693A1 SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
    SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
  • 9
    54-24836 CLAMP, CHOKE WIRE TO STARTER SOLENOID
    CLAMP, CHOKE WIRE TO STARTER SOLENOID
  • 10
    8M0084613 "D" WASHER, CHOKE WIRE CLAMP
    "D" WASHER, CHOKE WIRE CLAMP
  • 11
    27031A1 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 12
    27710 ADAPTOR PLATE, CHOKE PLUNGER
    ADAPTOR PLATE, CHOKE PLUNGER
  • 13
    25-26633 GROMMET, ADAPTOR PLATE
    GROMMET, ADAPTOR PLATE
  • 14
    10-20055 SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
    SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
  • 15
    13-26996 LOCKWASHER, ADAPTOR PLATE FASTENING SCREW
    LOCKWASHER, ADAPTOR PLATE FASTENING SCREW
  • 16
    12-26014 WASHER, ADAPTOR PLATE FASTENING SCREW
    WASHER, ADAPTOR PLATE FASTENING SCREW
  • 17
    12-26014 WASHER, CHOKE SOLENOID LINK
    WASHER, CHOKE SOLENOID LINK
  • 18
    18-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENING
    COTTER PIN, CHOKE SOLENOID LINK FASTENING
  • 19
    1333-1387 CARBURETOR ASSEMBLY, COMPLETE
    SERIAL 00000000-01307410
    CARBURETOR ASSEMBLY, COMPLETE
    SERIAL 00000000-01307410
  • 19
    1333-1700 CARBURETOR ASSEMBLY, COMPLETE
    SERIAL 01307411-09999999
    CARBURETOR ASSEMBLY, COMPLETE
    SERIAL 01307411-09999999
  • 20
    27917 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 21
    1395-6027 SCREW, SET - CLUSTER TO THROTTLE LEVER
    SCREW, SET - CLUSTER TO THROTTLE LEVER
  • 22
    20663 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 22
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 23
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 24
    22462 "U" LINK, CHOKE KNOB TO CHOKE ROD
    "U" LINK, CHOKE KNOB TO CHOKE ROD
  • 25
    10-69022 SCREW, "U" LINK TO CHOKE KNOB
    SCREW, "U" LINK TO CHOKE KNOB
  • 26
    13-26996 LOCKWASHER, "U" LINK FASTENING SCREW
    LOCKWASHER, "U" LINK FASTENING SCREW
  • 27
    18-26953 COTTER PIN, CHOKE LEVER AND ROD FASTENING
    COTTER PIN, CHOKE LEVER AND ROD FASTENING
  • 28
    28977 CHOKE ROD - UPPER
    CHOKE ROD - UPPER
  • 28A
    28972A1 CHOKE ROD AND BRACKET ASSEMBLY - UPPER
    CHOKE ROD AND BRACKET ASSEMBLY - UPPER
  • 29
    27918 CHOKE ROD - LOWER
    CHOKE ROD - LOWER
  • 30
    10-30096 SCREW, UPPER CHOKE ROD TO LOWER CHOKE ROD
    SCREW, UPPER CHOKE ROD TO LOWER CHOKE ROD
  • 31
    12-27882 WASHER, UPPER CHOKE ROD FASTENING SCREW
    WASHER, UPPER CHOKE ROD FASTENING SCREW
  • 32
    17-25391 RIVET, CHOKE ROD TO THROTTLE SHAFT
    RIVET, CHOKE ROD TO THROTTLE SHAFT
  • 33
    24-20649 SPRING, CHOKE ROD TO RETAINER
    SPRING, CHOKE ROD TO RETAINER
  • 33
    24-28965 SPRING, CHOKE ROD TO RETAINER
    SPRING, CHOKE ROD TO RETAINER
  • 34
    28651 RETAINER, CHOKE RED SPRING
    RETAINER, CHOKE RED SPRING
  • 34
    27711 RETAINER, CHOKE ROD SPRING
    RETAINER, CHOKE ROD SPRING
  • 35
    10-28713 SCREW, RETAINER TO LOWER CARBURETOR
    SCREW, RETAINER TO LOWER CARBURETOR
  • 36
    27870 CLAMP, THROTTLE PICKUP BRACKET
    CLAMP, THROTTLE PICKUP BRACKET
  • 37
    10-69022 SCREW, CLAMP TO THROTTLE PICKUP BRACKET
    SCREW, CLAMP TO THROTTLE PICKUP BRACKET
  • 38
    12-30164 WAHSER, THROTTLE PICKUP BRACKET CLAMPING SCREW
    WAHSER, THROTTLE PICKUP BRACKET CLAMPING SCREW
  • 39
    28007A1 BRACKET ASSEMBLY, THROTTLE PICKUP
    BRACKET ASSEMBLY, THROTTLE PICKUP
  • 40
    10-29239 SCREW, THROTTLE BRACKET MOUNTING
    SCREW, THROTTLE BRACKET MOUNTING
