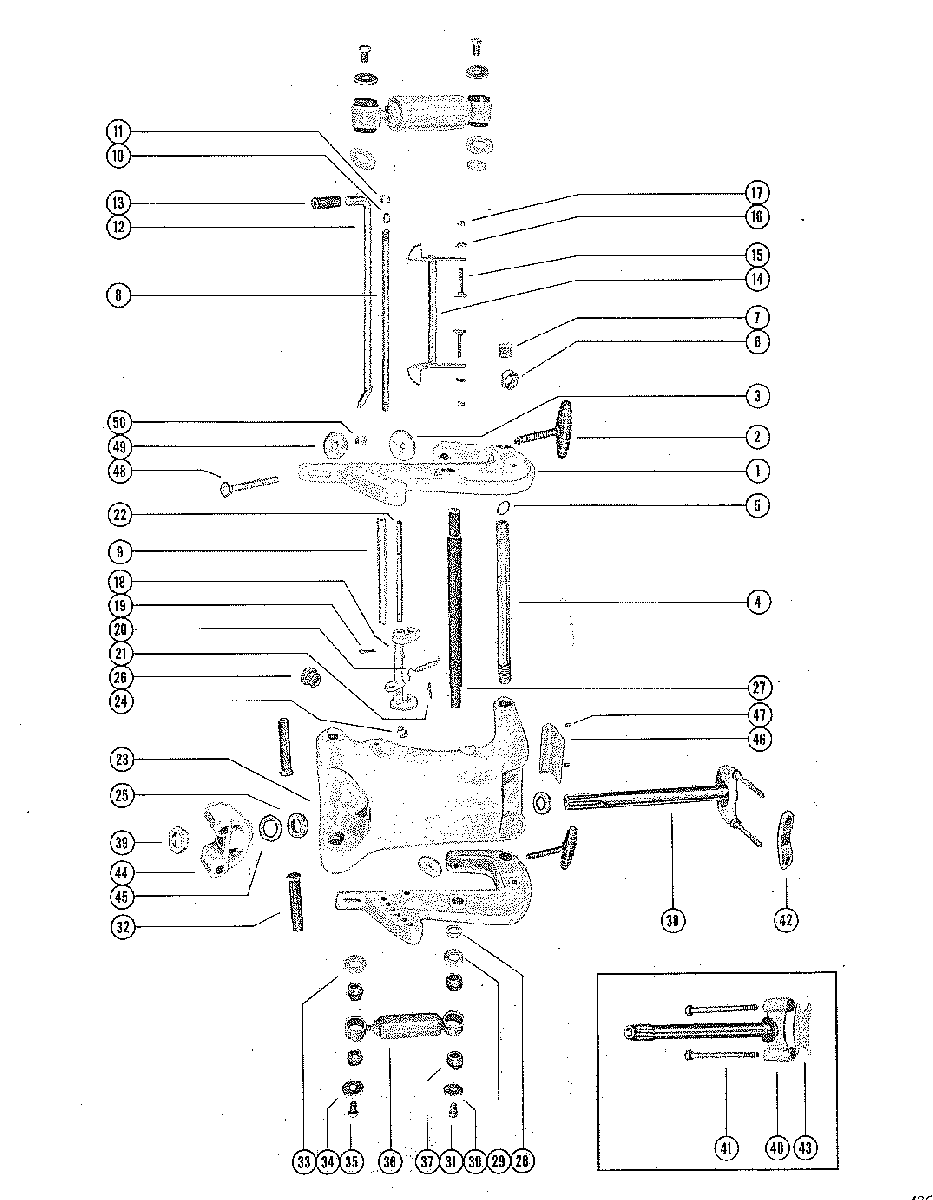

CLAMP AND SWIVEL BRACKET для Mercury - 400 1279685 THRU 1476509

  • №
    Артикул
    Название
  • 1
    1440-1466A1 CLAMP BRACKET ASSEMBLY (SEE NOTE (1) BELOW)
    CLAMP BRACKET ASSEMBLY (SEE NOTE (1) BELOW)
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    28122 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    15-25600 SHIM, CLAMP BRACKET TO SWIVEL BRACKET
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET
  • 6
    11-8M2014641 NUT, TILT TUBE
    NUT, TILT TUBE
  • 7
    25606 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPER
    SLEEVE, RUBBER - TILT LOCK PIN BUMPER
  • 14
    30200A1 TILT STOP LEVER ASSEMBLY
    TILT STOP LEVER ASSEMBLY
  • 15
    10-28339 SCREW, TILT STOP LEVER ANCHOR
    SCREW, TILT STOP LEVER ANCHOR
  • 16
    13-20846 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 17
    11-24652 NUT, LEVER ANCHOR SCREW
    NUT, LEVER ANCHOR SCREW
  • 18
    26903A3 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 19
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 20
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 21
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 22
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 23
    1444-1801A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 24
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 25
    26-32911 OIL SEAL (2 OIL SEALS REQUIRED ON LATER PRODUCTION ENGINES)
    OIL SEAL (2 OIL SEALS REQUIRED ON LATER PRODUCTION ENGINES)
  • 25
    26-32911 OIL SEAL (2 OIL SEALS REQUIRED ON LATER PRODUCTION ENGINES)
    OIL SEAL (2 OIL SEALS REQUIRED ON LATER PRODUCTION ENGINES)
  • 26
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 27
    55-28415 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 28
    23-28024 SPACER, UPPER BUSHING TO CLAMP BRACKET
    SPACER, UPPER BUSHING TO CLAMP BRACKET
  • 29
    12-28025 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 30
    12-28420 WAHSER, UPPER BUSHING RETAINER (OUTER)
    WAHSER, UPPER BUSHING RETAINER (OUTER)
  • 31
    10-28449 BOLT, NYLOCK - UPPER SHOCK MOUNTING PIN
    BOLT, NYLOCK - UPPER SHOCK MOUNTING PIN
  • 32
    55-28413 LOWER SHOCK MOUNTING
    LOWER SHOCK MOUNTING
  • 33
    23-28032 SPACER, LOWER BUSHING TO SWIVEL BRACKET
    SPACER, LOWER BUSHING TO SWIVEL BRACKET
  • 34
    12-28420 WASHER, LOWER BUSHING RETAINER (OUTER)
    WASHER, LOWER BUSHING RETAINER (OUTER)
  • 35
    10-28449 BOLT, NYLOCK - LOWER SHOCK MOUNTING PIN
    BOLT, NYLOCK - LOWER SHOCK MOUNTING PIN
  • 36
    55-28054 SHOCK ABSORBER
    SHOCK ABSORBER
  • 37
    23-28055 BUSHING, RUBBER - SHOCK ABSORBER
    BUSHING, RUBBER - SHOCK ABSORBER
  • 38
    17-28418A4 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SERIAL 00000000-01363346
    SWIVEL PIN AND TOP YOKE ASSEMBLY
    SERIAL 00000000-01363346
  • 39
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 40
    17-28418A4 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SERIAL 01363347-09999999
    SWIVEL PIN AND TOP YOKE ASSEMBLY
    SERIAL 01363347-09999999
  • 39
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 41
    10-33986 BOLT, UPPER MOUNTS TO SWIVEL PIN
    BOLT, UPPER MOUNTS TO SWIVEL PIN
  • 42
    30711 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 43
    30711 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 44
    30462A1 BOTTOM YOKE ASSEMBLY (SEE NOTE (2) BELOW
    SERIAL 00000000-01365072
    BOTTOM YOKE ASSEMBLY (SEE NOTE (2) BELOW
    SERIAL 00000000-01365072
  • 44
    30462A1 BOTTOM YOKE ASSEMBLY
    SERIAL 01365072-09999999
    BOTTOM YOKE ASSEMBLY
    SERIAL 01365072-09999999
  • 45
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE
    WASHER, SWIVEL PIN TO BOTTOM YOKE
  • 46
    38-29534 SERIAL PLATE
    SERIAL PLATE
  • 47
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 48
    10-68298 BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM
  • 49
    12-46765 WAHER, CARRIAGE BOLT
    WAHER, CARRIAGE BOLT
  • 50
    11-82670912 NUT, CARRIAGE BOLT
    NUT, CARRIAGE BOLT
