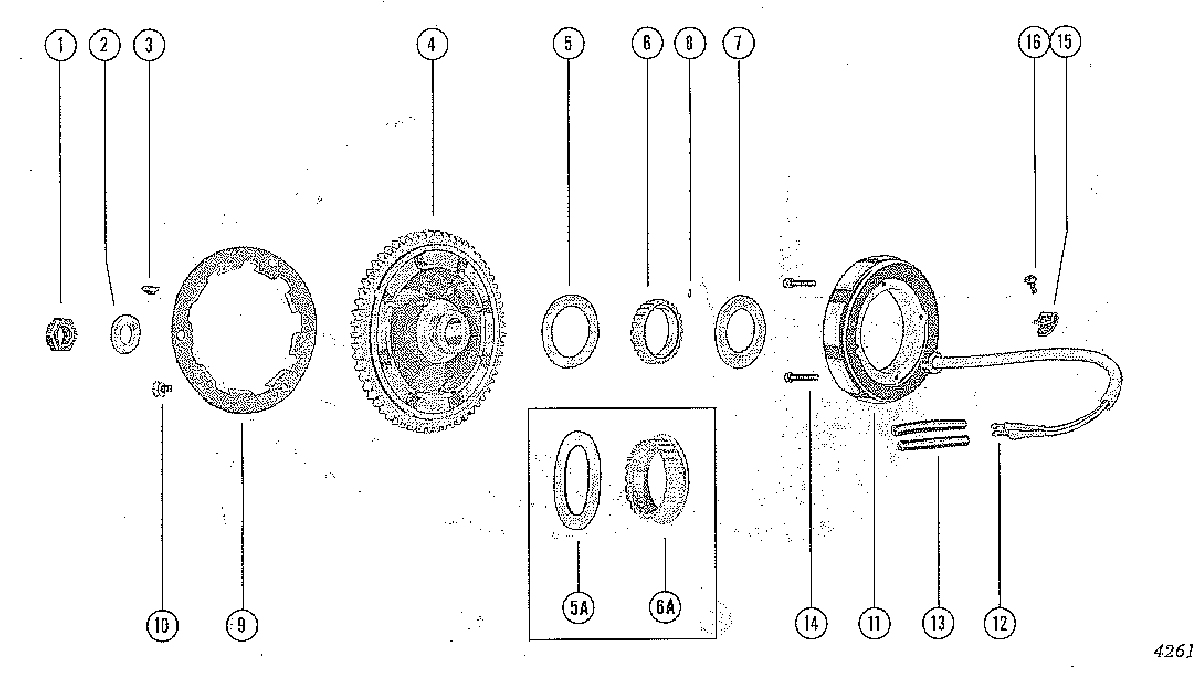

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 400 1279685 THRU 1476509

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-26617 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 4
    223-2402A7 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 4
    215-3289A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 5A
    12-25293 WASHER, PULLY TO FLYWHEEL (SEE NOTE BELOW)
    WASHER, PULLY TO FLYWHEEL (SEE NOTE BELOW)
  • 6A
    22823 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 5
    29788 FLANGE, FLYWHEEL PULLEY (SEE NOTE BELOW)
    FLANGE, FLYWHEEL PULLEY (SEE NOTE BELOW)
  • 6
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 7
    29787 HUB, FLANGE - FLYWHEEL PULLEY
    HUB, FLANGE - FLYWHEEL PULLEY
  • 8
    17-26618 DOWEL PIN, FLYWHEEL PULLEY
    DOWEL PIN, FLYWHEEL PULLEY
  • 9
    50-25263 RATCHET, FLYWHEEL
    RATCHET, FLYWHEEL
  • 10
    10-29238 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 11
    398-1455 STATOR, ALTERNATOR - FLYWHEEL
    STATOR, ALTERNATOR - FLYWHEEL
  • 12
    22647 DISCONNECT, KNIFE SPLICE - STATOR LEAD WIRE
    DISCONNECT, KNIFE SPLICE - STATOR LEAD WIRE
  • 13
    32-26693A1 SLEEVE, RUBBER - STATOR LEAD WIRE
    SLEEVE, RUBBER - STATOR LEAD WIRE
  • 14
    10-68918 SCREW, STATOR TO UPPER END CAP
    SCREW, STATOR TO UPPER END CAP
  • 15
    54-24836 CLIP, STATOR LEAD TO CRANKCASE FLANGE
    CLIP, STATOR LEAD TO CRANKCASE FLANGE
  • 16
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING
    SCREW, STATOR LEAD CLIP FASTENING
