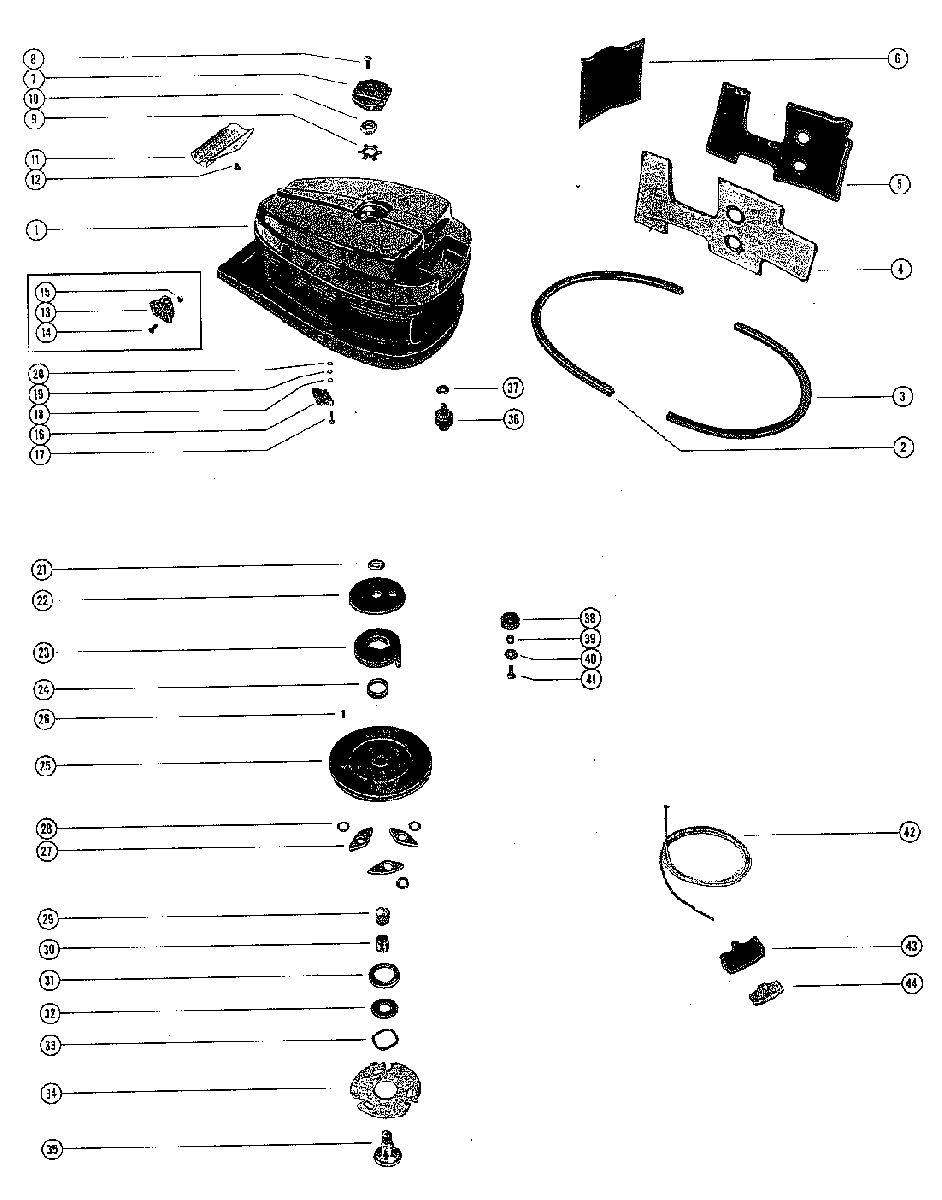

TOP COWL AND STARTER ASSEMBLY для Mercury - 40 (1 CYL.) 2498136 THRU 3296136
-
№АртикулНазвание
-
1NLA TOP COWL (39)
SERIAL 00000000-01865632TOP COWL (39)
SERIAL 00000000-01865632 -
1191-7668A2 TOP COWL (39)(40)
SERIAL 01865633-09999999TOP COWL (39)(40)
SERIAL 01865633-09999999 -
2NLA STRIP, REAR (39)
SERIAL 00000000-01865632STRIP, REAR (39)
SERIAL 00000000-01865632 -
239538 STRIP, REAR(39)(40)
SERIAL 01865633-09999999STRIP, REAR(39)(40)
SERIAL 01865633-09999999 -
3NLA STRIP, FORWARD(39)
SERIAL 00000000-01865632STRIP, FORWARD(39)
SERIAL 00000000-01865632 -
339537 STRIP,FORWARD(39)(40)
SERIAL 01865633-09999999STRIP,FORWARD(39)(40)
SERIAL 01865633-09999999 -
4NLA SOUND BLANKET (STARBOARD)SOUND BLANKET (STARBOARD)
-
5NLA SOUND BLANKET (PORT)SOUND BLANKET (PORT)
-
6NLA SOUND BLANKET (REAR)SOUND BLANKET (REAR)
-
789096 TRIM COVERTRIM COVER
-
810-23618 SCREWSCREW
-
914-20165 TAB WASHERTAB WASHER
-
1011-20166 NUTNUT
-
11NLA SCREENSCREEN
-
1210-62568 SCREWSCREW
-
1330833 BRACKET (PORT) 39
SERIAL 00000000-01865632BRACKET (PORT) 39
SERIAL 00000000-01865632 -
1330834 BRACKET (STARBOARD) 39
SERIAL 00000000-01865632BRACKET (STARBOARD) 39
SERIAL 00000000-01865632 -
1410-37655 SCREW 39
SERIAL 00000000-01865632SCREW 39
SERIAL 00000000-01865632 -
1511-27164 NUT 39
SERIAL 00000000-01865632NUT 39
SERIAL 00000000-01865632 -
1639257 BRACKET (PORT) 39- 40
SERIAL 01865633-09999999BRACKET (PORT) 39- 40
SERIAL 01865633-09999999 -
1639258 BRACKET (STARBOARD) 39- 40
SERIAL 01865633-09999999BRACKET (STARBOARD) 39- 40
SERIAL 01865633-09999999 -
1710-39514 SCREW 39- 40
SERIAL 01865633-09999999SCREW 39- 40
SERIAL 01865633-09999999 -
1812-37998 WASHER 39- 40
SERIAL 01865633-09999999WASHER 39- 40
SERIAL 01865633-09999999 -
19/2012-29245 WASHER 39- 40
SERIAL 01865633-09999999WASHER 39- 40
SERIAL 01865633-09999999 -
2112-21273 WASHER (39)
SERIAL 00000000-01738940WASHER (39)
SERIAL 00000000-01738940 -
2220155 RETAINERRETAINER
-
2324-29340T02 SPRING ASSEMBLYSPRING ASSEMBLY
-
2423-28912 BUSHINGBUSHING
-
2550-93696A2 STARTER SHEEVESTARTER SHEEVE
-
2617-22896 PINPIN
-
2730596 STARTER PAWLSTARTER PAWL
-
2813-36206 WAVE WASHERWAVE WASHER
-
2923-28919 BUSHINGBUSHING
-
3045477A1 SHAFT ASSEMBLY (39)
SERIAL 00000000-01697722SHAFT ASSEMBLY (39)
SERIAL 00000000-01697722 -
3023-61005 SPACER (39)(40)
SERIAL 01697723-09999999SPACER (39)(40)
SERIAL 01697723-09999999 -
3126179 RETAINERRETAINER
-
3212-26180 WASHER (39)
SERIAL 00000000-01697722WASHER (39)
SERIAL 00000000-01697722 -
3212-35559 WASHER (39)(40)
SERIAL 01697723-09999999WASHER (39)(40)
SERIAL 01697723-09999999 -
3313-20160 WAVE WASHERWAVE WASHER
-
3430595 PLATEPLATE
-
35NLA SHAFT (39)
SERIAL 00000000-01697722SHAFT (39)
SERIAL 00000000-01697722 -
3535558 SHAFT (39)(40)
SERIAL 01697723-09999999SHAFT (39)(40)
SERIAL 01697723-09999999 -
3653472 MOUNTMOUNT
-
3712-26907 WASHER (39)
SERIAL 00000000-01738940WASHER (39)
SERIAL 00000000-01738940 -
3855860 PULLEYPULLEY
-
3923-309772 SPACERSPACER
-
4012-22887 WASHERWASHER
-
4110-28789 SCREWSCREW
-
4250-12066Q10 STARTER ROPESTARTER ROPE
-
4330782 HANDLEHANDLE
-
4479470A1 RETAINER ASSEMBLYRETAINER ASSEMBLY
