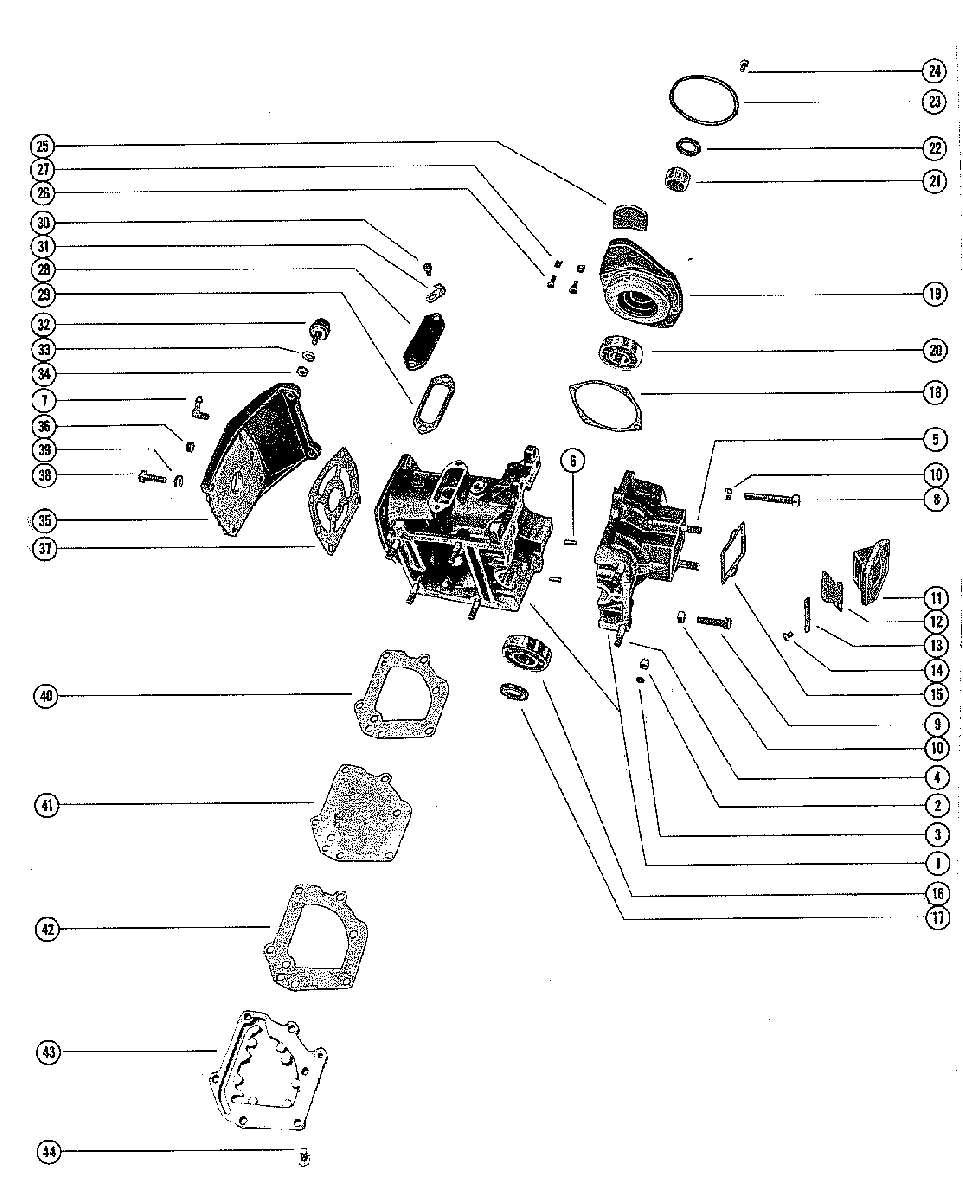

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 40 (1 CYL.) 2498136 THRU 3296136

  • №
    Артикул
    Название
  • 1
    NLA CYLINDER BLOCK (39)
    SERIAL 00000000-02098036
    CYLINDER BLOCK (39)
    SERIAL 00000000-02098036
  • 1
    843-8694A3 CYLINDER BLOCK (39)(40)
    SERIAL 02098037-09999999
    CYLINDER BLOCK (39)(40)
    SERIAL 02098037-09999999
  • 2
    21-30819A1 CHECK VALVE (39)(40)
    SERIAL 00000000-02771621
    CHECK VALVE (39)(40)
    SERIAL 00000000-02771621
  • 2
    21-28481A1 CHECK VALVE 40
    SERIAL 02771622-09999999
    CHECK VALVE 40
    SERIAL 02771622-09999999
  • 3
    NLA WELCH PLUG
    SERIAL 02771622-09999999
    WELCH PLUG
    SERIAL 02771622-09999999
  • 4
    16-66021 STUD
    STUD
  • 5
    16-46431 STUD
    STUD
  • 6
    17-8M0084726 DOWEL PIN
    DOWEL PIN
  • 7
    22-996642 ELBOW (90 )(40-SER.33028361 & UP)
    ELBOW (90 )(40-SER.33028361 & UP)
  • 8
    NLA SCREW (1-3/4")
    SCREW (1-3/4")
  • 9
    10-64278 SCREW (1")
    SCREW (1")
  • 10
    11-20184 NUT
    NUT
  • 11
    70726 REED BLOCK
    REED BLOCK
  • 12
    34-35836 REED, INLET VALVE
    REED, INLET VALVE
  • 13
    34-22215 RETAINER
    RETAINER
  • 14
    10-28430 SCREW
    SCREW
  • 15
    27-357391 GASKET
    GASKET
  • 16
    30-72961 BALL BEARING
    BALL BEARING
  • 17
    26-31411 OIL SEAL (39)(40)
    SERIAL 00000000-02771621
    OIL SEAL (39)(40)
    SERIAL 00000000-02771621
  • 17
    26-56397 OIL SEAL (40)
    SERIAL 32771622-09999999
    OIL SEAL (40)
    SERIAL 32771622-09999999
  • 18
    15-31412A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 19
    NLA BEARING HOUSING ASSEMBLY
    BEARING HOUSING ASSEMBLY
  • 20
    30-72961 BALL BEARING
    BALL BEARING
  • 21
    31-31410 ROLLER BEARING
    ROLLER BEARING
  • 22
    26-31411 OIL SEAL
    OIL SEAL
  • 23
    25-20863 O-RING
    O-RING
  • 24
    NLA SCREW (39)(#10-24 X 1/2")
    SCREW (39)(#10-24 X 1/2")
  • 24
    10-39002 SCREW (39)(40)(#12-24 X 1/2")
    SCREW (39)(40)(#12-24 X 1/2")
  • 25
    54-34598 CLAMP 39 40
    SERIAL 00000000-02693114
    CLAMP 39 40
    SERIAL 00000000-02693114
  • 26
    10-36205 SCREW
    SERIAL 00000000-02693114
    SCREW
    SERIAL 00000000-02693114
  • 27
    24-34731 SPRING
    SERIAL 00000000-02693114
    SPRING
    SERIAL 00000000-02693114
  • 28
    35658 TRANSFER PORT COVER
    TRANSFER PORT COVER
  • 29
    27-35657 GASKET
    GASKET
  • 30
    10-20665 SCREW (39)(40)
    SERIAL 00000000-02923726
    SCREW (39)(40)
    SERIAL 00000000-02923726
  • 30
    10-20720 SCREW 40
    SERIAL 02923727-09999999
    SCREW 40
    SERIAL 02923727-09999999
  • 31
    NLA CLAMP
    SERIAL 02923727-09999999
    CLAMP
    SERIAL 02923727-09999999
  • 32
    31014 MOUNT
    MOUNT
  • 33
    13-26992 LOCKWASHER)
    LOCKWASHER)
  • 34
    11-20088 NUT
    NUT
  • 35
    NLA COVER, CYLINDER BLOCK (39)(40)
    SERIAL 00000000-03028360
    COVER, CYLINDER BLOCK (39)(40)
    SERIAL 00000000-03028360
  • 35
    1016-7070A1 COVER, CYLINDER BLOCK (40)
    SERIAL 03028361-09999999
    COVER, CYLINDER BLOCK (40)
    SERIAL 03028361-09999999
  • 36
    22-390721 PIPE PLUG (39)
    PIPE PLUG (39)
  • 36
    22-328022 PIPE PLUG (40)
    PIPE PLUG (40)
  • 37
    27-416151 GASKET
    GASKET
  • 38
    10-20653 SCREW (39)
    SERIAL 00000000-02098036
    SCREW (39)
    SERIAL 00000000-02098036
  • 38
    10-21091 SCREW (39)(40)
    SERIAL 02098037-09999999
    SCREW (39)(40)
    SERIAL 02098037-09999999
  • 39
    11-20184 NUT
    NUT
  • 40
    27-416141 GASKET
    GASKET
  • 41
    46234 BAFFLE PLATE
    BAFFLE PLATE
  • 42
    27-416141 GASKET
    GASKET
  • 43
    46171 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 44
    10-28636 SCREW
    SCREW
