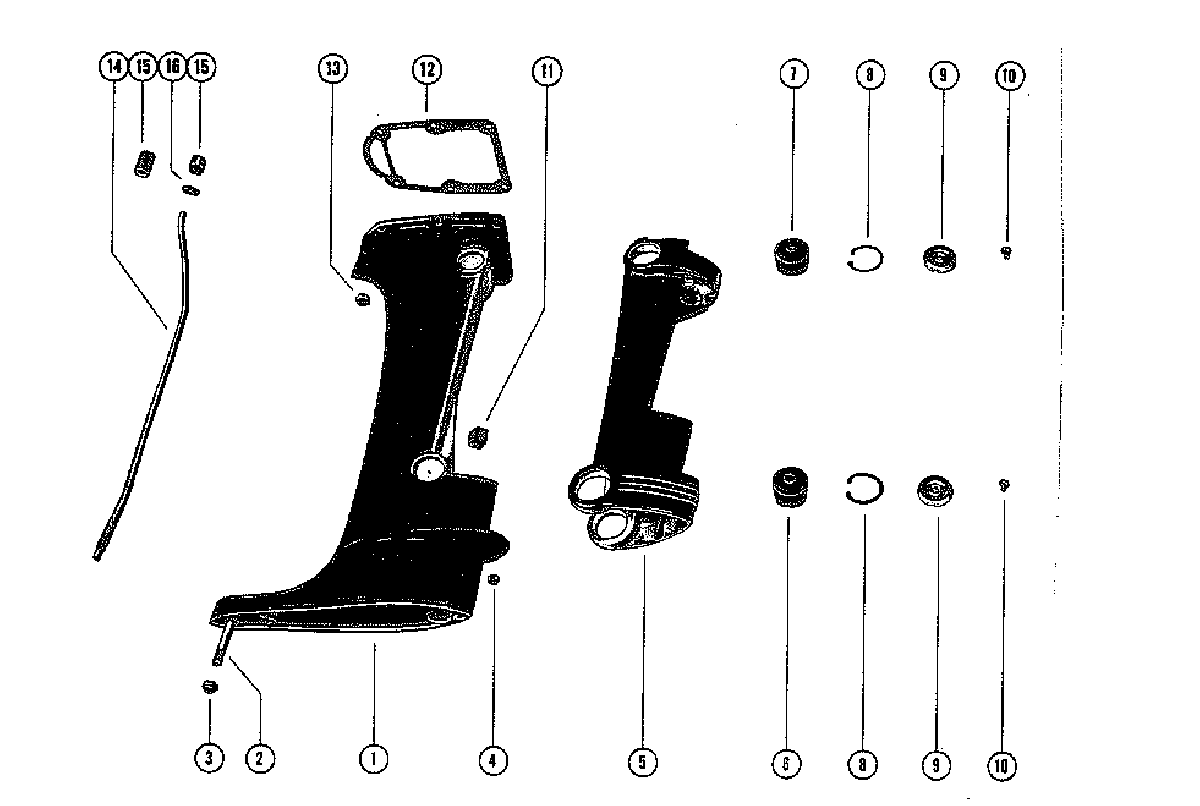

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 40 (1 CYL.) 2498136 THRU 3296136

  • №
    Артикул
    Название
  • 1
    NLA DRIVE SHAFT HOUSING (SHORT SHAFT)
    DRIVE SHAFT HOUSING (SHORT SHAFT)
  • 1
    NLA DRIVE SHAFT HOUSING (LONG SHAFT)
    DRIVE SHAFT HOUSING (LONG SHAFT)
  • 2
    16-34378 STUD (39)
    STUD (39)
  • 2
    16-66373 STUD (40)
    STUD (40)
  • 3
    11-82670911 NUT
    NUT
  • 4
    11-8M0042636 NUT
    NUT
  • 5
    1539-8450A1 SADDLE
    SADDLE
  • 6
    79896A1 MOUNT ASSEMBLY (LOWER)
    MOUNT ASSEMBLY (LOWER)
  • 7
    79985A1 MOUNT ASSEMBLY (UPPER)(SEE BLOCK COMMENTS)
    MOUNT ASSEMBLY (UPPER)(SEE BLOCK COMMENTS)
  • 8
    53-26406 RETAINING RING
    RETAINING RING
  • 9
    71490 COVER
    COVER
  • 10
    10-30675 SCREW (39-)
    SERIAL 00000000-02278850
    SCREW (39-)
    SERIAL 00000000-02278850
  • 10
    10-45817 SCREW (39)(40)
    SERIAL 02278851-09999999
    SCREW (39)(40)
    SERIAL 02278851-09999999
  • 11
    NLA BLOCK (LONG SHAFT)(39)(40)
    SERIAL 00000000-02771621
    BLOCK (LONG SHAFT)(39)(40)
    SERIAL 00000000-02771621
  • 11
    55435 BLOCK (LONG SHAFT)(40)
    SERIAL 02771622-09999999
    BLOCK (LONG SHAFT)(40)
    SERIAL 02771622-09999999
  • 12
    27-30804 GASKET (39)(40)
    SERIAL 00000000-03028360
    GASKET (39)(40)
    SERIAL 00000000-03028360
  • 12
    27-59079 GASKET (40)
    SERIAL 03028361-09999999
    GASKET (40)
    SERIAL 03028361-09999999
  • 13
    11-20184 NUT(QTY. OF 6 REQUIRED ON 39)
    SERIAL 00000000-02278850
    NUT(QTY. OF 6 REQUIRED ON 39)
    SERIAL 00000000-02278850
  • 13
    11-24652 NUT(39)(40)
    SERIAL 02278851-09999999
    NUT(39)(40)
    SERIAL 02278851-09999999
  • 14
    32-31940 WATER TUBE (SHORT SHAFT)
    WATER TUBE (SHORT SHAFT)
  • 14
    32-32077 WATER TUBE (LONG SHAFT)
    WATER TUBE (LONG SHAFT)
  • 15
    26-30811 SEAL ((39)
    SERIAL 00000000-01697722
    SEAL ((39)
    SERIAL 00000000-01697722
  • 15
    26-36556 SEAL (39-)(40)
    SERIAL 01697723-09999999
    SEAL (39-)(40)
    SERIAL 01697723-09999999
  • 16
    23-13127 SPACER
    SPACER
