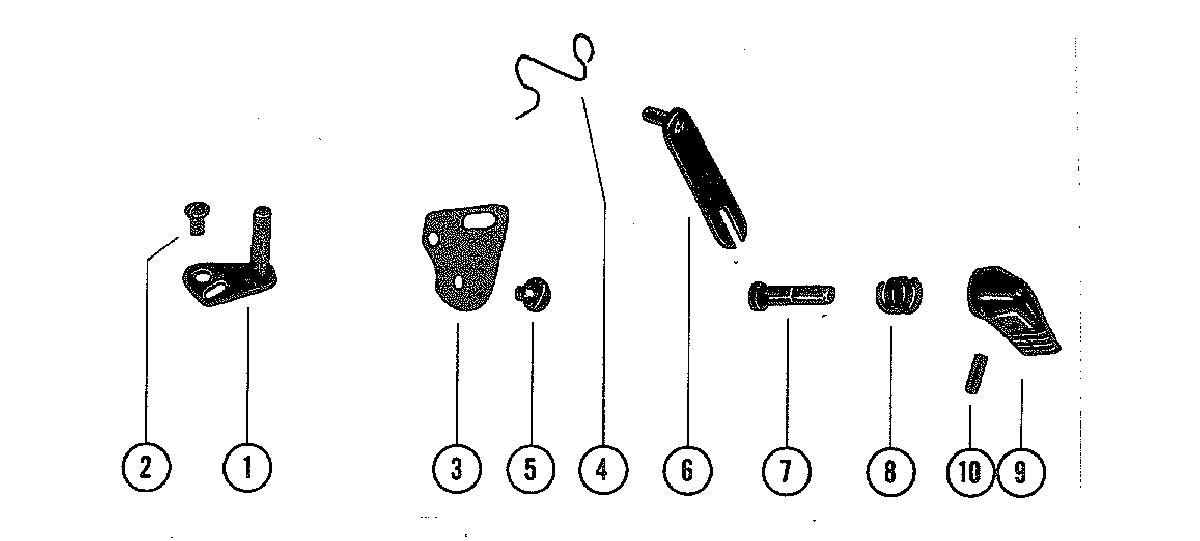

CARBURETOR CHOKE LINKAGE (39) для Mercury - 40 (1 CYL.) 2498136 THRU 3296136

  • №
    Артикул
    Название
  • 1
    59000 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 2
    10-20597 SCREW, THROTTLE LEVER TO CARBURETOR
    SCREW, THROTTLE LEVER TO CARBURETOR
  • 3
    NLA SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 4
    24-20579 SPRING, CHOKE SHUTTER TO LEVER
    SPRING, CHOKE SHUTTER TO LEVER
  • 5
    NLA SCREW, CHOKE SHUTTER TO CARBURETOR
    SCREW, CHOKE SHUTTER TO CARBURETOR
  • 6
    NLA LEVER ASSEMBLY, CHOKE SHUTTER
    LEVER ASSEMBLY, CHOKE SHUTTER
  • 7
    NLA SHAFT, CHOKE LEVER TO CHOKE KNOB
    SHAFT, CHOKE LEVER TO CHOKE KNOB
  • 8
    24-30947 SPRING, TENSION - CHOKE KNOB
    SPRING, TENSION - CHOKE KNOB
  • 9
    NLA CHOKE KNOB
    CHOKE KNOB
  • 10
    17-22896 ROLL PIN, CHOKE KNOB TO SHAFT
    ROLL PIN, CHOKE KNOB TO SHAFT
