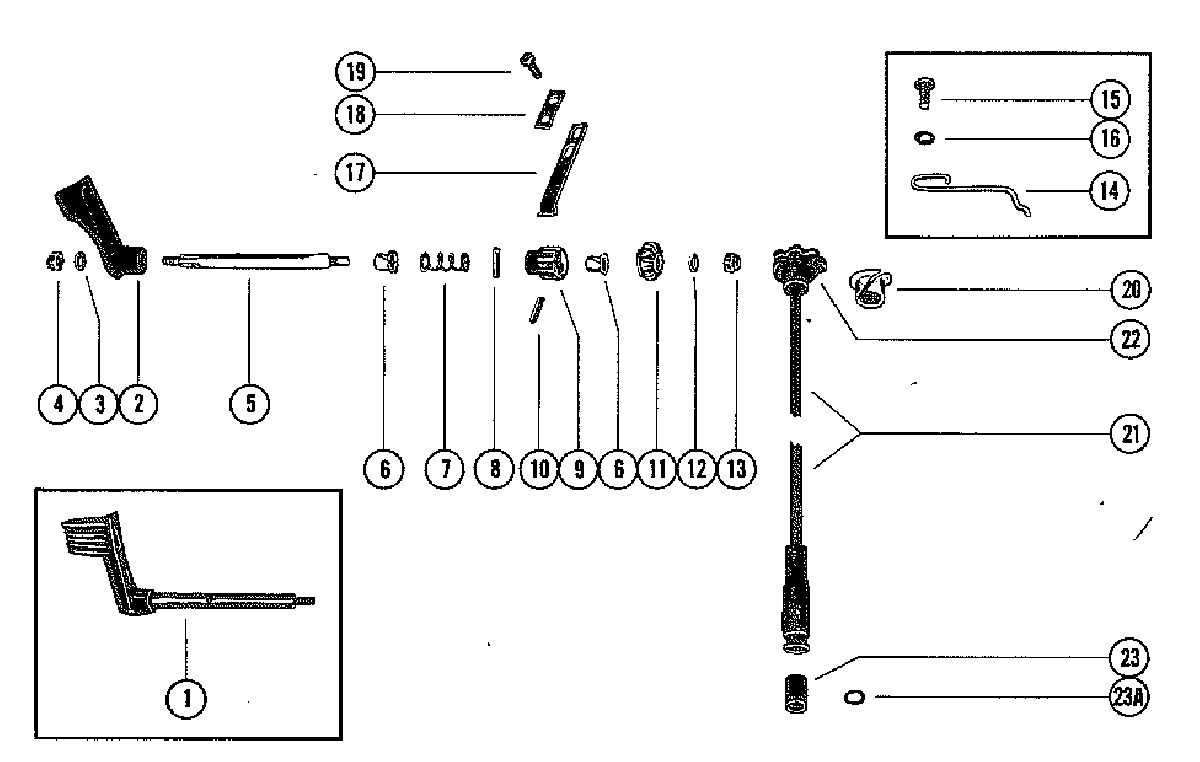

SHIFT CONTROL LINKAGE (39) для Mercury - 40 (1 CYL.) 2498136 THRU 3296136

  • №
    Артикул
    Название
  • 1
    30747 SHIFT CONTROL HANDLE
    SERIAL 00000000-01919629
    SHIFT CONTROL HANDLE
    SERIAL 00000000-01919629
  • 2
    59107 SHIFT CONTROL HANDLE
    SERIAL 01919630-09999999
    SHIFT CONTROL HANDLE
    SERIAL 01919630-09999999
  • 3
    12-29245 WASHER
    SERIAL 01919630-09999999
    WASHER
    SERIAL 01919630-09999999
  • 4
    11-826709109 NUT
    SERIAL 01919630-09999999
    NUT
    SERIAL 01919630-09999999
  • 5
    NLA SHIFT SHAFT
    SERIAL 01919630-09999999
    SHIFT SHAFT
    SERIAL 01919630-09999999
  • 6
    23-30678 BUSHING
    BUSHING
  • 7
    NLA SPRING
    SPRING
  • 8
    NLA DOWEL PIN
    DOWEL PIN
  • 9
    39588 CAM
    SERIAL 02278851-09999999
    CAM
    SERIAL 02278851-09999999
  • 10
    17-25905 PIN
    SERIAL 02278851-09999999
    PIN
    SERIAL 02278851-09999999
  • 11
    43-30802 GEAR
    GEAR
  • 12
    12-29245 WASHER
    WASHER
  • 13
    11-8267089 NUT
    NUT
  • 14
    24-30816 SPRING
    SERIAL 00000000-02278850
    SPRING
    SERIAL 00000000-02278850
  • 15
    NLA SCREW
    SERIAL 00000000-02278850
    SCREW
    SERIAL 00000000-02278850
  • 16
    13-21272 LOCKWASHER
    SERIAL 00000000-02278850
    LOCKWASHER
    SERIAL 00000000-02278850
  • 17
    24-39627 SPRING
    SERIAL 02278851-09999999
    SPRING
    SERIAL 02278851-09999999
  • 18
    39601 PLATE
    SERIAL 02278851-09999999
    PLATE
    SERIAL 02278851-09999999
  • 19
    10-25764 SCREW
    SERIAL 02278851-09999999
    SCREW
    SERIAL 02278851-09999999
  • 20
    23-30677 BUSHING
    BUSHING
  • 21
    NLA SHIFT CONTROL SHAFT ASSEMBLY
    SHIFT CONTROL SHAFT ASSEMBLY
  • 22
    NLA GEAR
    GEAR
  • 23
    25-26630 RING
    SERIAL 00000000-01794250
    RING
    SERIAL 00000000-01794250
  • 23A
    25-38933 O-RING
    SERIAL 01794251-09999999
    O-RING
    SERIAL 01794251-09999999
