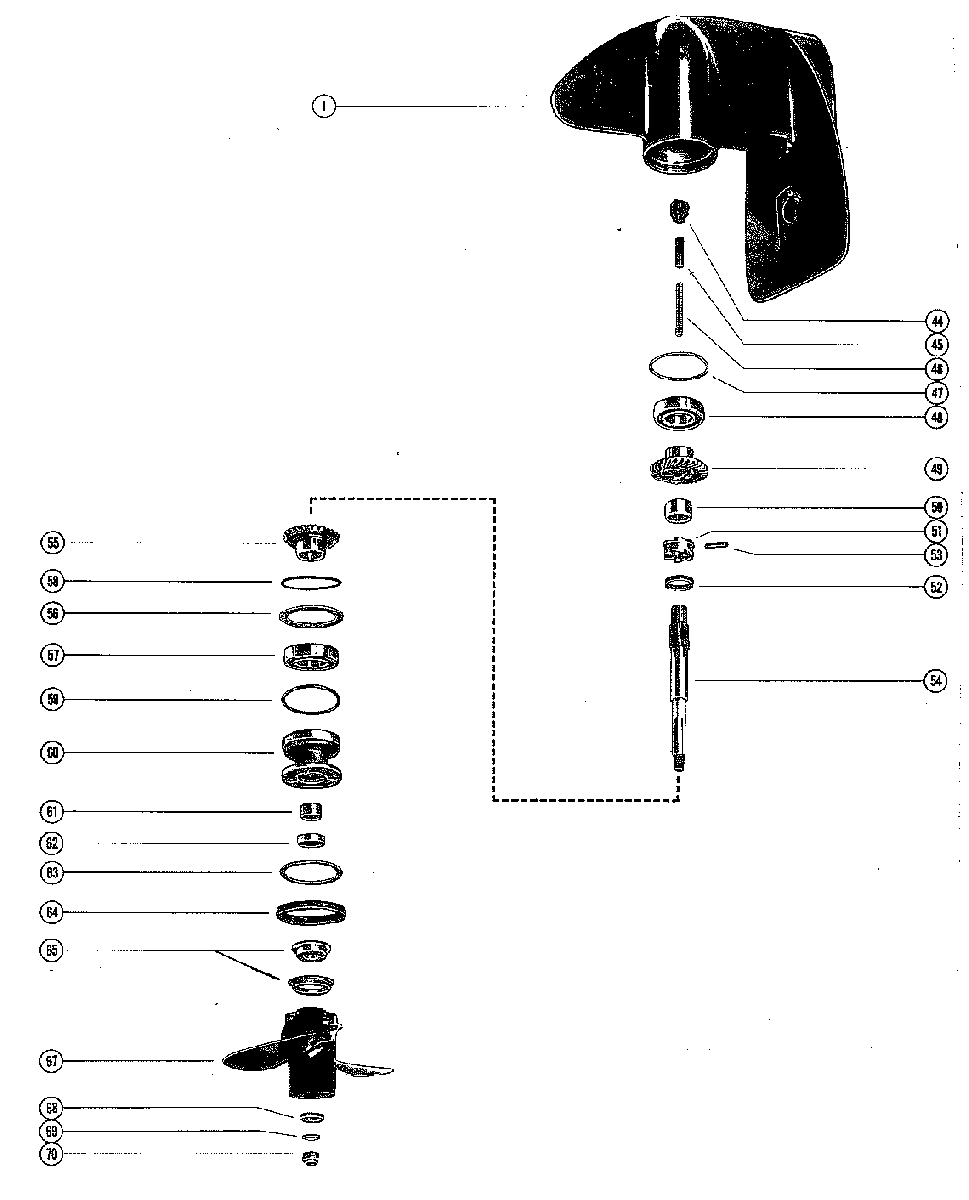

GEAR HOUSING (PROPELLER SHAFT) для Mercury - 40 (1 CYL.) 2498136 THRU 3296136

  • №
    Артикул
    Название
  • 70
    NLA G/HSG. COMP.(SHORT)(39)(40)
    SERIAL 00000000-03028360
    G/HSG. COMP.(SHORT)(39)(40)
    SERIAL 00000000-03028360
  • -
    NLA G/HSG. COMP. (SHORT)(40)
    SERIAL 03028361-09999999
    G/HSG. COMP. (SHORT)(40)
    SERIAL 03028361-09999999
  • -
    NLA HSG. COMP.(LONG)(39/40)
    HSG. COMP.(LONG)(39/40)
  • 1
    1622-2244A18 G/HSG.(39)(40)
    SERIAL 00000000-03028360
    G/HSG.(39)(40)
    SERIAL 00000000-03028360
  • 1
    1622-4408A1 G/HSG.(40)
    SERIAL 03028361-09999999
    G/HSG.(40)
    SERIAL 03028361-09999999
  • 44
    30599 SHIFT CAM ((39)(40)
    SERIAL 00000000-03028360
    SHIFT CAM ((39)(40)
    SERIAL 00000000-03028360
  • 44
    44434 SHIFT CAM (40)
    SERIAL 03028361-09999999
    SHIFT CAM (40)
    SERIAL 03028361-09999999
  • 45
    31334 CAM FOLLOWER
    CAM FOLLOWER
  • 46
    24-31333 SPRING
    SPRING
  • 47
    15-30522A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 48
    30-21889 BALL BEARING
    BALL BEARING
  • 49
    43-48577A2 FORWARD GEAR (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
    FORWARD GEAR (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
  • 49
    43-48577A3 FORWARD GEAR (39-3 RAMP RATCHET)(40)
    FORWARD GEAR (39-3 RAMP RATCHET)(40)
  • 50
    31-22458 ROLLER BEARING
    ROLLER BEARING
  • 51
    43-48577A2 RATCHET (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
    RATCHET (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
  • 52
    53-32449 RETAINING RING
    RETAINING RING
  • 53
    17-30535 CROSS PIN
    CROSS PIN
  • 54
    44-33581 PROPELLER SHAFT (39)
    SERIAL 00000000-02278850
    PROPELLER SHAFT (39)
    SERIAL 00000000-02278850
  • 54
    44-47935 PROPELLER SHAFT (39)(40)
    SERIAL 02278851-09999999
    PROPELLER SHAFT (39)(40)
    SERIAL 02278851-09999999
  • 55
    43-48577A2 REVERSE GEAR (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
    REVERSE GEAR (39-2 RAMP RATCHET)
    43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN.
  • 55
    43-48578 REVERSE GEAR (39-3 RAMP RATCHET)(40)
    REVERSE GEAR (39-3 RAMP RATCHET)(40)
  • 56
    12-30531 THRUST WASHER
    THRUST WASHER
  • 57
    30-21889 BALL BEARING
    BALL BEARING
  • 58
    15-30532A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 59
    25-30529 O-RING
    O-RING
  • 60
    30541T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 61
    31-22458 ROLLER BEARING
    ROLLER BEARING
  • 62
    26-30530 OIL SEAL
    OIL SEAL
  • 63
    12-30528 WASHER
    WASHER
  • 64
    30537 COVER
    COVER
  • 65
    23-33582 COLLAR (39)
    SERIAL 00000000-02278850
    COLLAR (39)
    SERIAL 00000000-02278850
  • 65
    86665A1 THRUST HUB (39-)(40)
    SERIAL 02278851-09999999
    THRUST HUB (39-)(40)
    SERIAL 02278851-09999999
  • 67
    48-45890A1 PROPELLER (39)
    SERIAL 00000000-02278850
    PROPELLER (39)
    SERIAL 00000000-02278850
  • 67
    48-47944A1 PROPELLER (39)(40)
    SERIAL 02278851-09999999
    PROPELLER (39)(40)
    SERIAL 02278851-09999999
  • 68
    12-30524 SPLINED WASHER (39)
    SERIAL 00000000-02278850
    SPLINED WASHER (39)
    SERIAL 00000000-02278850
  • 68
    11-64075A1 SPACER (39)(40)
    SERIAL 02278851-09999999
    SPACER (39)(40)
    SERIAL 02278851-09999999
  • 69
    12-20084 WASHER (39)
    SERIAL 00000000-02278850
    WASHER (39)
    SERIAL 00000000-02278850
  • 69
    12-27025 WASHER (39-/40)
    SERIAL 02278851-02927900
    WASHER (39-/40)
    SERIAL 02278851-02927900
  • 70
    11-34933 NUT (39-)
    SERIAL 00000000-02278850
    NUT (39-)
    SERIAL 00000000-02278850
  • 70
    11-34933 NUT (39)(40)
    SERIAL 02278851-09999999
    NUT (39)(40)
    SERIAL 02278851-09999999
