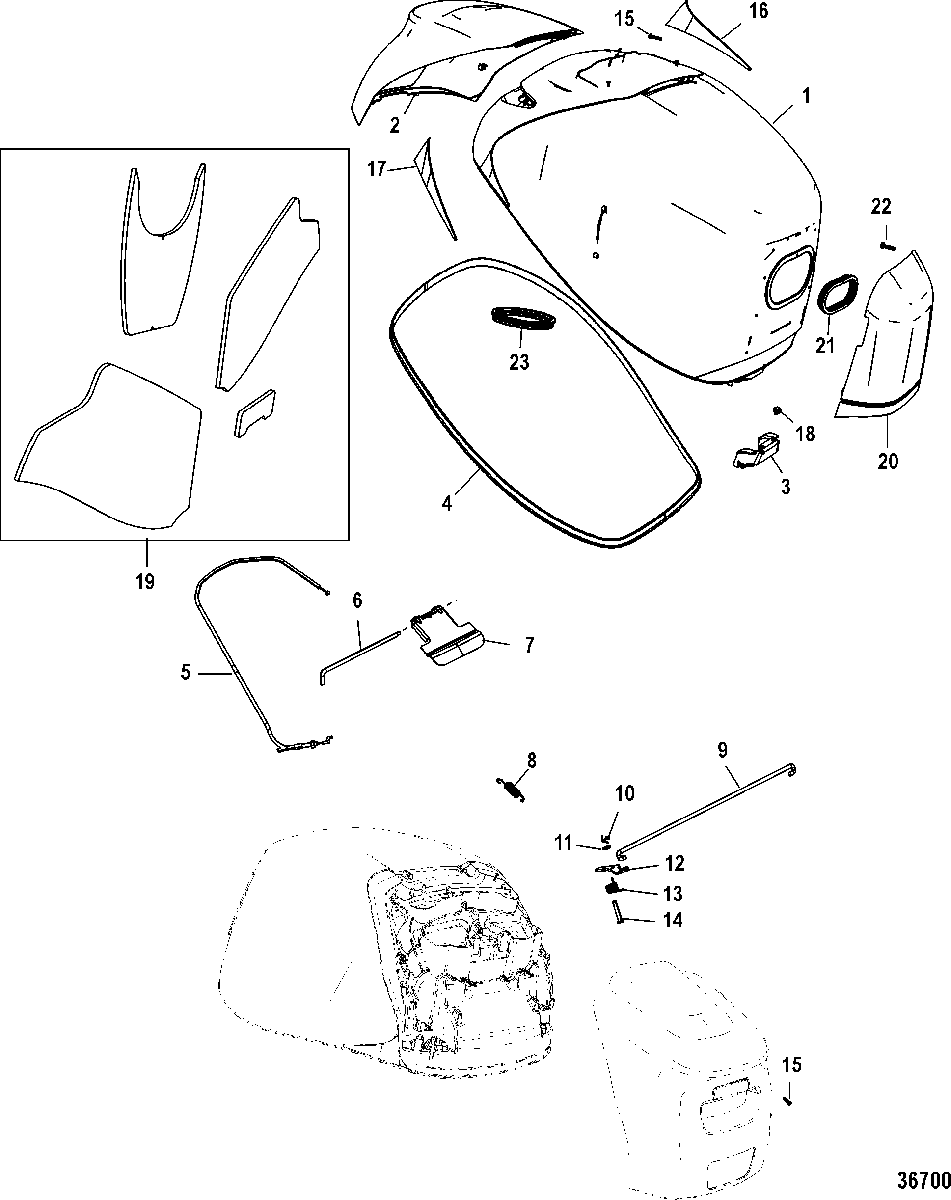

Top Cowl для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
1100-885355T06 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
2885354T02 COVER, Top Cowl-RearCOVER, Top Cowl-Rear
-
3888971 FRONT LATCH RECEIVERFRONT LATCH RECEIVER
-
48M0111178 SEALSEAL
-
58M0127199 CABLECABLE
-
617-888959 PIN, HingePIN, Hinge
-
7888956 LATCH, Hand LeverLATCH, Hand Lever
-
824-895373 SPRINGSPRING
-
9888955 LINK, Latch ConnectingLINK, Latch Connecting
-
1018-26953 COTTER PINCOTTER PIN
-
1112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
12888952 LINKAGE ARMLINKAGE ARM
-
1324-888953 SPRINGSPRING
-
1417-822417 PINPIN
-
1510-897678020 SCREW, (M4 x 20mm)SCREW, (M4 x 20mm)
-
168M0025063 APPLIQUE, PortAPPLIQUE, Port
-
178M0025062 APPLIQUE, StarboardAPPLIQUE, Starboard
-
1810-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
19889824A02 SOUND BLANKET KITSOUND BLANKET KIT
-
20848820T03 SHIELD, Front-Top CowlSHIELD, Front-Top Cowl
-
218M0043233 SEALSEAL
-
2210-8M0025681 SCREW, (M4 x 16mm)SCREW, (M4 x 16mm)
-
238M0043232 SEALSEAL
-
-37-892565A10 DECAL SET, TopDECAL SET, Top
