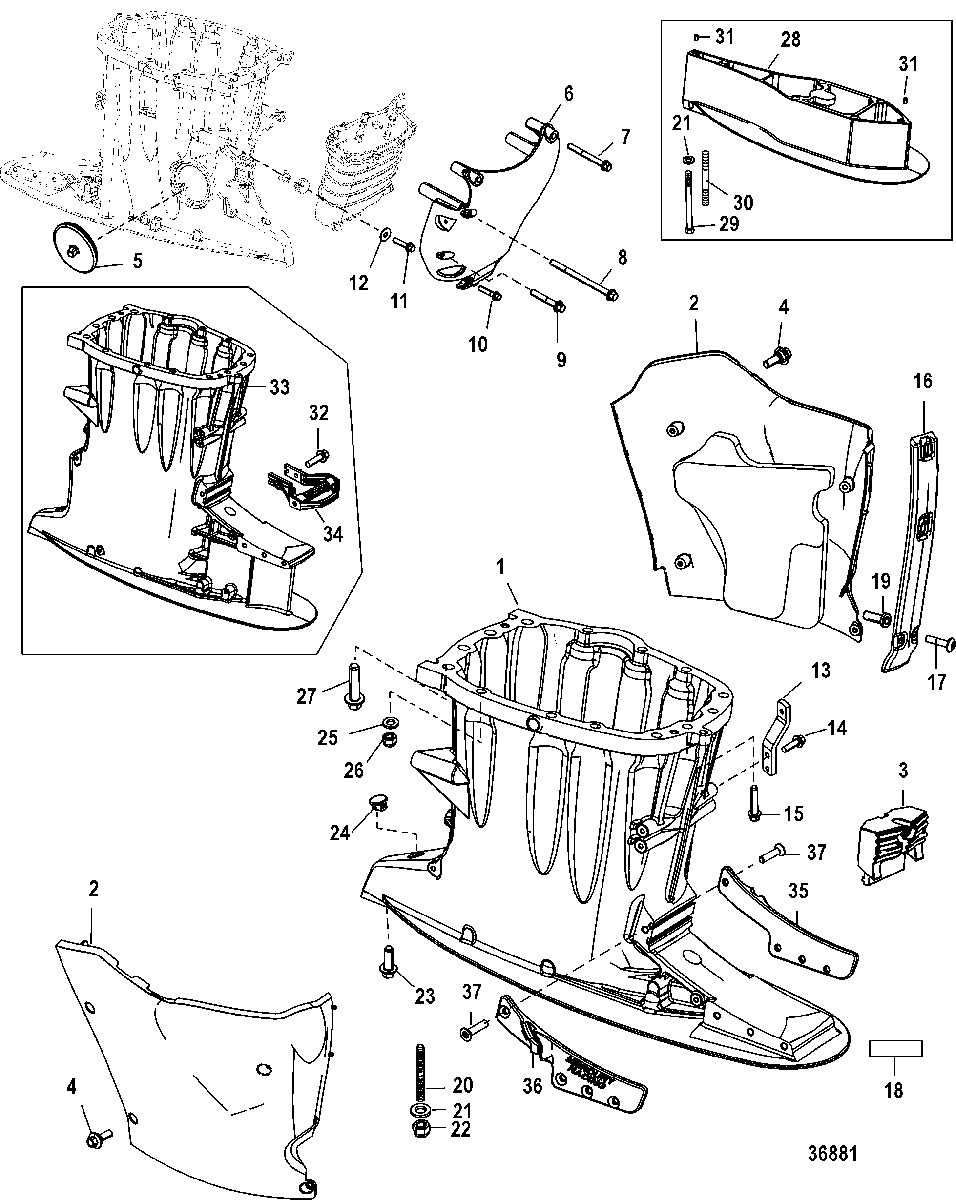

Driveshaft Housing для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
11500-880646T02 DRIVESHAFT HOUSING
LongDRIVESHAFT HOUSING
Long -
2885366T02 COVER ASSEMBLY, Long - Driveshaft Housing-Port and StarboardCOVER ASSEMBLY, Long - Driveshaft Housing-Port and Starboard
-
2885363T02 COVER ASSEMBLY, X-Long - Driveshaft Housing-Port and StarboardCOVER ASSEMBLY, X-Long - Driveshaft Housing-Port and Starboard
-
38M0032777 BUMPERBUMPER
-
410-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
525-889568001 GROMMETGROMMET
-
6889656T01 SHROUDSHROUD
-
710-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
810-8M0103812 SCREW, (M8 x 120)SCREW, (M8 x 120)
-
910-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1010-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1110-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1212-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
13897784A01 BRACKET KIT, Upper ChapBRACKET KIT, Upper Chap
-
1410-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1510-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
16885363T03 COVERCOVER
-
1710-8M0027847 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
18NSS NOT SOLD SEPARATE, Decal-Oil DrainNOT SOLD SEPARATE, Decal-Oil Drain
-
1911-863149 NUT, Well (M6 x 10)NUT, Well (M6 x 10)
-
2016-8M0070951 STUD, (M12 x 52)
Long/X-LongSTUD, (M12 x 52)
Long/X-Long -
2112-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
2211-896895 NUT, (M12)NUT, (M12)
-
2310-8M0102995 SCREW, (M12 x 35 MM)
Long/X-LongSCREW, (M12 x 35 MM)
Long/X-Long -
2419-824928001 PLUG, RubberPLUG, Rubber
-
2512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2611-884412 NUTNUT
-
2710-8M0103825 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
288M0105088 SPACER
XX-LongSPACER
XX-Long -
2910-857137 SCREW, (M12 x 160)
XX-LongSCREW, (M12 x 160)
XX-Long -
3016-8M0008047 STUD, (M12 x 179)
XX-LongSTUD, (M12 x 179)
XX-Long -
3117-43044 PIN, Dowel - Without Hole (.375 x .625)
XX-LongPIN, Dowel - Without Hole (.375 x .625)
XX-Long -
3210-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
X-Long/XX-LongSCREW, (M6 x 20 MM) Stainless Steel
X-Long/XX-Long -
331500-880648T02 DRIVESHAFT HOUSING
XX-LongDRIVESHAFT HOUSING
XX-Long -
34891966006 BRACKET, Cowl
X-Long/XX-LongBRACKET, Cowl
X-Long/XX-Long -
35802968T01 PLATE, Thrust-PortPLATE, Thrust-Port
-
36802968T02 PLATE, Thrust-StarboardPLATE, Thrust-Starboard
-
3710-8M0007244 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
-61-895247A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
