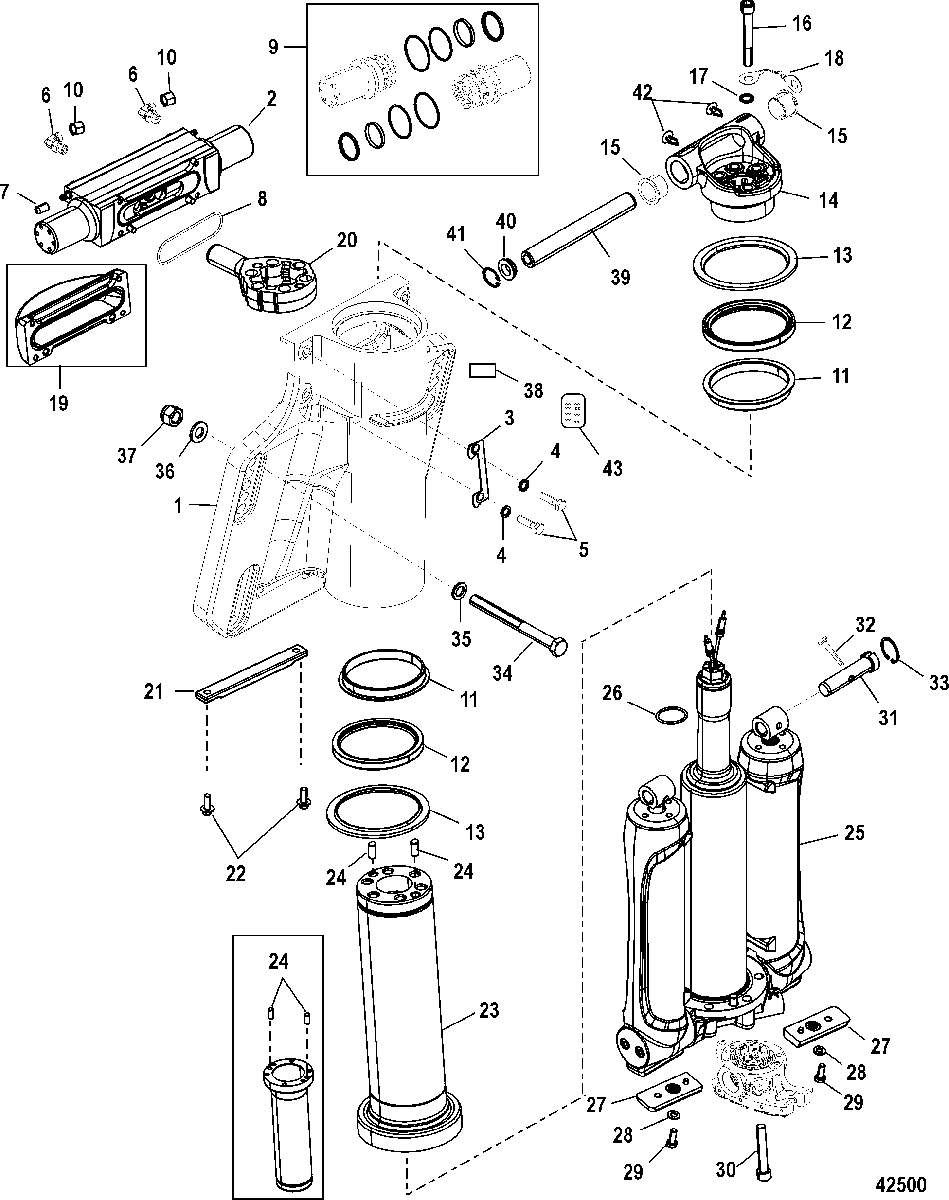

Power Trim/Steering Cylinder для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Transom AssemblyNOT SOLD SEPARATE, Transom Assembly
-
1880652T02 PEDESTALPEDESTAL
-
28M0118141 STEERING CYLINDER KIT
(Standard)STEERING CYLINDER KIT
(Standard) -
3893409 RETAINERRETAINER
-
412-895853 WASHERWASHER
-
510-88509530 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
622-889552 ELBOW
(Standard)ELBOW
(Standard) -
7889550 CAP, Bleeder - Vinyl
(Standard)CAP, Bleeder - Vinyl
(Standard) -
826-880667 SEALSEAL
-
98M0045604 SEAL KIT, Steering CylinderSEAL KIT, Steering Cylinder
-
1022-892524 CAP, Fitting
(Standard)CAP, Fitting
(Standard) -
1131-8806621 BEARINGBEARING
-
1226-880661 SEALSEAL
-
1331-8806561 BEARINGBEARING
-
14880654T03 HEAD, SteeringHEAD, Steering
-
1531-8M0001758 BEARING, With ShoulderBEARING, With Shoulder
-
1610-885094105 SCREW, (M14 x 105)SCREW, (M14 x 105)
-
1712-885112 WASHERWASHER
-
1888238T23 CABLE ASSEMBLYCABLE ASSEMBLY
-
19893405T COVER
(Counter Rotation)COVER
(Counter Rotation) -
20880665T01 ARM, SteeringARM, Steering
-
2197-8M0012083 ANODEANODE
-
2210-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
23880660T02 TUBE, SteeringTUBE, Steering
-
2417-885111 PIN, Dowel (.375 x .875)PIN, Dowel (.375 x .875)
-
258M0118297 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
2625-895854 O-RINGO-RING
-
2797-893404 ANODEANODE
-
2812-889545 WASHERWASHER
-
2910-889543016 BOLTBOLT
-
3010-8M0007798 SCREW, (M10 x 65)SCREW, (M10 x 65)
-
3117-8M0146467 PIN, Rod EyePIN, Rod Eye
-
3217-821539 PIN, TrilobePIN, Trilobe
-
3353-895304 RING, RetainingRING, Retaining
-
3410-8M0038370 SCREW, (.500-20 x 5.500)SCREW, (.500-20 x 5.500)
-
3512-895062 WASHERWASHER
-
3612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
3711-82671117 NUT, (.500-20)NUT, (.500-20)
-
38NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
398M0001803 TILT PINTILT PIN
-
4025-8M0032468 SPACERSPACER
-
4153-8M6000694 RING, RetainingRING, Retaining
-
4219-95925 PLUGPLUG
-
4337-8M0043059 DECAL, WarningDECAL, Warning
