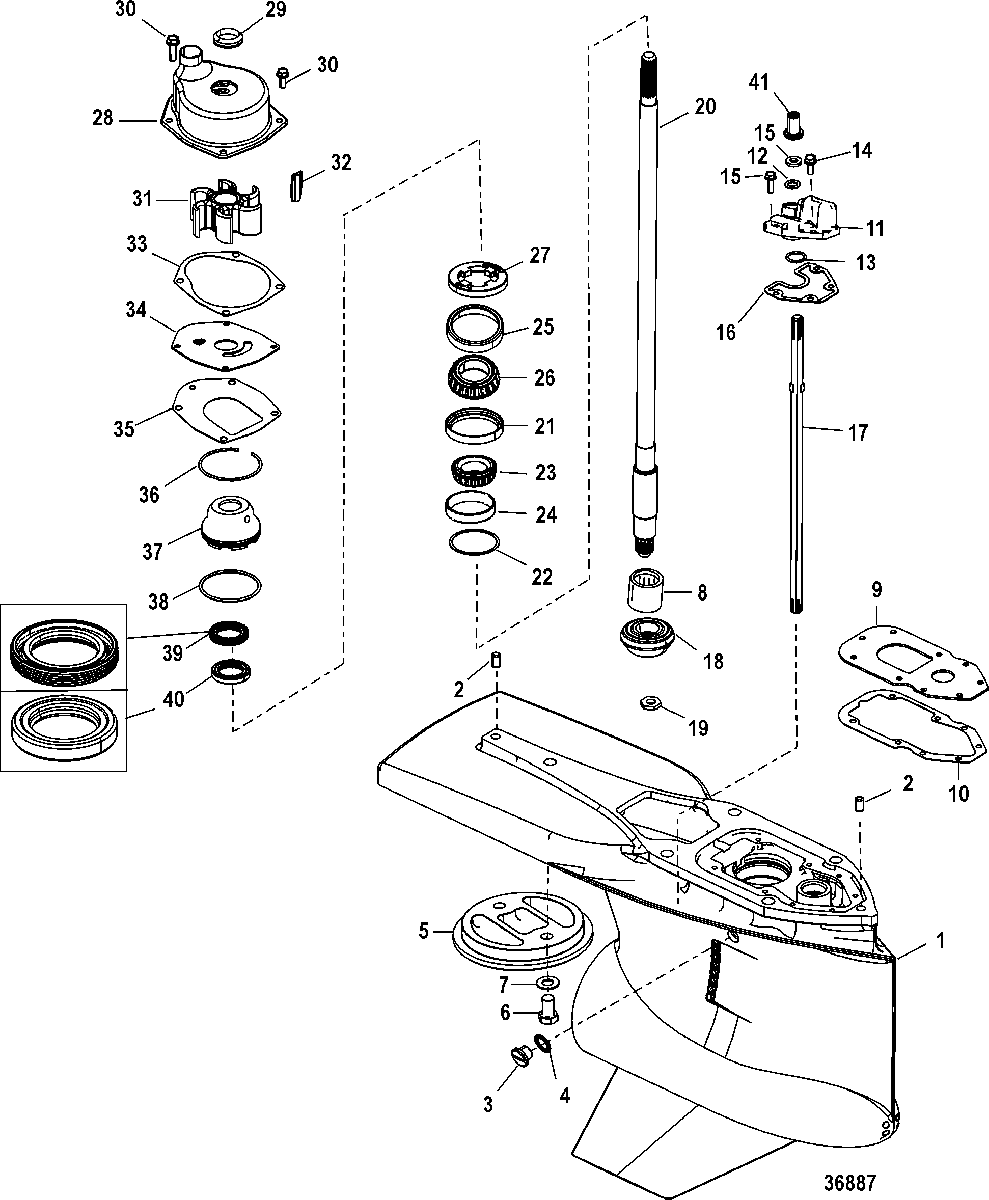

Gear Housing, Driveshaft для Mercury - 350SCi Verado 1B716557 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0078252 GEAR HOUSING ASSEMBLY, Complete-Standard-Long
    GEAR HOUSING ASSEMBLY, Complete-Standard-Long
  • -
    1600-880686T61 GEAR HOUSING ASSEMBLY, Complete-Standard-X-Long
    GEAR HOUSING ASSEMBLY, Complete-Standard-X-Long
  • -
    1600-8M0117247 GEAR HOUSING ASSEMBLY, Complete-Standard-XX-Long
    GEAR HOUSING ASSEMBLY, Complete-Standard-XX-Long
  • -
    1600-880686T65 GEAR HOUSING ASSEMBLY, Complete-Counter Rotation-Long
    GEAR HOUSING ASSEMBLY, Complete-Counter Rotation-Long
  • -
    1600-8M0117249 GEAR HOUSING ASSEMBLY, Complete-Counter Rotation X-Long
    GEAR HOUSING ASSEMBLY, Complete-Counter Rotation X-Long
  • -
    1600-880686T64 GEAR HOUSING ASSEMBLY, Complete-Counter Rotation-XX-Long
    GEAR HOUSING ASSEMBLY, Complete-Counter Rotation-XX-Long
  • 1
    1600-880686T66 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 3
    10-79953A04 PLUG ASSEMBLY, (.375-16 x .250)
    PLUG ASSEMBLY, (.375-16 x .250)
  • 4
    26-830749 SEAL
    SEAL
  • 5
    847635001 ANODE
    ANODE
  • 6
    10-8M0036047 SCREW, (.375 x .62)
    SCREW, (.375 x .62)
  • 7
    12-841388 WASHER, (.410 x .810 x .050) Stainless Steel
    WASHER, (.410 x .810 x .050) Stainless Steel
  • 8
    31-817072 BEARING, Roller
    BEARING, Roller
  • 9
    8M0033810 PLATE, Water Passge
    PLATE, Water Passge
  • 10
    27-8M0033809 GASKET, Water Pump
    GASKET, Water Pump
  • 11
    8M8022275 COVER ASSEMBLY, Shift Shaft
    COVER ASSEMBLY, Shift Shaft
  • 12
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 13
    25-896522 O-RING, (799 x .103)
    O-RING, (799 x .103)
  • 14
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 15
    12-77674 WASHER
    WASHER
  • 16
    27-8M0033641 GASKET
    GASKET
  • 17
    824145 SHIFT SHAFT
    SHIFT SHAFT
  • 18
    NSS NOT SOLD SEPARATE, Pinion Gear 16 Teeth
    Part of Reverse/Pinion Gear Set 43-880707A03
    NOT SOLD SEPARATE, Pinion Gear 16 Teeth
    Part of Reverse/Pinion Gear Set 43-880707A03
  • 19
    11-8M0030976 NUT
    NUT
  • 20
    45-888572T01 DRIVESHAFT, Long
    DRIVESHAFT, Long
  • 20
    45-888573T01 DRIVESHAFT, X-Long
    DRIVESHAFT, X-Long
  • 20
    45-888574T01 DRIVESHAFT, XX-Long
    DRIVESHAFT, XX-Long
  • 21
    15-884327A02 SHIM/BEARING ASSEMBLY
    SHIM/BEARING ASSEMBLY
  • 22
    15-8M0063268 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 23
    NSS NOT SOLD SEPARATE, Roller Bearing Assembly
    NOT SOLD SEPARATE, Roller Bearing Assembly
  • 24
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 25
    NSS NOT SOLD SEPARATE, Roller Bearing Assembly
    NOT SOLD SEPARATE, Roller Bearing Assembly
  • 26
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 27
    8245191 RETAINER
    RETAINER
  • 28
    817275A13 WATER PUMP ASSEMBLY, Complete
    WATER PUMP ASSEMBLY, Complete
  • 29
    26-861415A1 SEAL KIT
    SEAL KIT
  • 30
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 31
    47-43026T2 IMPELLER
    IMPELLER
  • 32
    28-8M0032833 KEY
    KEY
  • 33
    27-8172771 GASKET
    GASKET
  • 34
    8172761 FACEPLATE
    FACEPLATE
  • 35
    27-430331 GASKET
    GASKET
  • 36
    53-880719 RING, Retaining
    RING, Retaining
  • 37
    8M8023745 CARRIER ASSEMBLY, Oil Seal
    CARRIER ASSEMBLY, Oil Seal
  • 38
    25-896523 O-RING, (2.175 x .103)
    O-RING, (2.175 x .103)
  • 39
    NSS NOT SOLD SEPARATE, Oil Seal
    NOT SOLD SEPARATE, Oil Seal
  • 40
    NSS NOT SOLD SEPARATE, Oil Seal
    NOT SOLD SEPARATE, Oil Seal
  • 41
    43585 COUPLING
    COUPLING
  • -
    26-830749A02 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    47-8M0100526 REPAIR KIT, Water Pump Impeller
    REPAIR KIT, Water Pump Impeller
  • -
    817275A08 REPAIR KIT, Water Pump-Upper
    REPAIR KIT, Water Pump-Upper
