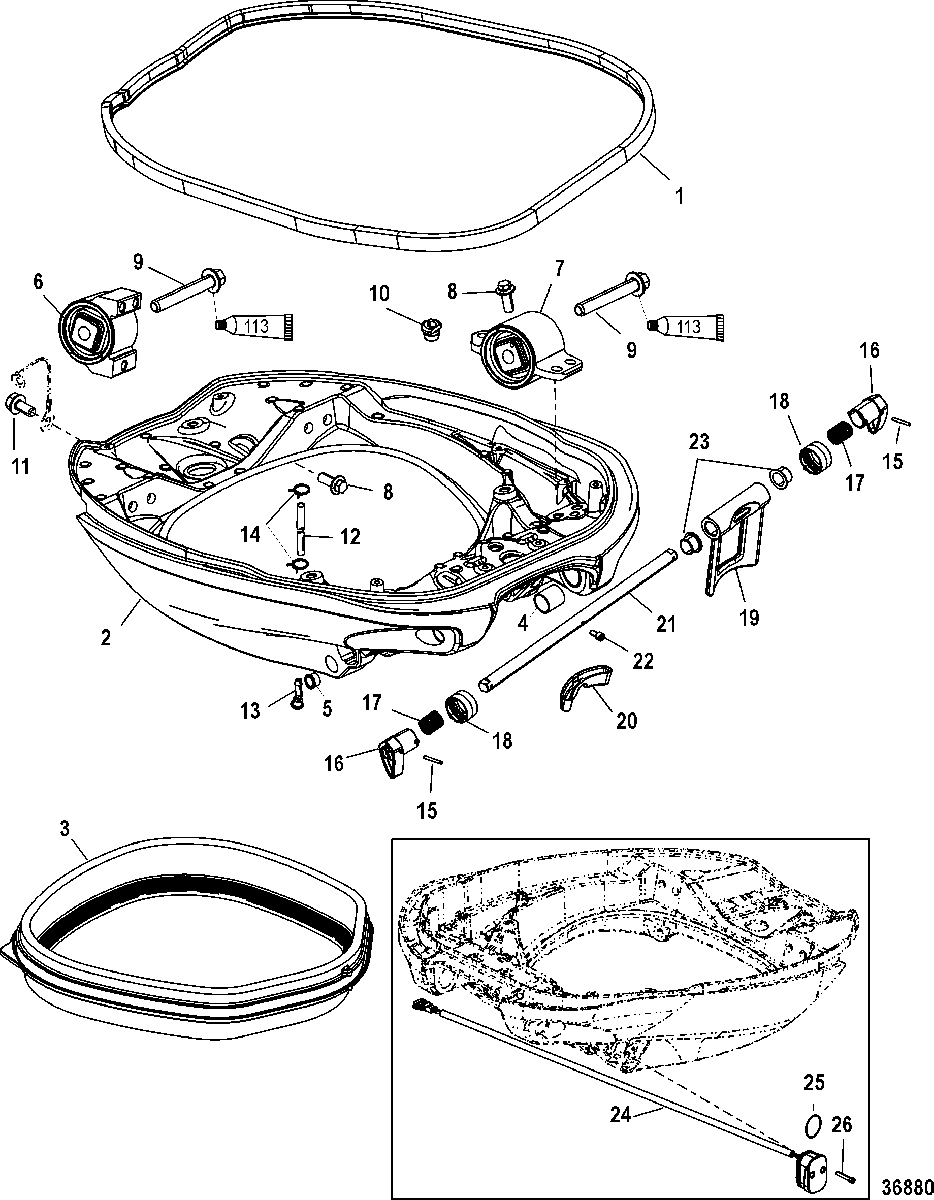

Mount Cradle для Mercury - 350SCi Verado 1B716557 & Up

  • №
    Артикул
    Название
  • 1
    8M0109275 SEAL
    SEAL
  • 2
    884887T05 CRADLE, Mount
    CRADLE, Mount
  • 3
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 4
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 5
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 6
    8M0103375 MOUNT, Rear
    MOUNT, Rear
  • 7
    8M0102452 MOUNT, Front
    MOUNT, Front
  • 8
    10-889745030 SCREW, (M12 x 30)
    SCREW, (M12 x 30)
  • 9
    10-8M0103832 SCREW, (M16 x 90)
    SCREW, (M16 x 90)
  • 10
    25-12602002 GROMMET
    GROMMET
  • 11
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 12
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 35 Inches
    HOSE, (57.00 Inches Bulk), Cut to 35 Inches
  • 13
    22-895797001 FITTING, Telltale
    FITTING, Telltale
  • 14
    54-895851 CLAMP, (8.00 Inches)
    CLAMP, (8.00 Inches)
  • 15
    17-73194 PIN, Roll (.125 x 1.12)
    PIN, Roll (.125 x 1.12)
  • 16
    880649002 LEVER, Tilt Lock
    LEVER, Tilt Lock
  • 17
    24-47968 SPRING
    SPRING
  • 18
    889540A03 CLUTCH KIT
    CLUTCH KIT
  • 19
    8M0109693 BRACKET, Tilt Lock
    BRACKET, Tilt Lock
  • 20
    8M0076907 PAD, Tilt Lock
    PAD, Tilt Lock
  • 21
    880650003 SHAFT, Tilt Lock
    SHAFT, Tilt Lock
  • 22
    10-889546 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 23
    31-8806641 BEARING, (.625 Inch)
    BEARING, (.625 Inch)
  • 24
    8M0010626 SENSOR, Trim Position-Black
    SENSOR, Trim Position-Black
  • 25
    25-892271 O-RING
    O-RING
  • 26
    10-889547 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
