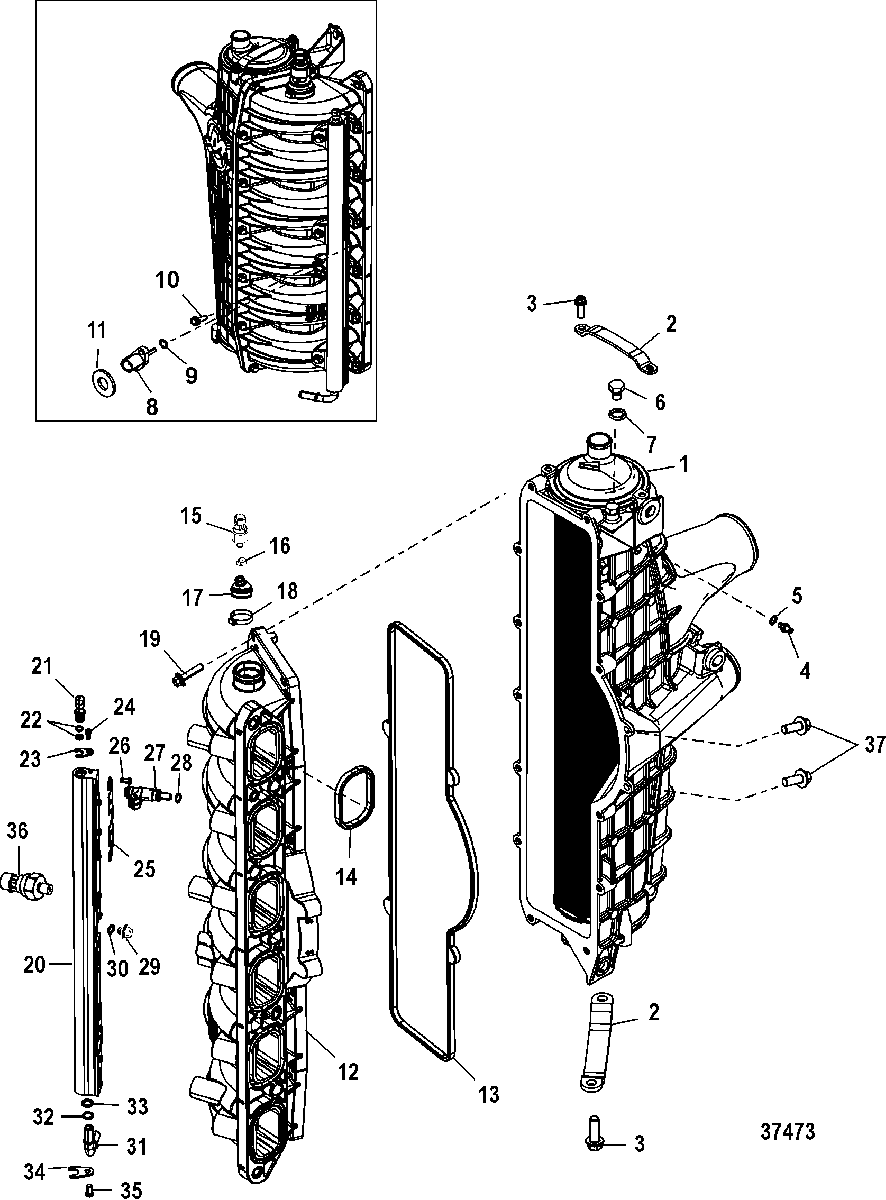

Charge Cooler/Intake Manifold(Gen I) End Cap Serviced для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
-8M0131231 MODULE ASSEMBLY, Intergrated Air FuelMODULE ASSEMBLY, Intergrated Air Fuel
-
18M0132388 CAC ASSEMBLYCAC ASSEMBLY
-
2895032 STRAPSTRAP
-
310-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
422-8M0039993 FITTINGFITTING
-
5NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
619-8M0048079 FITTINGFITTING
-
7NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
8891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
925-892317001 O-RINGO-RING
-
1010-895054 SCREW, (M4 x 16 MM)SCREW, (M4 x 16 MM)
-
118M0142578 GASKETGASKET
-
128M0083678 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
13895019 SEALSEAL
-
14895020 SEALSEAL
-
158M6000639 SENSORSENSOR
-
1654-13791 CLAMP, (15.7 mm), Map Sensor to BootCLAMP, (15.7 mm), Map Sensor to Boot
-
17892952500 BOOTBOOT
-
1854-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
1910-8M0103807 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
208M0043469 FUEL RAIL KITFUEL RAIL KIT
-
21895028A02 VALVE, SchraderVALVE, Schrader
-
2225-8M0038304 O-RINGO-RING
-
238M0038303 BRACKETBRACKET
-
2410-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
25895024 BRACKETBRACKET
-
2610-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
27842915T01 INJECTOR ASSEMBLY, FuelINJECTOR ASSEMBLY, Fuel
-
2825-851889 O-RINGO-RING
-
29895025 DAMPERDAMPER
-
3025-851889 O-RINGO-RING
-
3132-895029A01 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
3212-895055 WASHERWASHER
-
3325-895057 O-RINGO-RING
-
34895027 BRACKETBRACKET
-
3510-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
368M6000634 SENSOR, Oil PressureSENSOR, Oil Pressure
-
3710-895053 SCREW, (M6 x 15)SCREW, (M6 x 15)
