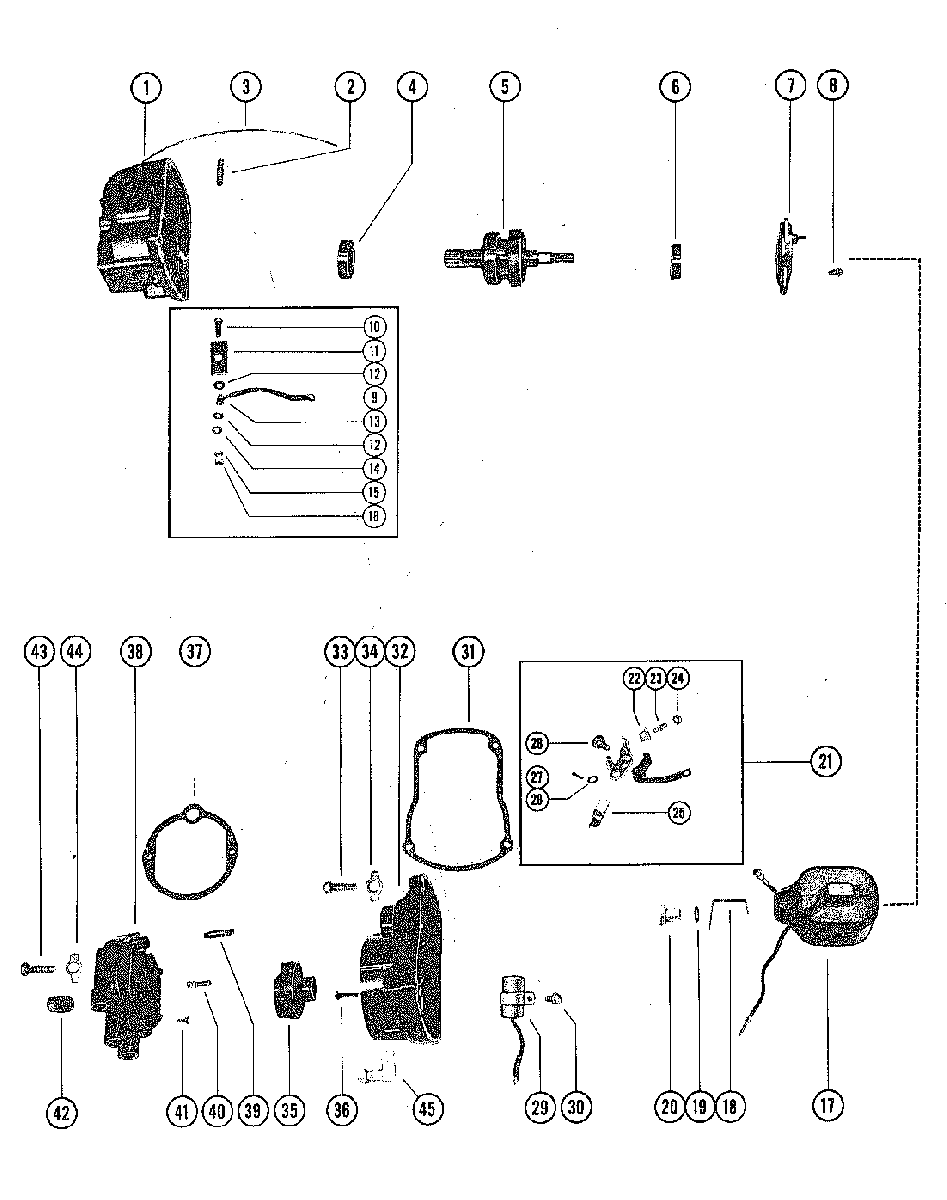

MAGNETO ASSEMBLY (INTERNAL PARTS) для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • -
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4 D-1) SEE NOTE BELOW
    MAGNETO ASSEMBLY, COMPLETE (4 D-1) SEE NOTE BELOW
  • -
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4 D-2) SEE NOTE BELOW
    MAGNETO ASSEMBLY, COMPLETE (4 D-2) SEE NOTE BELOW
  • -
    394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4 D-3) SEE NOTE BELOW
    MAGNETO ASSEMBLY, COMPLETE (4 D-3) SEE NOTE BELOW
  • 1
    394-1570A1 FRAME, MAGNETO HOUSING
    N.L.A.-ORDER A-394-1570A1 FRAME ASSEMBLY
    FRAME, MAGNETO HOUSING
    N.L.A.-ORDER A-394-1570A1 FRAME ASSEMBLY
  • 1
    394-1570 FRAME, MAGNETO HOUSING
    FRAME, MAGNETO HOUSING
  • 2
    10-25510 SCREW, SET-COIL BRIDGE
    SCREW, SET-COIL BRIDGE
  • 3
    394-1051 LOCKWIRE, COIL BRIDGE SET SCREW
    LOCKWIRE, COIL BRIDGE SET SCREW
  • 4
    30-24998 BEARING, BALL (DRIVE END)
    BEARING, BALL (DRIVE END)
  • 5
    394-1067A1 MAGNETO ROTOR AND SHAFT
    MAGNETO ROTOR AND SHAFT
  • 6
    30-49090 BEARING, BALL (OPPOSITE DRIVE END)
    BEARING, BALL (OPPOSITE DRIVE END)
  • 7
    394-1637A1 SUPPORT, BALL BEARING
    SUPPORT, BALL BEARING
  • 7
    394-1637 SUPPORT, BALL BEARING
    SUPPORT, BALL BEARING
  • 8
    10-25509 SCREW AND LOCKWASHER, SUPPORT TO FRAME
    SCREW AND LOCKWASHER, SUPPORT TO FRAME
  • 9
    84-60466A13 WIRE ASSEMBLY, PRIMARY GROUND LEAD
    WIRE ASSEMBLY, PRIMARY GROUND LEAD
  • 10
    10-46718 SCREW, PRIMARY GROUND (#8)
    SCREW, PRIMARY GROUND (#8)
  • 10
    10-29182 SCREW, PRIMARY GROUND (#10)
    SCREW, PRIMARY GROUND (#10)
  • --
    12-30267 WASHER, PRIMARY GROUND TERMINAL HOLDING
    WASHER, PRIMARY GROUND TERMINAL HOLDING
  • 11
    394-1579 INSULATOR, PRIMARY GROUND TERMINAL
    INSULATOR, PRIMARY GROUND TERMINAL
  • 12
    12-25719 WASHER, INSULATING-PRIMARY GROUND SCREW
    WASHER, INSULATING-PRIMARY GROUND SCREW
  • 12
    12-29099 WASHER, INSULATING-PRIMARY GROUND SCREW
    WASHER, INSULATING-PRIMARY GROUND SCREW
  • 13
    23-25512 BUSHING, INSULATIN-HOUSING FRAME
    BUSHING, INSULATIN-HOUSING FRAME
  • 13
    23-62769 BUSHING, INSULATING-HOUSING FRAME
    BUSHING, INSULATING-HOUSING FRAME
  • 14
    12-20192 WASHER, PRIMARY GROUND SCREW
    WASHER, PRIMARY GROUND SCREW
  • 14
    12-26014 WASHER, PRIMARY GROUND SCREW
    WASHER, PRIMARY GROUND SCREW
  • 15
    11-28656 NUT, LOCK-PRIMARY GROUND SCREW
    NUT, LOCK-PRIMARY GROUND SCREW
  • 15
    11-24656 NUT, LOCK-PRIMARY GROUND SCREW
    NUT, LOCK-PRIMARY GROUND SCREW
  • 16
    11-21923T NUT, PRIMARY GROUND SCREW
    NUT, PRIMARY GROUND SCREW
  • 16
    11-68219 NUT, PRIMARY GROUND SCREW
    NUT, PRIMARY GROUND SCREW
  • 17
    394-1128A1 COIL ASSEMBLY
    COIL ASSEMBLY
  • 18
    394-1050 CLIP, COIL-HIGH TENSION
    CLIP, COIL-HIGH TENSION
  • 19
    13-23836 LOCKWASHER, COIL TERMINAL
    LOCKWASHER, COIL TERMINAL
  • 20
    394-1131 NUT, COIL CLIP FASTENING
    NUT, COIL CLIP FASTENING
  • 21
    394-1100A3 BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • --
    394-1163 GROMMET, PLASTIC-BREAKER BRACKET
    GROMMET, PLASTIC-BREAKER BRACKET
  • --
    10-26008 SCREW, BREAKER TERMINAL
    SCREW, BREAKER TERMINAL
  • --
    13-26994 LOCKWASHER, BREAKER TERMINAL SCREW
    LOCKWASHER, BREAKER TERMINAL SCREW
  • --
    394-1106A1 HOLDER AND CAM WICK ASSEMBLY
    HOLDER AND CAM WICK ASSEMBLY
  • 21
    393-1504A11 BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • 22
    393-1586 GROMMET, PLASTIC-BREAKER BRACKET
    GROMMET, PLASTIC-BREAKER BRACKET
  • 23
    16-29230 STUD, PRIMARY LEAD AND TENSION SPRING FASTENING
    STUD, PRIMARY LEAD AND TENSION SPRING FASTENING
  • 24
    11-29236 NUT, PRIMARY LEAD FASTENING
    NUT, PRIMARY LEAD FASTENING
  • 25
    394-1106A1 HOLDER AND CAM WICK ASSEMBLY
    HOLDER AND CAM WICK ASSEMBLY
  • 26
    12-26439 WASHER, BREAKER PIVOT PIN
    WASHER, BREAKER PIVOT PIN
  • 27
    18-26953 COTTPER PIN, BREAKER TO PIVOT PIN
    COTTPER PIN, BREAKER TO PIVOT PIN
  • 28
    10-20597 SCREW, BREAKER HOLDER TO HOUSING
    SCREW, BREAKER HOLDER TO HOUSING
  • --
    12-25944 WASHER, BREAKER ARM
    WASHER, BREAKER ARM
  • --
    18-25723 COTTER PIN (HAIR), BRACKET ARM
    COTTER PIN (HAIR), BRACKET ARM
  • --
    10-22032 SCREW, BRACKET SUPPORT
    SCREW, BRACKET SUPPORT
  • --
    12-20192 WASHER, BRACKET SUPPORT SCREW
    WASHER, BRACKET SUPPORT SCREW
  • --
    10-25509 SCREW AND LOCKWASHER, BRACKET LOCKING
    SCREW AND LOCKWASHER, BRACKET LOCKING
  • 29
    394-1130A1 CONDENSER
    CONDENSER
  • 30
    10-25509 SCREW AND LOCKWASHER, CONDENSER FASTENING
    SCREW AND LOCKWASHER, CONDENSER FASTENING
  • 31
    27-25724 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 31
    27-29166 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 32
    394-1577A2 COVER, MAGNETO
    COVER, MAGNETO
  • 32
    394-1577A2 COVER, MAGNETO
    COVER, MAGNETO
  • 33
    10-32651 SCREW, COVER TO FRAME
    SCREW, COVER TO FRAME
  • 33
    10-29418 SCREW, COVER TO FRAME
    SCREW, COVER TO FRAME
  • 34
    14-38359 TAB WASHER, COVER FASTENING SCREW
    TAB WASHER, COVER FASTENING SCREW
  • 35
    394-2602A1 MAGNETO ROTOR ASSEMBLY
    MAGNETO ROTOR ASSEMBLY
  • 36
    394-1110 CLIP, SPRING
    CLIP, SPRING
  • 37
    27-25725 GASKET, END CAP COVER
    GASKET, END CAP COVER
  • 38
    394-1561A2 END CAP COVER ASSEMBLY
    END CAP COVER ASSEMBLY
  • 39
    394-1065A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 40
    394-1056A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 41
    10-25517 SCREW, HIGH TENSION CABLE FASTENING
    SCREW, HIGH TENSION CABLE FASTENING
  • 42
    29121 PIPE PLUG, END CAP COVER
    PIPE PLUG, END CAP COVER
  • 43
    10-28259 SCREW, END CAP COVER TO MAGNETO COVER
    SCREW, END CAP COVER TO MAGNETO COVER
  • 43
    10-29418 SCREW, END CAP COVER TO MAGNETO COVER
    SCREW, END CAP COVER TO MAGNETO COVER
  • 44
    14-38359 TAB WASHER, COVER FASTENING SCREW
    TAB WASHER, COVER FASTENING SCREW
  • 45
    22-996642 ELBOW, PLASTIC-MAGNETO COVER VENT
    ELBOW, PLASTIC-MAGNETO COVER VENT
