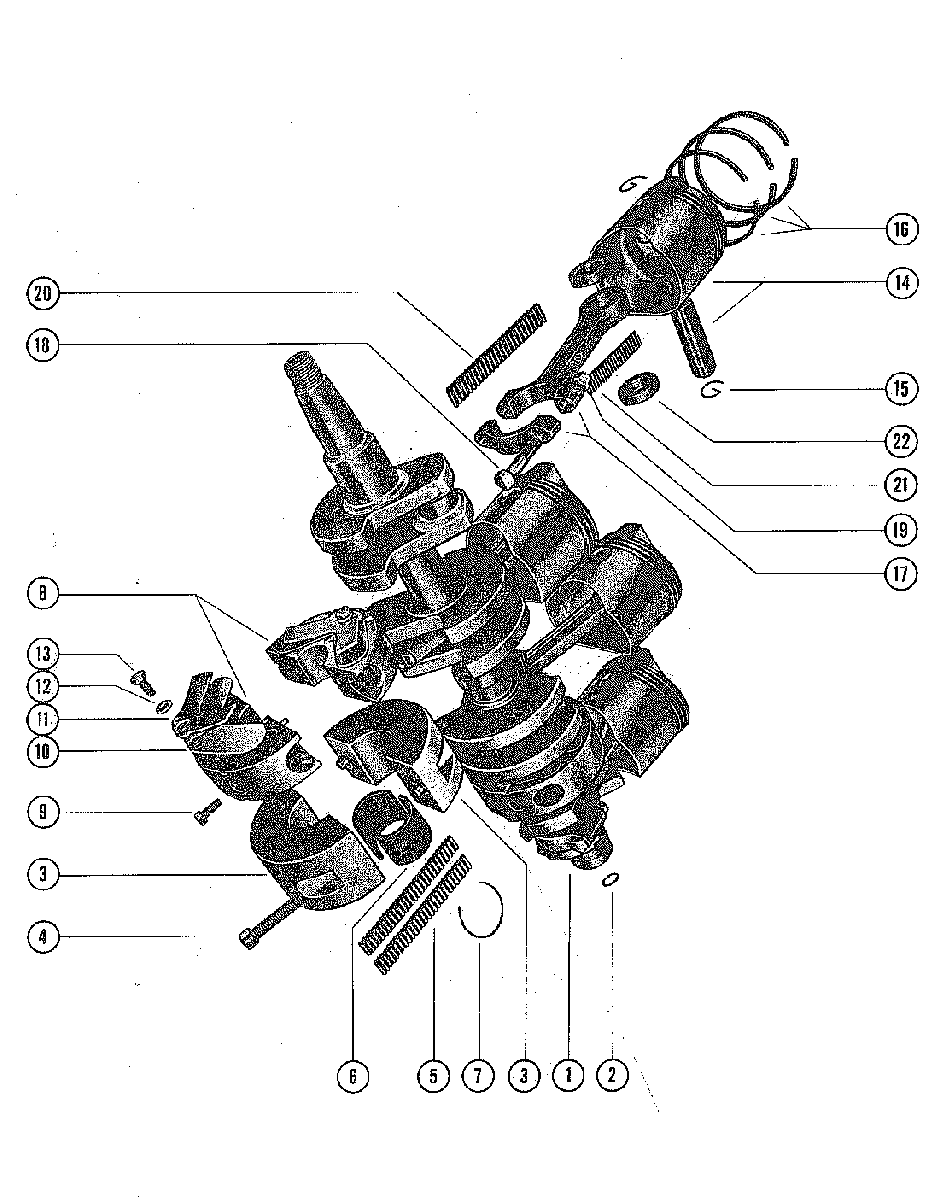

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • -
    400-2976A2 CRANKSHAFT
    FOR REPLACEMENT ORDER A-400-1730 CRANKSHAFT AND C-25-29619 "O" RING. SERIAL 00000000-01271993
    CRANKSHAFT
    FOR REPLACEMENT ORDER A-400-1730 CRANKSHAFT AND C-25-29619 "O" RING. SERIAL 00000000-01271993
  • -
    20043 OILER, FELT
    FOR REPLACEMENT ORDER A-400-1730 CRANKSHAFT AND C-25-29619 "O" RING. SERIAL 00000000-01271993
    OILER, FELT
    FOR REPLACEMENT ORDER A-400-1730 CRANKSHAFT AND C-25-29619 "O" RING. SERIAL 00000000-01271993
  • 1
    400-2976A2 CRANKSHAFT
    CRANKSHAFT
  • 2
    20043 OILER, FELT - DRIVE SHAFT SPLINE (NOT AS SHOWN)
    OILER, FELT - DRIVE SHAFT SPLINE (NOT AS SHOWN)
  • 2
    25-29619 "O"RING, DRIVE SHAFT SPLINE
    "O"RING, DRIVE SHAFT SPLINE
  • 3
    500-5345A4 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • -
    17-20032 DOWEL PIN, CENTER AMIN BEARING
    DOWEL PIN, CENTER AMIN BEARING
  • 4
    10-28666 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 5
    29-20046T BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    20047 RACE, OUTER
    RACE, OUTER
  • 7
    53-20048 RING, SNAP - OUTER RACE CLAMPING
    RING, SNAP - OUTER RACE CLAMPING
  • -
    17-20379 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 8
    527-1619A4 MAIN BEARING ASSEMBLY (VALVE TYPE)
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • -
    17-20032 DOWEL PIN, MAIN BEARING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    DOWEL PIN, MAIN BEARING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 9
    10-22654 SCREW, MAIN BEARING CLAMPING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    SCREW, MAIN BEARING CLAMPING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 10
    34-88498A1 REED SET, MATCHED - MAIN BEARING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    REED SET, MATCHED - MAIN BEARING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 11
    34-20053 REED STOP, MAIN BEARING REED VALVES
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    REED STOP, MAIN BEARING REED VALVES
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 12
    12-26014 WASHER, REED STOP MOUNTING SCREW
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    WASHER, REED STOP MOUNTING SCREW
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 13
    10-20055 SCREW, REED STOP MOUNTING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
    SCREW, REED STOP MOUNTING
    BRONZE - NO LONGER AVAILABLE, ORDER A-527-1619A1
  • 8
    527-1619A4 MAIN BEARING ASSEMBLY (VALVE TYPE)
    ALUMINUM
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    ALUMINUM
  • -
    17-20032 DOWEL PIN, MAIN BEARING
    ALUMINUM
    DOWEL PIN, MAIN BEARING
    ALUMINUM
  • 9
    10-26184 SCREW, MAIN BEARING CLAMPING
    ALUMINUM
    SCREW, MAIN BEARING CLAMPING
    ALUMINUM
  • -
    11-24652 NUT, MAIN BEARING CLAMPING SCREW
    ALUMINUM
    NUT, MAIN BEARING CLAMPING SCREW
    ALUMINUM
  • 10
    34-88498A1 REED SET, MATCHED - MAIN BEARING
    ALUMINUM
    REED SET, MATCHED - MAIN BEARING
    ALUMINUM
  • 11
    34-20053 REED STOP, MAIN BEARING REED VALVES
    ALUMINUM
    REED STOP, MAIN BEARING REED VALVES
    ALUMINUM
  • 13
    10-77280 SCREW, REED STOP MOUNTING
    ALUMINUM
    SCREW, REED STOP MOUNTING
    ALUMINUM
  • --
    11-29469 NUT, REED STOP MOUNTING SCREW
    ALUMINUM
    NUT, REED STOP MOUNTING SCREW
    ALUMINUM
  • 14
    726-1611A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 15
    40-20057 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 16
    39-20058 RING, PISTON
    RING, PISTON
  • 17
    600-2748A3 CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
    CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
  • 18
    10-45379 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 19
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 20
    29-20046T BEARING, NEEDLE - CRANKPIN
    BEARING, NEEDLE - CRANKPIN
  • 21
    29-20063 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 22
    12-20064 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    726-1612A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
  • --
    39-20992A12 RING, PISTON (.015 OVERSIZE)
    RING, PISTON (.015 OVERSIZE)
