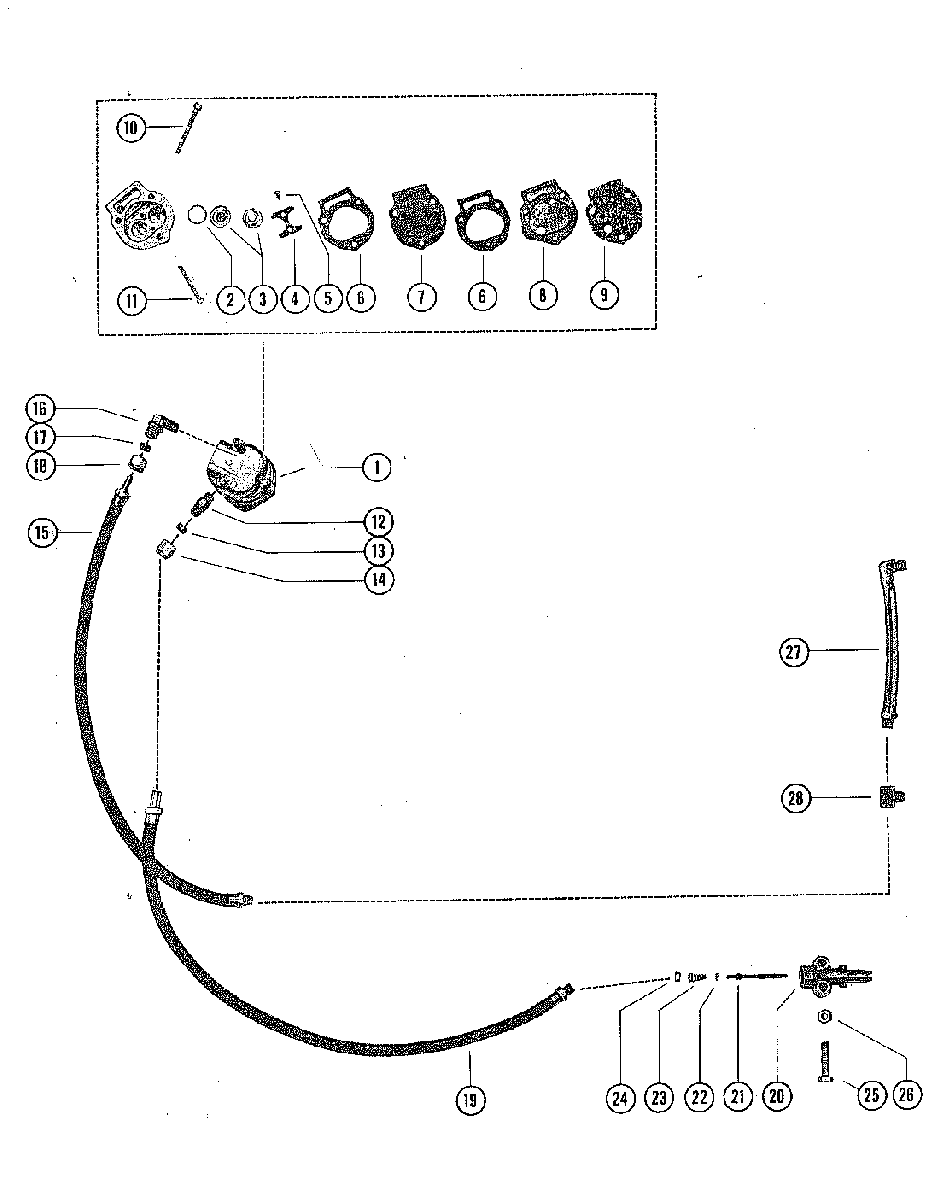

FUEL PUMP ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • 1
    23009A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 1
    29178A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 1
    30269A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    27-23005 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK
    VALVE, CHECK
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • -
    22-390721 PLUG, PIPE - FUEL PUMP
    PLUG, PIPE - FUEL PUMP
  • 8
    23008 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 9
    27-30276 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 10
    10-25211 SCREW, FUEL PUMP MOUNTIN (1-7/8")
    SERIAL 00000000-01261034
    SCREW, FUEL PUMP MOUNTIN (1-7/8")
    SERIAL 00000000-01261034
  • 10
    10-29126 SCREW, FUEL PUMP MOUNTING (1-3/4")
    SERIAL 01261035-09999999
    SCREW, FUEL PUMP MOUNTING (1-3/4")
    SERIAL 01261035-09999999
  • 11
    10-29029 SCREW, FUEL PUMP MOUNTING (1-1/2")
    SCREW, FUEL PUMP MOUNTING (1-1/2")
  • --
    22-23595 CONNECTOR, PUMP OUTLET TO ELBOW
    SERIAL 00000000-01261034
    CONNECTOR, PUMP OUTLET TO ELBOW
    SERIAL 00000000-01261034
  • --
    22-24690 ELBOW, PUMP OUTLET TO FUEL LINE
    SERIAL 00000000-01261034
    ELBOW, PUMP OUTLET TO FUEL LINE
    SERIAL 00000000-01261034
  • 12
    22-22993 CONNECTOR, FUEL LINE TO FUEL PUMP INLET
    CONNECTOR, FUEL LINE TO FUEL PUMP INLET
  • 13
    22-22946 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • 14
    22-22948 NUT, ELBOW
    NUT, ELBOW
  • 15
    32-30035 FUEL LINE, FUEL PUMP TO LOWER FILTER
    FUEL LINE, FUEL PUMP TO LOWER FILTER
  • --
    22-22995 ELBOW, FUEL PUMP INLET
    ELBOW, FUEL PUMP INLET
  • 16
    22-22995 ELBOW, FUEL PUMP OUTLET TO FUEL LINE
    ELBOW, FUEL PUMP OUTLET TO FUEL LINE
  • 17
    22-22946 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • 18
    22-22948 NUT, ELBOW
    NUT, ELBOW
  • 19
    32-30036 FUEL LINE, FUEL PUMP TO ADAPTOR
    FUEL LINE, FUEL PUMP TO ADAPTOR
  • 19
    32-30036 FUEL LINE, FUEL PUMP TO ADAPTOR
    FUEL LINE, FUEL PUMP TO ADAPTOR
  • 20
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 21
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 22
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 23
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 24
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 25
    10-20784 SCREW, ADAPTOR TO BOTTOM COWL
    SCREW, ADAPTOR TO BOTTOM COWL
  • 26
    11-24652 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • --
    22-59351 ELBOW, UPPER FILTER TO FUEL LINE
    SERIAL 00000000-01261034
    ELBOW, UPPER FILTER TO FUEL LINE
    SERIAL 00000000-01261034
  • --
    22-22949 ELBOW, UPPER FILTER TO FUEL LINE
    SERIAL 01261035-09999999
    ELBOW, UPPER FILTER TO FUEL LINE
    SERIAL 01261035-09999999
  • 27
    32-25228 FUEL LINE, UPPER TO LOWER FILTER (5-1/2")
    SERIAL 00000000-01261034
    FUEL LINE, UPPER TO LOWER FILTER (5-1/2")
    SERIAL 00000000-01261034
  • 27
    32-38527 FUEL LINE, UPPER TO LOWER FILTER
    SERIAL 01261035-09999999
    FUEL LINE, UPPER TO LOWER FILTER
    SERIAL 01261035-09999999
  • 27
    32-30040 FUEL LINE, UPPER TO LOWER FILTER
    FUEL LINE, UPPER TO LOWER FILTER
  • 28
    22-23763 TEE ASSEMBLY, LOWER FILTER
    SERIAL 00000000-01261034
    TEE ASSEMBLY, LOWER FILTER
    SERIAL 00000000-01261034
  • 28
    22-25956 TEE ASSEMBLY, LOWER FILTER
    SERIAL 01261035-09999999
    TEE ASSEMBLY, LOWER FILTER
    SERIAL 01261035-09999999
  • --
    22-22946 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • --
    22-22948 NUT, FILTER TEE
    NUT, FILTER TEE
