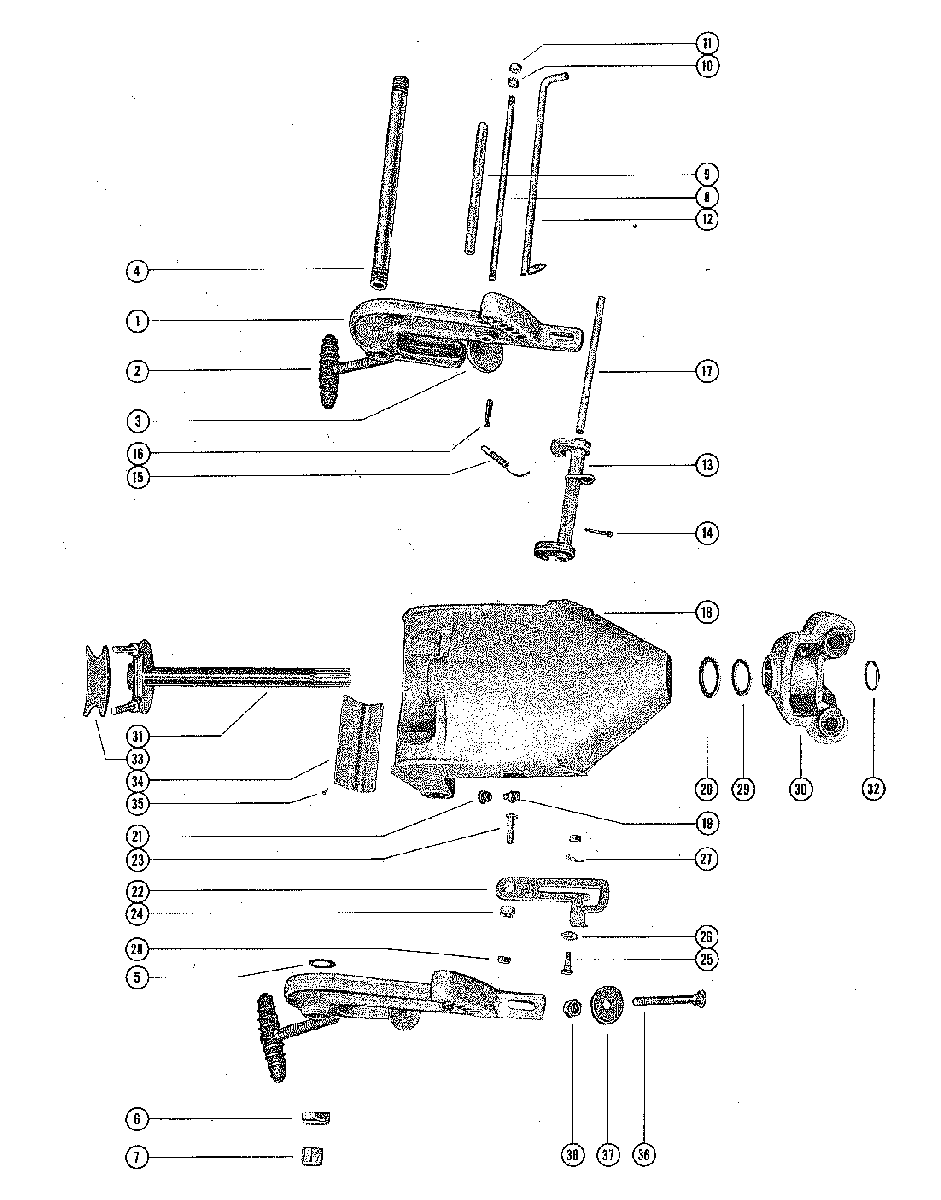

CLAMP AND SWIVEL BRACKET для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • 1
    1427-1810A2 CLAMP BRACKET ASSEMBLY (SHORT SHAFT)
    CLAMP BRACKET ASSEMBLY (SHORT SHAFT)
  • 1
    1440-1464A1 CLAMP BRACKET ASSEMBLEY (LONG SHAFT)
    CLAMP BRACKET ASSEMBLEY (LONG SHAFT)
  • 2
    22477A4 THUMB SCREW ASSEMBLY (SHORT SHAFT)
    THUMB SCREW ASSEMBLY (SHORT SHAFT)
  • 2
    28403A3 THUMB SCREW ASSEMBLY (LONG SHAFT)
    THUMB SCREW ASSEMBLY (LONG SHAFT)
  • 3
    12-26227 WASHER, THUMB SCREW (SHORT SHAFT)
    WASHER, THUMB SCREW (SHORT SHAFT)
  • 3
    12-28404 WASHER, THUMB SCREW (LONG SHAFT)
    WASHER, THUMB SCREW (LONG SHAFT)
  • 4
    28122 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    15-25600 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
  • 6
    11-8M2014641 NUT, TILT TUBE
    NUT, TILT TUBE
  • 7
    25606 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • -
    54-25735 CLIP, SAFETY CHAIN (NO LONGER USED ON LATER ENGINES)
    CLIP, SAFETY CHAIN (NO LONGER USED ON LATER ENGINES)
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    26903A2 REVERSE LOCK ASSEMBLY (SHORT SHAFT)
    REVERSE LOCK ASSEMBLY (SHORT SHAFT)
  • 13
    26903A3 REVERSE LOCK ASSEMBLY (LONG SHAFT)
    REVERSE LOCK ASSEMBLY (LONG SHAFT)
  • 14
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 15
    24-20210 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 15
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 16
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 17
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 18
    1401-1080A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 18
    1442-1400A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 19
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 20
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 21
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • --
    20215 LEVER, TILT STOP - STARBOARD SIDE (SHORT SHAFT)
    LEVER, TILT STOP - STARBOARD SIDE (SHORT SHAFT)
  • --
    29056 LEVER, TILT STOP - STARBOARD SIDE (LONG SHAFT)
    LEVER, TILT STOP - STARBOARD SIDE (LONG SHAFT)
  • 22
    26864 LEVER, TILT STOP - PORT SIDE (SHORT SHAFT)
    LEVER, TILT STOP - PORT SIDE (SHORT SHAFT)
  • 22
    29057 LEVER, TILT STOP - PORT SIDE (LONG SHAFT)
    LEVER, TILT STOP - PORT SIDE (LONG SHAFT)
  • 23
    10-20217 SCREW, ANCHOR - TILT STOP LEVER (SHORT SHAFT)
    SCREW, ANCHOR - TILT STOP LEVER (SHORT SHAFT)
  • 23
    10-27791 SCREW, ANCHOR - TILT STOP LEVER (LONG SHAFT)
    SCREW, ANCHOR - TILT STOP LEVER (LONG SHAFT)
  • 24
    23-20216 SPACER, TILT STOP LEVER (SHORT SHAFT)
    SPACER, TILT STOP LEVER (SHORT SHAFT)
  • 24
    23-29055 SPACER, TILT STOP LEVER (LONG SHAFT)
    SPACER, TILT STOP LEVER (LONG SHAFT)
  • 25
    10-29237 SCREW, RETAINING - TILT STOP LEVER (SHORT SHAFT)
    SCREW, RETAINING - TILT STOP LEVER (SHORT SHAFT)
  • 25
    10-27790 SCREW, RETAINING - TILT STOP LEVER (LONG SHAFT)
    SCREW, RETAINING - TILT STOP LEVER (LONG SHAFT)
  • 26
    15-20473 SHIM, RETAINING SCREW - PORT SIDE
    SHIM, RETAINING SCREW - PORT SIDE
  • 27
    13-20846 WASHER, WAVE - RETAINING SCREW - PORT SIDE
    WASHER, WAVE - RETAINING SCREW - PORT SIDE
  • --
    12-20028 WSHER, ANCHOR AND RETAINING SCREW
    WSHER, ANCHOR AND RETAINING SCREW
  • --
    13-26992 LOCKWASHER, ANCHOR AND RETAINING SCREW
    LOCKWASHER, ANCHOR AND RETAINING SCREW
  • 28
    11-24652 NUT, ANCHOR AND RETAINING SCREW (.060)
    NUT, ANCHOR AND RETAINING SCREW (.060)
  • 29
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE
    WASHER, SWIVEL PIN TO BOTTOM YOKE
  • --
    12-27964 WSHER, SWIVEL PIN TO BOTTOM YOKE (.018)
    WSHER, SWIVEL PIN TO BOTTOM YOKE (.018)
  • 30
    30202A1 BOTTOM YOKE ASSEMBLY (SHORT SHAFT) - SEE NOTE BELOW
    BOTTOM YOKE ASSEMBLY (SHORT SHAFT) - SEE NOTE BELOW
  • 30
    30462A1 BOTTOM YOKE ASSEMBLY (LONG SHAFT)
    BOTTOM YOKE ASSEMBLY (LONG SHAFT)
  • 31
    17-27739A2 SWIVEL PIN AND TOP YOKE ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND TOP YOKE ASSEMBLY (SHORT SHAFT)
  • 31
    17-28419A4 SWIVEL PIN AND TOP YOKE ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND TOP YOKE ASSEMBLY (LONG SHAFT)
  • 32
    53-27743 RING, RETAINING - SWIVEL PIN (SHORT SHAFT)
    RING, RETAINING - SWIVEL PIN (SHORT SHAFT)
  • 32
    11-71956 NUT, SWIVEL PIN (LONG SHAFT) - NOT AS SHOWN
    NUT, SWIVEL PIN (LONG SHAFT) - NOT AS SHOWN
  • 33
    30711 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 34
    38-28850 SERIAL PLATE
    SERIAL PLATE
  • 34
    38-29533 SERIAL PLATE
    SERIAL PLATE
  • 34
    38-31056 SERIAL PLATE
    SERIAL PLATE
  • 35
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 36
    10-26483 BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM (SHORT SHAFT)
    BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM (SHORT SHAFT)
  • 36
    10-68298 BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM (LONG SHAFT)
    BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM (LONG SHAFT)
  • 37
    12-67981 WASHER, CARRIAGE BOLT (SHORT SHAFT)
    WASHER, CARRIAGE BOLT (SHORT SHAFT)
  • 37
    12-46765 WASHER, CARRIAGE BOLT (LONG SHAFT)
    WASHER, CARRIAGE BOLT (LONG SHAFT)
  • 38
    11-26484 NUT, CARRIAGE BOLT (SHORT SHAFT)
    NUT, CARRIAGE BOLT (SHORT SHAFT)
  • 38
    11-82670912 NUT, CARRIAGE BOLT (LONG SHAFT)
    NUT, CARRIAGE BOLT (LONG SHAFT)
