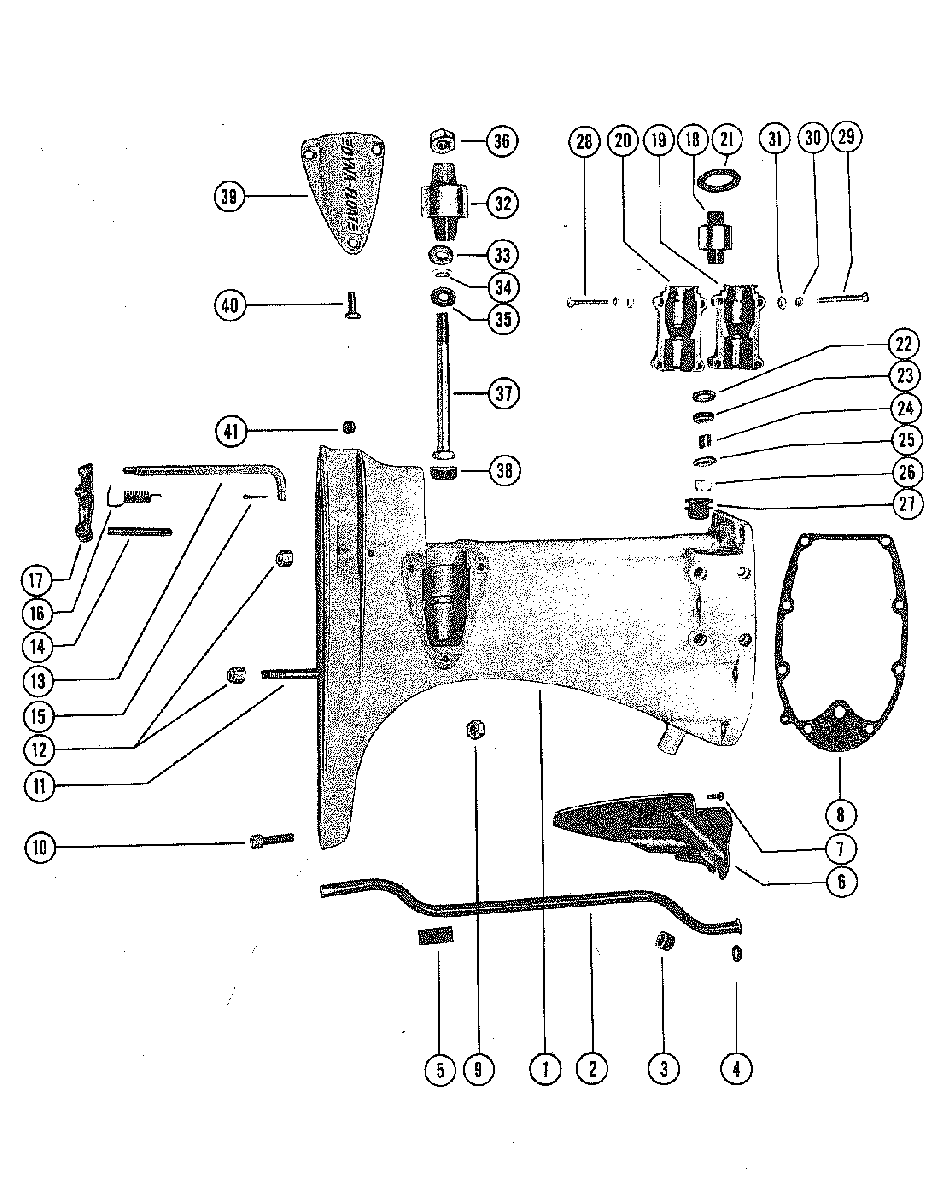

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • 1
    1522-1567 DRIVE SHAFT HOUSING (USE WITH 3/8" STUD) - SHORT SHAFT
    DRIVE SHAFT HOUSING (USE WITH 3/8" STUD) - SHORT SHAFT
  • 1
    1535-1566 DRIVE SHAFT HOUSING (USE WITH 3/8" STUD) - LONG SHAFT
    SERIAL 00000000-01260216
    DRIVE SHAFT HOUSING (USE WITH 3/8" STUD) - LONG SHAFT
    SERIAL 00000000-01260216
  • 1
    1522-1567 DRIVE SHAFT HOUSING (USE WITH 7/16" STUD) - SHORT SHAFT
    DRIVE SHAFT HOUSING (USE WITH 7/16" STUD) - SHORT SHAFT
  • 1
    1535-1566 DRIVE SHAFT HOUSING (USE WITH 7/16" STUD) - LONG SHAFT
    SERIAL 01260217-09999999
    DRIVE SHAFT HOUSING (USE WITH 7/16" STUD) - LONG SHAFT
    SERIAL 01260217-09999999
  • 2
    32-25187 TUBE, WATER INLET (SHORT SHAFT)
    TUBE, WATER INLET (SHORT SHAFT)
  • 2
    32-25076 TUBE, WATER INLET (LONG SHAFT)
    TUBE, WATER INLET (LONG SHAFT)
  • 3
    25-24961 RING, RUBBER - WATER INLET TUBE
    RING, RUBBER - WATER INLET TUBE
  • 4
    26-25192 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 5
    23-23651 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 6
    24945 BAFFLE, EXHAUST RELIEF (SHORT SHAFT)
    BAFFLE, EXHAUST RELIEF (SHORT SHAFT)
  • 6
    27898 BAFFLE, EXHAUST RELIEF (LONG SHAFT)
    BAFFLE, EXHAUST RELIEF (LONG SHAFT)
  • 7
    10-25255 SCREW, BAFFLE TO DRIVE SHAFT HOUSING
    SCREW, BAFFLE TO DRIVE SHAFT HOUSING
  • 8
    27-24899 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 9
    32445A1 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 10
    10-25093 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 11
    16-23650 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
  • 11
    16-29103 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
  • 12
    11-23161 NUT, GEAR HOUSING STUDS (3/8")
    NUT, GEAR HOUSING STUDS (3/8")
  • 12
    11-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (7/16")
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (7/16")
  • 13
    25190 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
  • 13
    28593 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
  • 14
    17-24887 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 15
    18-25191 COTTER PIN, PUSH ROD
    COTTER PIN, PUSH ROD
  • 16
    24-25122 SPRING, TENSION - PUSH ROD
    SPRING, TENSION - PUSH ROD
  • 17
    52920 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 18
    24926A1 UPPER MOUNT ASSEMBLY, UPPER
    UPPER MOUNT ASSEMBLY, UPPER
  • 19
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 20
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 21
    24929 PACKING, "U" CUP
    PACKING, "U" CUP
  • 22
    12-24889 WASHER, UPPER MOUNT STUD (17/32" I.D.)
    WASHER, UPPER MOUNT STUD (17/32" I.D.)
  • 23
    12-24891 WASHER, RUBBER - UPPER MOUNT STUD
    WASHER, RUBBER - UPPER MOUNT STUD
  • 24
    23-30474 SPACER, UPPER MOUNT STUD
    SPACER, UPPER MOUNT STUD
  • 25
    12-11367 WASHER, UPPER MOUNT STUD (25/64" I.D.)
    WASHER, UPPER MOUNT STUD (25/64" I.D.)
  • 26
    11-23161 NUT, UPPER MOUNT STUD
    NUT, UPPER MOUNT STUD
  • 27
    25305 CAP, RUBBER - UPPER MOUNT
    CAP, RUBBER - UPPER MOUNT
  • 28
    10-28772 SCREW, UPPER MOUNT COVER (1-1/2")
    SCREW, UPPER MOUNT COVER (1-1/2")
  • 29
    10-29389 SCREW, UPPER MOUNT COVER (1-7/8")
    SCREW, UPPER MOUNT COVER (1-7/8")
  • 30
    12-29245 WASHER, MOUNTING COVER SCREW
    WASHER, MOUNTING COVER SCREW
  • 31
    11-35888 NUT, MOUNTING COVER SCRW
    NUT, MOUNTING COVER SCRW
  • 32
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 33
    12-28053 WASHER, RUBBER - LOWER MOUNT
    WASHER, RUBBER - LOWER MOUNT
  • 34
    12-28051 WASHER, LOWER MOUNT
    WASHER, LOWER MOUNT
  • 35
    12-24872 WASHER, MOUNTING SCREW (1/16")
    USE WITH A-25178 BOTTOM YOKE
    WASHER, MOUNTING SCREW (1/16")
    USE WITH A-25178 BOTTOM YOKE
  • 35
    12-30119 WASHER, MOUNTING SCREW (1/8")
    USE WITH A-30202A1 BOTTOM YOKE
    WASHER, MOUNTING SCREW (1/8")
    USE WITH A-30202A1 BOTTOM YOKE
  • 36
    11-25096 NUT, MOUNTING SCREW
    NUT, MOUNTING SCREW
  • 37
    10-24874 SCREW, LOWER MOUNT (5-1/2")
    SCREW, LOWER MOUNT (5-1/2")
  • 38
    25067 BUMPER, RUBBER - MOUNTINS SCREW
    BUMPER, RUBBER - MOUNTINS SCREW
  • 39
    28241 COVER, LOWER MOUNT (PORT SIDE)
    COVER, LOWER MOUNT (PORT SIDE)
  • 39
    28242 COVER, LOWER MOUNT (STARBOARD SIDE)
    COVER, LOWER MOUNT (STARBOARD SIDE)
  • --
    12-20084 WASHER, LOWER MOUNT COVER SCREW
    WASHER, LOWER MOUNT COVER SCREW
  • 40
    10-28782 SCREW, LOWER MOUNT COVER FASTENING
    SCREW, LOWER MOUNT COVER FASTENING
  • 40
    10-29256 SCREW, LOWER MOUNT COVER FASTENING
    SCREW, LOWER MOUNT COVER FASTENING
  • 41
    22-390721 PLUG, GREASE - REVERSE LOCK HOLE
    PLUG, GREASE - REVERSE LOCK HOLE
