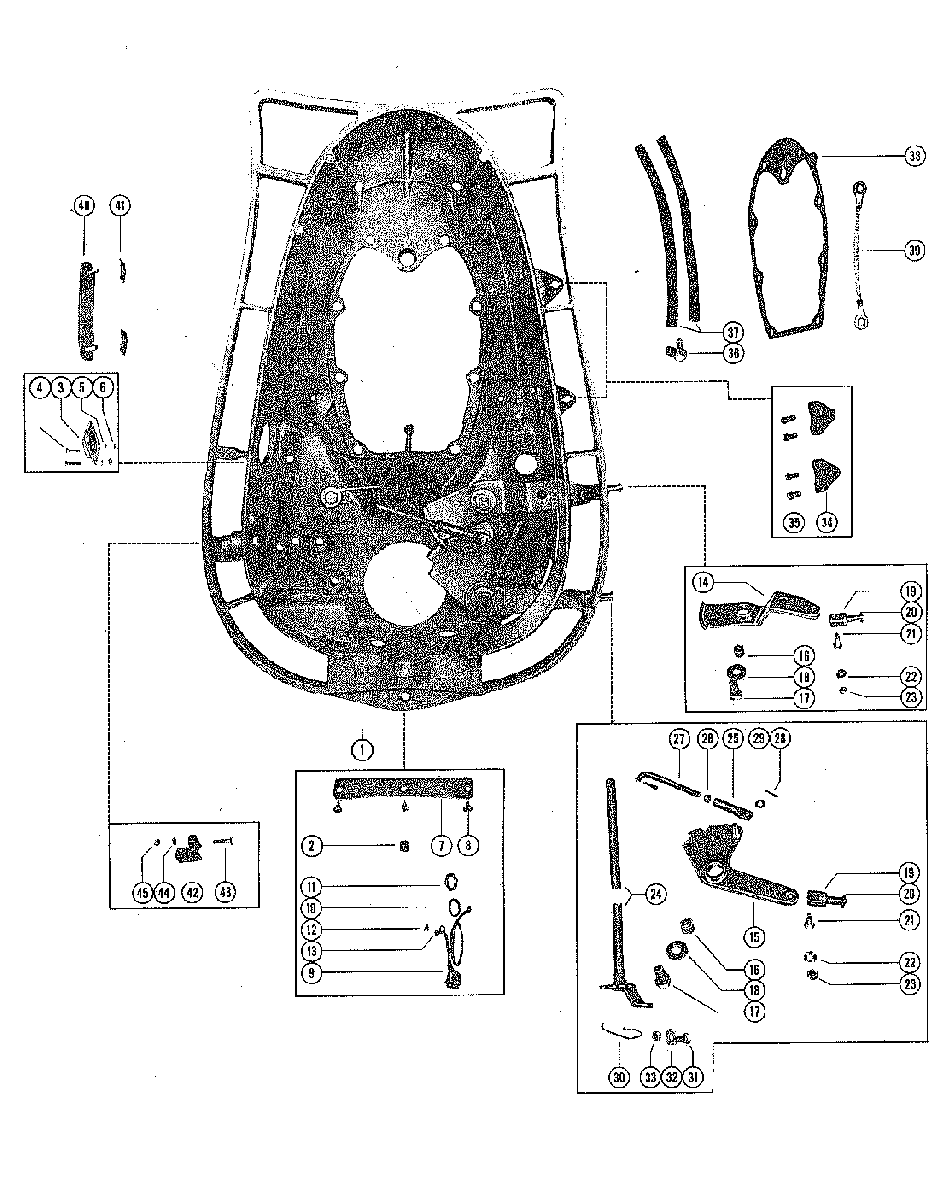

BOTTOM COWL ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139

  • №
    Артикул
    Название
  • 1
    103-1544A1 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • -
    23-25194 BUSHING, OILITE - SHIFT SHAFT
    BUSHING, OILITE - SHIFT SHAFT
  • 2
    21041 INSERT, TAP LOCK
    INSERT, TAP LOCK
  • 3
    29206 PLUG, BOTTOM COWL HARNESS HOLE
    PLUG, BOTTOM COWL HARNESS HOLE
  • 4
    10-45893 SCREW, PLUG TO BOTTOM COWL
    SCREW, PLUG TO BOTTOM COWL
  • 5
    13-26995 LOCKWASHER, PLUG FASTENING SCREW
    LOCKWASHER, PLUG FASTENING SCREW
  • 6
    11-26419 NUT, PLUG FASTENING SCREW
    NUT, PLUG FASTENING SCREW
  • -
    37-23076 DECAL, MERCELECTRIC - BOTTOM COWL
    DECAL, MERCELECTRIC - BOTTOM COWL
  • 7
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 8
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 9
    21104A2 CONNECTOR BASE ASSEMBLY
    CONNECTOR BASE ASSEMBLY
  • 10
    13-21972 LOCKWSHER, CONNECOTR BASE
    LOCKWSHER, CONNECOTR BASE
  • 11
    11-21971 NUT, CONNECTOR BASE FASTENING
    NUT, CONNECTOR BASE FASTENING
  • 12
    54-25231 CLIP, CONNECTOR BASE LEAD WIRE
    CLIP, CONNECTOR BASE LEAD WIRE
  • 13
    10-21106 SCREW, LEAD WIRE CLIP TO BOTTOM COWL
    SCREW, LEAD WIRE CLIP TO BOTTOM COWL
  • 14
    29532A1 BRACKET, MAGNETO CONTROL (LOWER)
    SERIAL 00000000-01269884
    BRACKET, MAGNETO CONTROL (LOWER)
    SERIAL 00000000-01269884
  • 14
    29532A1 BRACKET, MAGNETO CONTROL (LOWER)
    SERIAL 01269885-09999999
    BRACKET, MAGNETO CONTROL (LOWER)
    SERIAL 01269885-09999999
  • 14
    29532 BRACKET, MAGNETO CONTROL (LOWER)
    BRACKET, MAGNETO CONTROL (LOWER)
  • --
    24-24826 SPRING, CONTROL BRACKET TENSION
    SERIAL 00000000-01269884
    SPRING, CONTROL BRACKET TENSION
    SERIAL 00000000-01269884
  • 15
    28253 LEVER, SHIFT CONTROL
    SERIAL 00000000-01269884
    LEVER, SHIFT CONTROL
    SERIAL 00000000-01269884
  • 15
    29391 LEVER, SHIFT CONTROL
    SERIAL 01269885-09999999
    LEVER, SHIFT CONTROL
    SERIAL 01269885-09999999
  • 15
    30612 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • --
    23-20008 BUSHING, MAGNETO BRACKET AND SHIFT LEVER (NYLON)
    SERIAL 00000000-01269884
    BUSHING, MAGNETO BRACKET AND SHIFT LEVER (NYLON)
    SERIAL 00000000-01269884
  • --
    23-21008 BUSHING, MAGNETO BRACKET AND SHIFT LEVER (STEEL)
    SERIAL 00000000-01269884
    BUSHING, MAGNETO BRACKET AND SHIFT LEVER (STEEL)
    SERIAL 00000000-01269884
  • 16
    23-29529 SLEEVE, MAGNETO BRACKET AND SHIFT LEVER
    SLEEVE, MAGNETO BRACKET AND SHIFT LEVER
  • 17
    10-21077 SCREW, BRACKET AND LEVER FASTENING
    SERIAL 00000000-01269884
    SCREW, BRACKET AND LEVER FASTENING
    SERIAL 00000000-01269884
  • 17
    10-37612 SCREW, BRACKET AND LEVER FASTENING
    SCREW, BRACKET AND LEVER FASTENING
  • 18
    12-68300 WSHER, BRACKET AND LEVER FASTENING SCREW
    SERIAL 00000000-01269884
    WSHER, BRACKET AND LEVER FASTENING SCREW
    SERIAL 00000000-01269884
  • 18
    12-8M0042641 WASHER, BRACKET AND LEVER FASTENING SCREW
    WASHER, BRACKET AND LEVER FASTENING SCREW
  • --
    16-29394 STUD, MAGNETO BRACKET AND SHIFT LEVER
    SERIAL 01269885-09999999
    STUD, MAGNETO BRACKET AND SHIFT LEVER
    SERIAL 01269885-09999999
  • --
    12-8M0042641 WASHER, BRACKET AND LEVER FASTENING STUD
    SERIAL 01269885-09999999
    WASHER, BRACKET AND LEVER FASTENING STUD
    SERIAL 01269885-09999999
  • --
    11-23161 NUT, BRACKET AND LEVER FASTENING
    SERIAL 01269885-09999999
    NUT, BRACKET AND LEVER FASTENING
    SERIAL 01269885-09999999
  • 19
    17-30978A1 PIN ASSEMBLY, CLEVIS YOKE
    PIN ASSEMBLY, CLEVIS YOKE
  • 20
    17-239281 ROLL PIN, CLEVIS YOKE PIN
    ROLL PIN, CLEVIS YOKE PIN
  • 21
    10-20584 SCREW, CLEVIS PIN FASTENING
    SCREW, CLEVIS PIN FASTENING
  • 22
    13-29402 WASHER, WAVE - IN FASTENING SCREW
    WASHER, WAVE - IN FASTENING SCREW
  • --
    12-847883 WASHER, PIN FASTENING SCREW
    WASHER, PIN FASTENING SCREW
  • 23
    11-20110 NUT, PIN FASTENING SCREW
    NUT, PIN FASTENING SCREW
  • 23
    11-826709106 NUT, PIN FASTENING SCREW
    NUT, PIN FASTENING SCREW
  • 24
    25180 SHAFT, SHIFT (UPPER) - SHORT SHAFT
    SHAFT, SHIFT (UPPER) - SHORT SHAFT
  • 24
    25163 SHAFT, SHIFT (UPPER) - LONG SHAFT
    SHAFT, SHIFT (UPPER) - LONG SHAFT
  • 25
    27714 ROD (SLEEVE), SHIFT CONTROL END
    ROD (SLEEVE), SHIFT CONTROL END
  • 26
    11-25168 NUT, SHIFT SHAFT END ADJUSTING
    NUT, SHIFT SHAFT END ADJUSTING
  • 27
    25134 ROD, LINK - SHIFT SHAFT END
    ROD, LINK - SHIFT SHAFT END
  • 28
    18-210711 COTTER PIN, LINK ROD TO SHIFT SHAFT
    COTTER PIN, LINK ROD TO SHIFT SHAFT
  • 29
    12-20583 WASHER, LINK ROD
    WASHER, LINK ROD
  • 29
    12-20583 WASHER, LINK ROD
    WASHER, LINK ROD
  • 30
    24-25065 SPRING, DETENT
    SPRING, DETENT
  • 31
    10-98256 SCREW, DETENT SPRING TO BOTTOM COWL
    SCREW, DETENT SPRING TO BOTTOM COWL
  • 32
    12-69057 WASHER, DETENT SPRING SCREW
    WASHER, DETENT SPRING SCREW
  • 33
    11-20013 NUT, DETENT SPRING SCREW
    NUT, DETENT SPRING SCREW
  • 33
    11-20184 NUT, DETENT SPRING SCREW
    NUT, DETENT SPRING SCREW
  • 34
    20557 BRACKET, CABLE END ANCHOR
    BRACKET, CABLE END ANCHOR
  • 35
    10-69022 SCREW, ANCHOR BRACKET TO BOTTOM COWL
    SCREW, ANCHOR BRACKET TO BOTTOM COWL
  • 35
    10-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWL
    SCREW, ANCHOR BRACKET TO BOTTOM COWL
  • --
    13-20554 LOCKWASHER, ANCHOR BRACKET SCREW
    LOCKWASHER, ANCHOR BRACKET SCREW
  • 36
    22-996642 ELBOW, PLASTIC - MAGNETO VENT TUBE
    ELBOW, PLASTIC - MAGNETO VENT TUBE
  • 37
    32-8M0108355 TUBE, VENT - MAGNETO
    TUBE, VENT - MAGNETO
  • 38
    27-20390 GASKET, POWERHEAD TO BOTTOM COWL
    GASKET, POWERHEAD TO BOTTOM COWL
  • 39
    30109 GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO COWL
    GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO COWL
  • 40
    38-27720 PLATE, TRADE MARK - BOTTOM COWL
    PLATE, TRADE MARK - BOTTOM COWL
  • 41
    53-25539 FASTENER, PLATE TO BOTTOM COWL
    FASTENER, PLATE TO BOTTOM COWL
  • 42
    26552 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 43
    10-20639 SCREW, HARNESS SUPPORT TO BOTTOM COWL
    SCREW, HARNESS SUPPORT TO BOTTOM COWL
  • 44
    12-20084 WASHER, HARNESS SUPPORT FASTENING SCREW
    WASHER, HARNESS SUPPORT FASTENING SCREW
  • 45
    11-29250 NUT, HARNESS SUPPORT SCREW
    NUT, HARNESS SUPPORT SCREW
