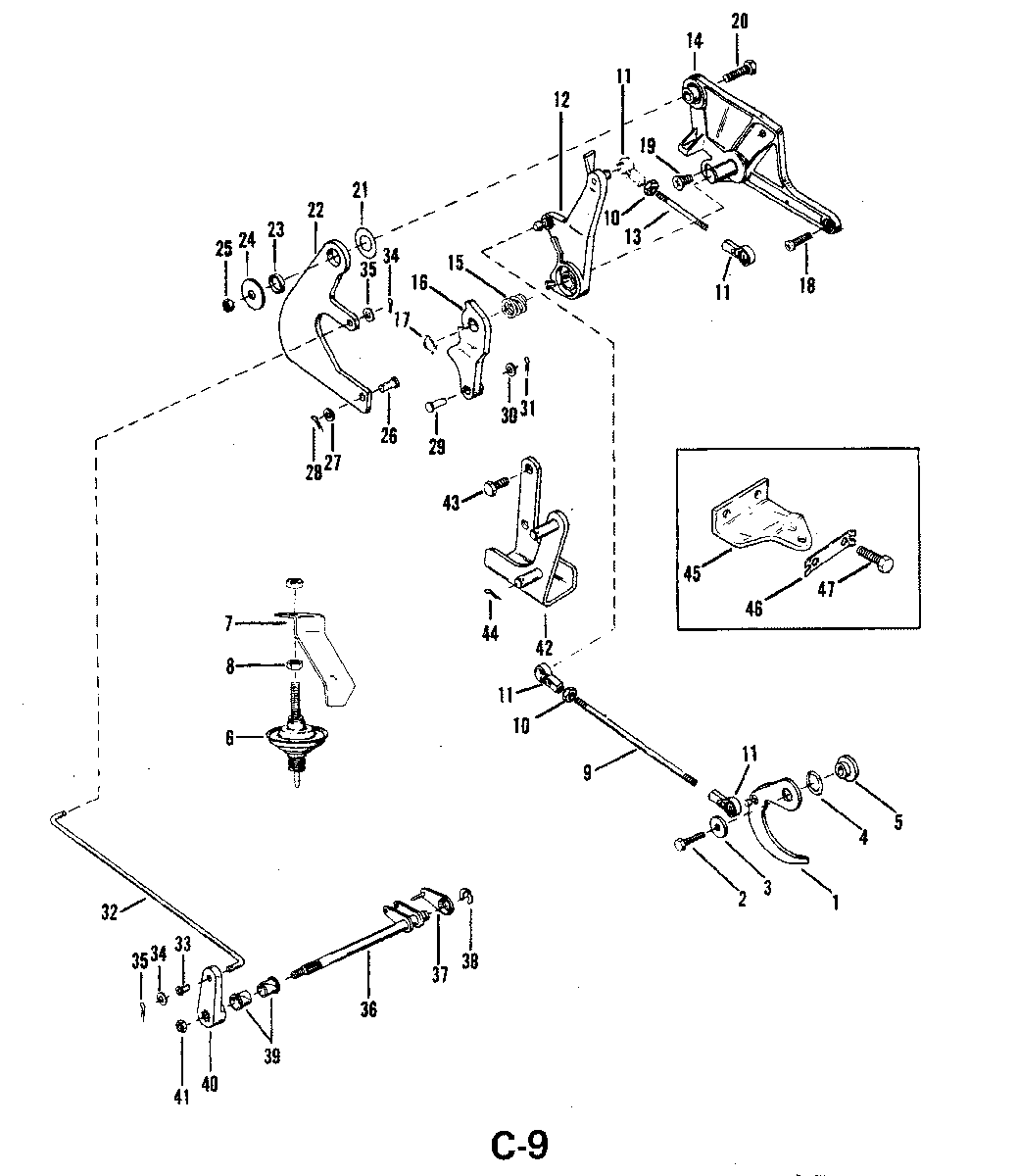

THROTTLE AND SHIFT LINKAGE (ELECTRIC) для Mercury - 25 9332837X THRU 9390058X
-
№АртикулНазвание
-
117764A2 THROTTLE CAMTHROTTLE CAM
-
210-400035 SCREW,THROTTLE CAM TO CRANKCASE(16MM)SCREW,THROTTLE CAM TO CRANKCASE(16MM)
-
312-87791 WASHER,THROTTLE CAM SCREWWASHER,THROTTLE CAM SCREW
-
413-69150 WAVE WASHER,THROTTLE CAM SCREWWAVE WASHER,THROTTLE CAM SCREW
-
517764A2 BUSHING,THROTTLE CAM SCREWBUSHING,THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET,DASHPOTBRACKET,DASHPOT
-
811-22053 NUT,DASHPOT TERMINALNUT,DASHPOT TERMINAL
-
998463A2 THROTTLE RODTHROTTLE ROD
-
1011-68219 NUT,LOCK-THROTTLE RODNUT,LOCK-THROTTLE ROD
-
118M0084742 SOCKET,THROTTLE RODSOCKET,THROTTLE ROD
-
1292730 LEVER,CONTROLLEVER,CONTROL
-
13817429 TIMING RODTIMING ROD
-
1444299 PLATFORM,CONTROLPLATFORM,CONTROL
-
1524-89540 SPRING,SPARK ADVANCESPRING,SPARK ADVANCE
-
1695034 LEVER,ACTUATINGLEVER,ACTUATING
-
1753-46250 RETAINING RING,ACTUATING AND CONTROL LEVERRETAINING RING,ACTUATING AND CONTROL LEVER
-
1810-40019108 SCREW,CONTROL PLATFORM(20MM)SCREW,CONTROL PLATFORM(20MM)
-
1910-40037126 SCREW,CONTROL PLATFORM(13MM)SCREW,CONTROL PLATFORM(13MM)
-
2010-40007128 SCREW,SHIFT LEVER TO PLATFORM(20MM)SCREW,SHIFT LEVER TO PLATFORM(20MM)
-
2112-95093 WASHERMSHIFT LEVER TO PLATFORMWASHERMSHIFT LEVER TO PLATFORM
-
2295035 LEVER,SHIFTLEVER,SHIFT
-
2323-95091 SLEEVE,SHIFT LEVER TO PLATFORMSLEEVE,SHIFT LEVER TO PLATFORM
-
2412-35280 WASHER,SHIFT LEVER SCREWWASHER,SHIFT LEVER SCREW
-
2511-401386 NUT,SHIFT LEVER SCREWNUT,SHIFT LEVER SCREW
-
2617-95029 PIN,SHIFT LEVERPIN,SHIFT LEVER
-
2712-71055 WASHER,SHIFT LEVER PINWASHER,SHIFT LEVER PIN
-
28398-2171 COTTER PIN,SHIFT LEVER PINCOTTER PIN,SHIFT LEVER PIN
-
2917-95784 PIN,ACTUATING LEVERPIN,ACTUATING LEVER
-
3012-71055 WASHER,ACTUATING LEVER PINWASHER,ACTUATING LEVER PIN
-
3118-210711 COTTER PIN,ACTUATING LEVER PINCOTTER PIN,ACTUATING LEVER PIN
-
3295025 SHIFT LINKSHIFT LINK
-
3323-96202 BUSHING,NYLON-SHIFT LINKBUSHING,NYLON-SHIFT LINK
-
3412-89302 WASHER,SHIFT LINKWASHER,SHIFT LINK
-
35398-2171 COTTER PIN,SHIFT LINKCOTTER PIN,SHIFT LINK
-
3695027A6 SHIFT SHAFT ASSEMBLY,HORIZONTALSHIFT SHAFT ASSEMBLY,HORIZONTAL
-
3795023 LEVER,SHIFT SHAFTLEVER,SHIFT SHAFT
-
3853-95019 RETAINING RING,LEVER TO SHIFT SHAFTRETAINING RING,LEVER TO SHIFT SHAFT
-
3923-60762 BUSHING,SHIFT SHAFTBUSHING,SHIFT SHAFT
-
4017724A1 LEVER,SHIFT SHAFTLEVER,SHIFT SHAFT
-
4111-401385 NUT,SHIFT SHAFTNUT,SHIFT SHAFT
-
4295033 BRACKET,REMOTE CONTROLBRACKET,REMOTE CONTROL
-
4310-4000327 SCREW,REMOTE CONTROL BRACKET(14MM)SCREW,REMOTE CONTROL BRACKET(14MM)
-
4418-210711 COTTER PIN,REMOTE CONTROL CABLESCOTTER PIN,REMOTE CONTROL CABLES
-
4596186A2 BRACKET ASSEMBLY,ATTACHINGBRACKET ASSEMBLY,ATTACHING
-
4696201 STRAPSTRAP
-
4710-1993325 SCREW,BRACKET (25MM)SCREW,BRACKET (25MM)
