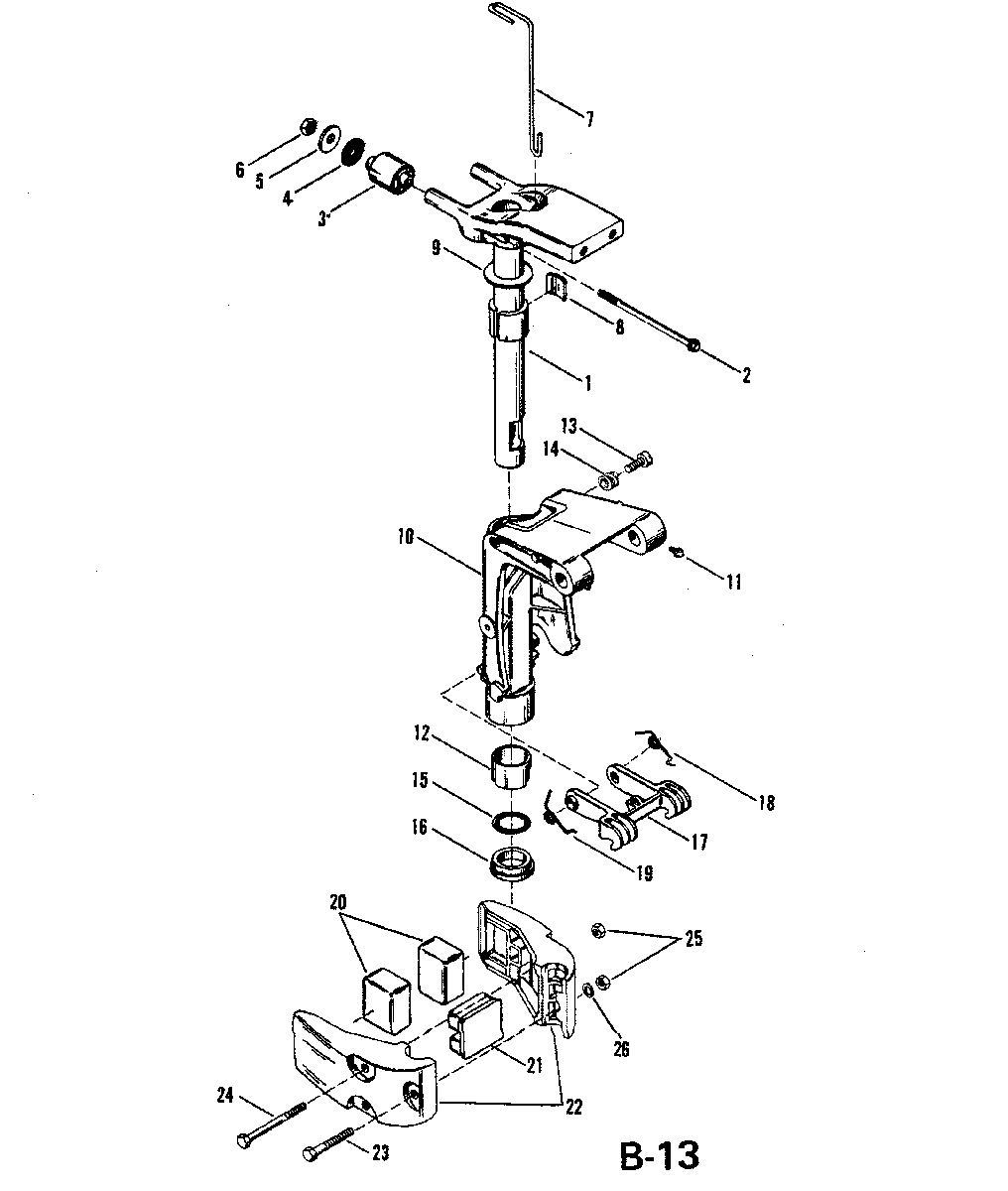

SWIVEL BRACKET ASSEMBLY для Mercury - 25 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    97544A5 SWIVEL TUBE ASSEMBLY
    SWIVEL TUBE ASSEMBLY
  • 2
    10-125161 SCREW,UPPER MOUNT(133MM)
    SCREW,UPPER MOUNT(133MM)
  • 3
    14894 MOUNT,UPPER
    MOUNT,UPPER
  • 4
    12-85172 WASHER,RUBBER-UPPER MOUNT SCREW
    WASHER,RUBBER-UPPER MOUNT SCREW
  • 5
    12-85106 WASHER,UPPER MOUNT SCREW
    WASHER,UPPER MOUNT SCREW
  • 6
    11-400213 NUT,UPPER MOUNT SCREW
    NUT,UPPER MOUNT SCREW
  • 7
    85157 ROD,REVERSE HOOK
    ROD,REVERSE HOOK
  • 8
    85173 PLATE,PILOT CONTROL
    PLATE,PILOT CONTROL
  • 9
    12-85104 WASHER,SWIVEL TUBE
    WASHER,SWIVEL TUBE
  • 10
    3415-822237A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 11
    22-74036 GREASE FITTING
    GREASE FITTING
  • 12
    23-95949 BUSHING,SWIVEL BRACKET
    BUSHING,SWIVEL BRACKET
  • 13
    10-91807 SCREW,PILOT CONTROL
    SCREW,PILOT CONTROL
  • 14
    24-96203 SPRING,PILOT CONTROL SCREW
    SPRING,PILOT CONTROL SCREW
  • 15
    25-86993 "O" RING SWIVEL TUBE
    "O" RING SWIVEL TUBE
  • 16
    23-85154 BUSHING,SWIVEL TUBE(LOWER)
    BUSHING,SWIVEL TUBE(LOWER)
  • 17
    98830A2 HOOK ASSEMBLY,REVERSE LOCK
    HOOK ASSEMBLY,REVERSE LOCK
  • 18
    24-96018 SPRING,REVERSE HOOK-PORT
    SPRING,REVERSE HOOK-PORT
  • 19
    24-97427 SPRING,REVERSE HOOK-STARBOARD
    SPRING,REVERSE HOOK-STARBOARD
  • 20
    85122001 MOUNT,LOWER
    MOUNT,LOWER
  • 21
    85123001 BUMPER,FRONT
    BUMPER,FRONT
  • 22
    95068A1 COVER,LOWER MOUNT
    COVER,LOWER MOUNT
  • 23
    10-1994360 SCREW,LOWRE MOUNT COVER(60MM)
    SCREW,LOWRE MOUNT COVER(60MM)
  • 24
    10-19943100 SCREW,LOWER MOUNT COVER(100MM)
    SCREW,LOWER MOUNT COVER(100MM)
  • 25
    11-400213 NUT,LOWER MOUNT COVER SCREW
    NUT,LOWER MOUNT COVER SCREW
  • 26
    12-36001 WASHER,LOWER MOUNT COVER SCREW
    WASHER,LOWER MOUNT COVER SCREW
