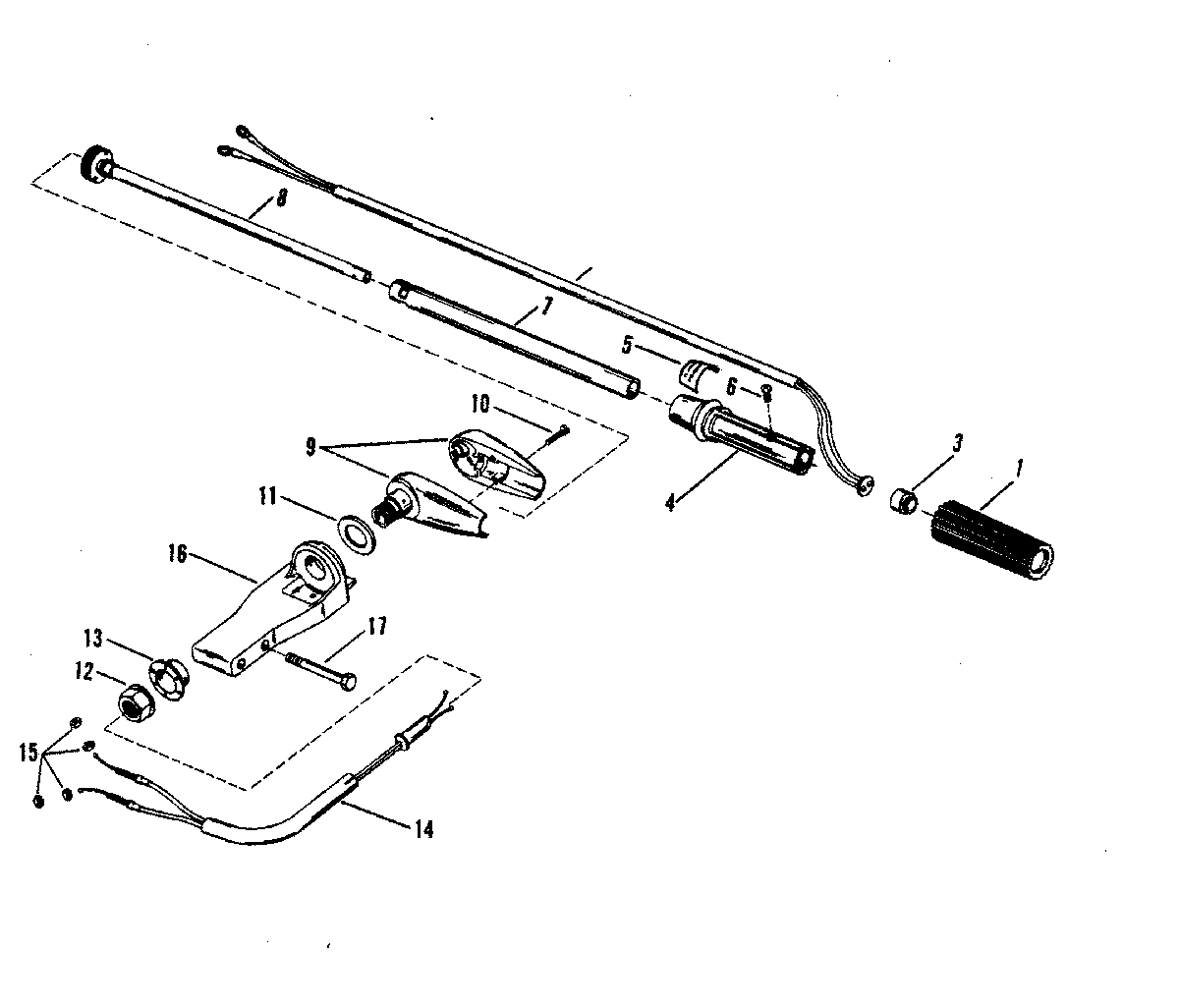

STEERING HANDLE ASSEMBLY для Mercury - 25 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • -
    94185A16 STEERING HANDLE ASSEMBLY
    STEERING HANDLE ASSEMBLY
  • 1
    99589003 GRIP,RUBBER
    GRIP,RUBBER
  • 2
    84-89591A5 HARNESS ASSEMBLY,STOP SWITCH
    HARNESS ASSEMBLY,STOP SWITCH
  • 3
    11099A1 BOOT ASSEMBLY,STOP SWITCH
    BOOT ASSEMBLY,STOP SWITCH
  • 4
    87-823609A10 HANDLE ASSEMBLY,THROTTLE
    HANDLE ASSEMBLY,THROTTLE
  • 5
    37-13239 DECAL,THROTTLE HANDLE
    DECAL,THROTTLE HANDLE
  • 6
    10-62568 SCREW,THROTTLE HANDLE
    SCREW,THROTTLE HANDLE
  • 7
    99333A2 TUBE ASSEMBLY,STEERING
    TUBE ASSEMBLY,STEERING
  • 8
    975501 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 9
    43447A3 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 10
    10-4005688 SCREW,BRACKET CLAMPING(20MM)
    SCREW,BRACKET CLAMPING(20MM)
  • 11
    12-57860 WASHER,NYLON-BRACKET
    WASHER,NYLON-BRACKET
  • 12
    11-82671327 NUT,BRACKET
    NUT,BRACKET
  • 13
    23-85973 BUSHING,BRACKET
    BUSHING,BRACKET
  • 14
    43242 CABLE,THROTTLE
    CABLE,THROTTLE
  • 15
    11-400212 NUT,THROTTLE CABLE
    NUT,THROTTLE CABLE
  • 16
    43447A3 BRACKET ASSEMBLY,STEERING
    BRACKET ASSEMBLY,STEERING
  • 17
    10-4000384 SCREW,BRACKET TO SWIVEL TUBE(75MM)
    SCREW,BRACKET TO SWIVEL TUBE(75MM)
