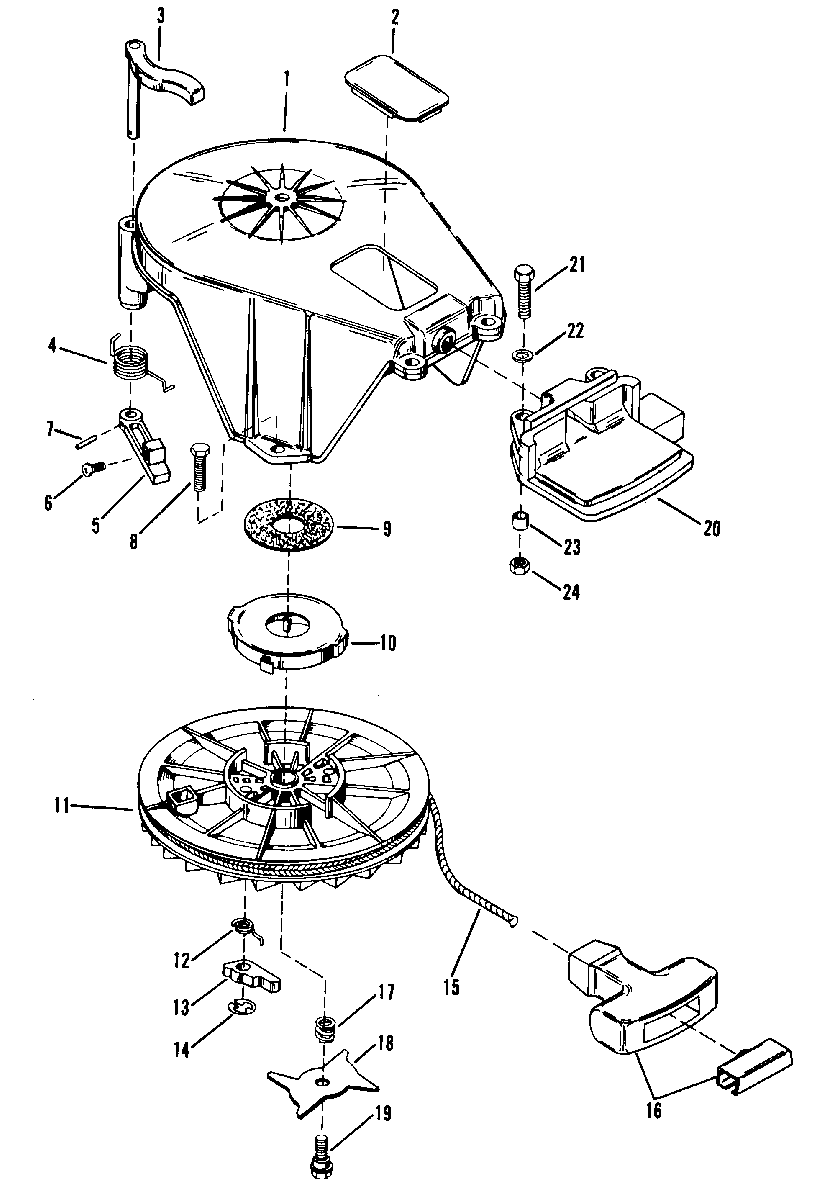

STARTER ASSEMBLY,MANUAL для Mercury - 25 9332837X THRU 9390058X
-
№АртикулНазвание
-
186689A5 HOUSING,STARTERHOUSING,STARTER
-
286971 COVER,STARTER HOUSINGCOVER,STARTER HOUSING
-
3858925 LEVER,LOCK (UPPER)LEVER,LOCK (UPPER)
-
424-12734 SPRING,UPPER LOCK LEVERSPRING,UPPER LOCK LEVER
-
593876T02 LEVER,LOCK (LOWER)LEVER,LOCK (LOWER)
-
610-61802 SCREW,LOWER LOCK LEVERSCREW,LOWER LOCK LEVER
-
717-38489 ROLL PIN, LOCK LEVERROLL PIN, LOCK LEVER
-
810-4000329 SCREW,STARTER HOUSING ATTACHING (20MM)SCREW,STARTER HOUSING ATTACHING (20MM)
-
810-4000183 SCREW,STARTER HOUSING ATTACHING (35MM)SCREW,STARTER HOUSING ATTACHING (35MM)
-
9833161T PAD,FELTPAD,FELT
-
1024-86857T01 SPRING,STARTERSPRING,STARTER
-
1150-825269T01 SHEAVE.STARTERSHEAVE.STARTER
-
1224-86851T02 SPRING,CAMSPRING,CAM
-
13868501 CAMCAM
-
1453-86849T01 RETAINING RING,CAMRETAINING RING,CAM
-
1550-12066Q10 ROPE,STARTERROPE,STARTER
-
1685174A1 HANDLE ASSEBLY,STARTER ROPEHANDLE ASSEBLY,STARTER ROPE
-
1724-868523 SPRING,CAMSPRING,CAM
-
1886853T01 CAMCAM
-
1910-826253 SCREW,CAM TO STARTER SHEAVESCREW,CAM TO STARTER SHEAVE
-
20426264 SUPPORT,STARTER HANDLESUPPORT,STARTER HANDLE
-
2110-40019111 SCREW,SUPPORT TO STARTER HOUSING (35MM)SCREW,SUPPORT TO STARTER HOUSING (35MM)
-
2212-4002313 WASHER,SUPPORT SCREWWASHER,SUPPORT SCREW
-
2323-309772 SPACER,SUPPORT SCREWSPACER,SUPPORT SCREW
-
2411-401385 NUT,SUPPORT SCREWNUT,SUPPORT SCREW
