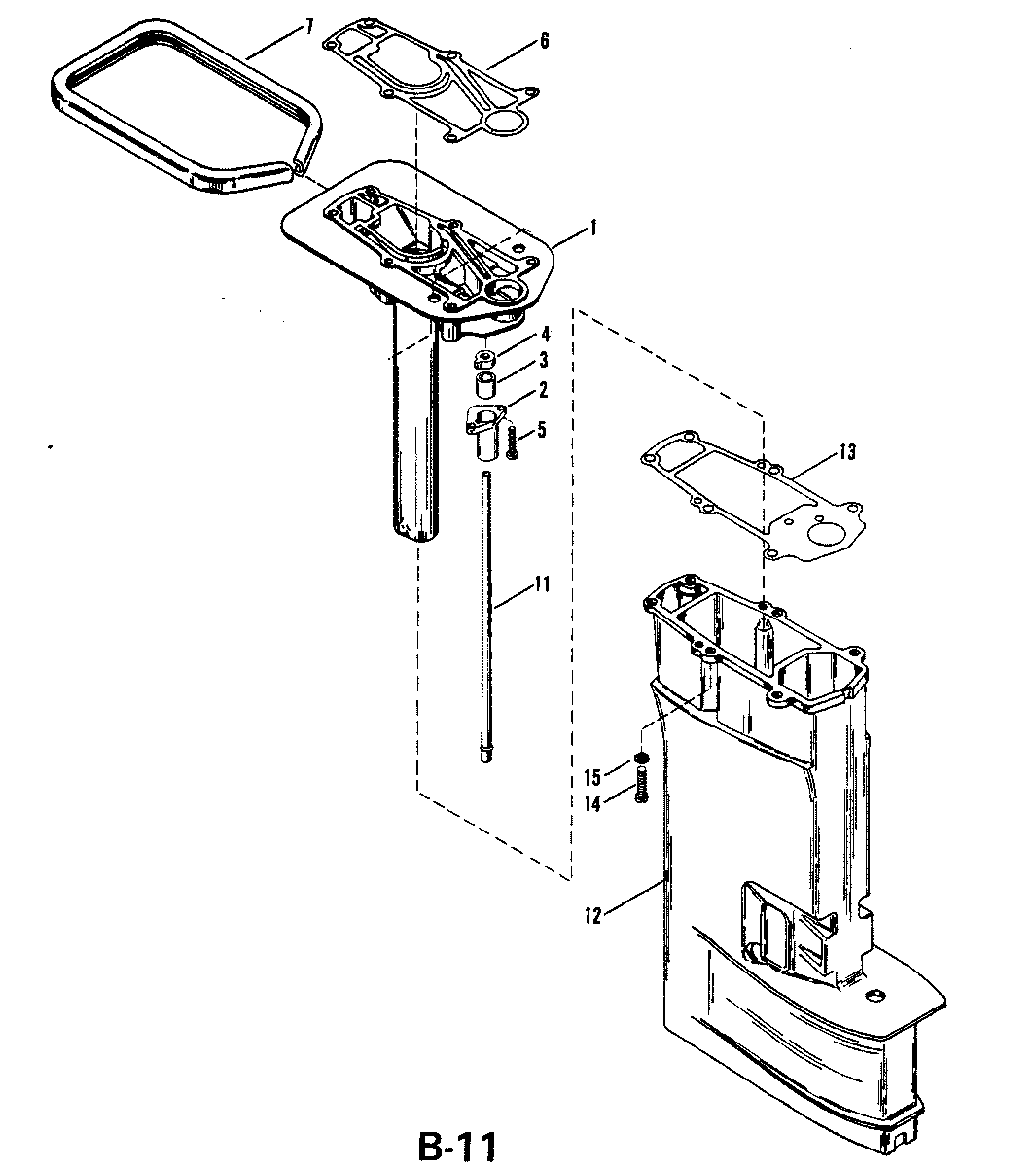

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 25 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    99702A3 ADAPTOR PLATE ASSEMBLY (MERC18)
    ADAPTOR PLATE ASSEMBLY (MERC18)
  • 1
    99702A7 ADAPTOR PLATE ASSEMBLY (MERC 25)
    ADAPTOR PLATE ASSEMBLY (MERC 25)
  • 2
    96248A1 HOUSING ASSEMBLY,WATER TUBE
    HOUSING ASSEMBLY,WATER TUBE
  • 3
    26-25329 SEAL,WATER TUBE
    SEAL,WATER TUBE
  • 4
    23-889715 SPACER,WATER TUBE
    SPACER,WATER TUBE
  • 5
    10-400035 SCREW,HOUSING TO ADAPTOR PLATE(16MM)
    SCREW,HOUSING TO ADAPTOR PLATE(16MM)
  • 6
    27-41670006 GASKET,ADAPTOR PLATE
    GASKET,ADAPTOR PLATE
  • 7
    158662 SEAL,ADAPTOR PLATE
    SEAL,ADAPTOR PLATE
  • 11
    32-85116 WATER TUBE,SHORT SHAFT
    WATER TUBE,SHORT SHAFT
  • 11
    32-86292 WATER TUBE,LONG SHAFT
    WATER TUBE,LONG SHAFT
  • 12
    1588-8747A1 HOUSING ASSEMBLY,SHORT SHAFT
    HOUSING ASSEMBLY,SHORT SHAFT
  • 12
    1591-8749A1 HOUSING ASSEMBLY,LONG SHAFT
    HOUSING ASSEMBLY,LONG SHAFT
  • 13
    27-433374 GASKET,DRIVE SHAFT HOUSING
    GASKET,DRIVE SHAFT HOUSING
  • 14
    10-1993870 SCREW,DRIVE SHAFT HOUSING TO PLATE(60MM)
    SCREW,DRIVE SHAFT HOUSING TO PLATE(60MM)
  • 15
    12-4002317 WASHER,DRIVE SHAFT HOUSING SCREW
    WASHER,DRIVE SHAFT HOUSING SCREW
