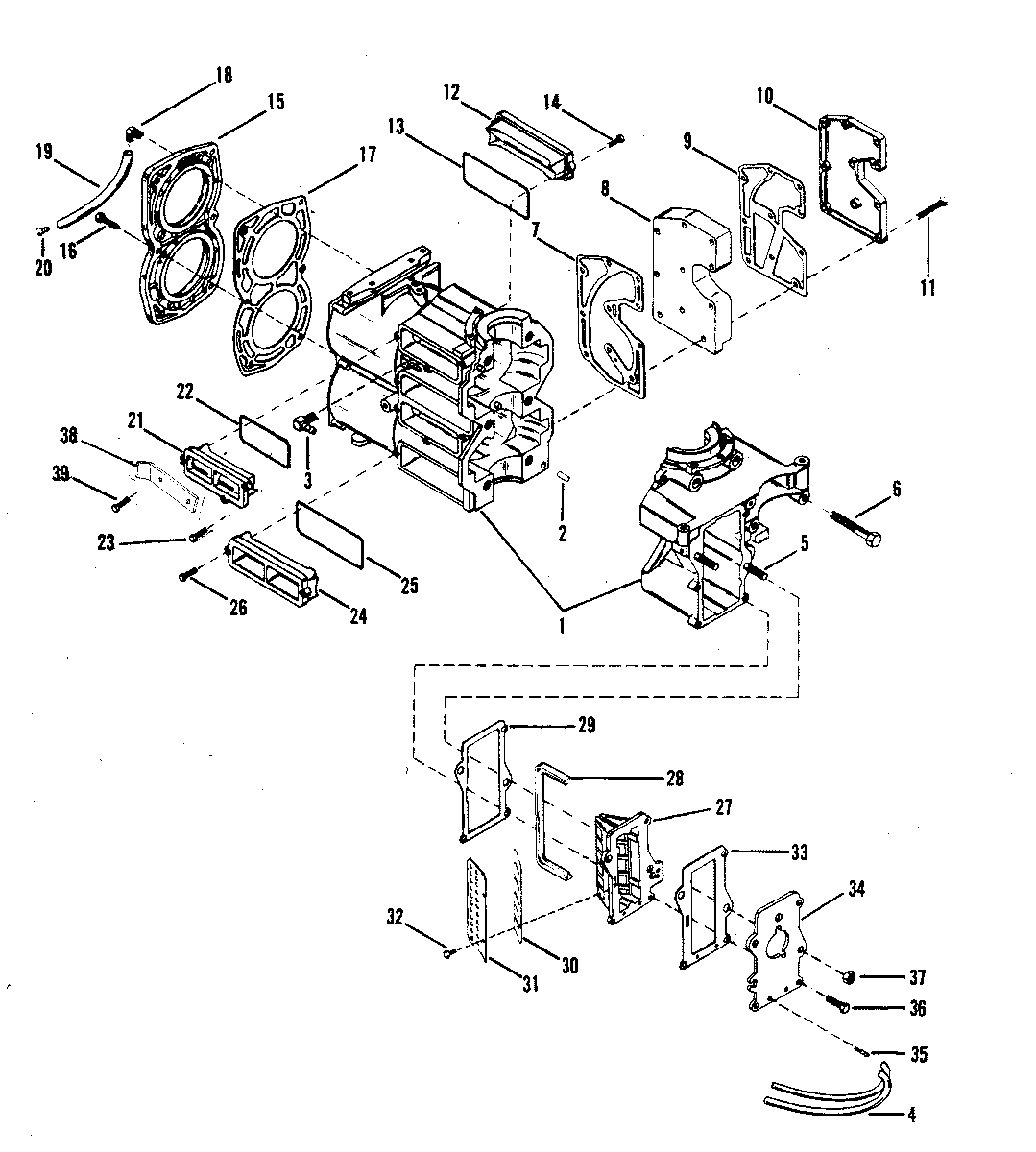

CYLINDER BLOCK AND COVERS для Mercury - 25 9332837X THRU 9390058X

  • №
    Артикул
    Название
  • 1
    872-9533T38 BLOCK/CRANKCASE ASSYEMBLY
    BLOCK/CRANKCASE ASSYEMBLY
  • 2
    17-85171 DOWEL PIN,CYLINDER BLOCK
    DOWEL PIN,CYLINDER BLOCK
  • 3
    22-15133 ELBOW,BLEED HOSE(45)
    ELBOW,BLEED HOSE(45)
  • 4
    32-892024122 HOSE,BLEED(12-1/4")
    HOSE,BLEED(12-1/4")
  • 5
    16-429173 STUD,CARBURETOR
    STUD,CARBURETOR
  • 6
    10-40001209 SCREW,CRANKCASE TO CYLINDER BLOCK (60MM)
    SCREW,CRANKCASE TO CYLINDER BLOCK (60MM)
  • 7
    27-892158 GASKET,EXHAUST MANIFOLD
    GASKET,EXHAUST MANIFOLD
  • 8
    92329 EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 9
    27-414991 GASKET,EXHAUST COVER
    GASKET,EXHAUST COVER
  • 10
    92330T COVER,EXHAUST
    COVER,EXHAUST
  • 11
    10-4000333 SCREW,EXHAUST COVER TO CYLINDER BLOCK (40MM)
    SCREW,EXHAUST COVER TO CYLINDER BLOCK (40MM)
  • 12
    144071 COVER,TRANSFER PORT
    COVER,TRANSFER PORT
  • 13
    25-822370 "O" RING,TRANSFER PORT COVER
    "O" RING,TRANSFER PORT COVER
  • 14
    10-40057107 SCREW,COVER TO CYLINDER BLOCK(16MM)
    SCREW,COVER TO CYLINDER BLOCK(16MM)
  • 15
    1028-8283A1 COVER ASSEMBLY,CYLINDER BLOCK
    COVER ASSEMBLY,CYLINDER BLOCK
  • 16
    10-4000331 SCREW,COVER ATTACHING (30MM)
    SCREW,COVER ATTACHING (30MM)
  • 17
    27-86389 GASKET,CYLINDER BLOCK COVER
    GASKET,CYLINDER BLOCK COVER
  • 18
    22-996642 ELBOW,TELL TALE HOSE
    ELBOW,TELL TALE HOSE
  • 19
    32-8M0108355 HOSE,TELL TALE (8")
    HOSE,TELL TALE (8")
  • 20
    22-94848 FITTING,TELL TALE HOSE-BOTTOM COWL
    FITTING,TELL TALE HOSE-BOTTOM COWL
  • 21
    14406 COVER,TRANSFER PORT
    COVER,TRANSFER PORT
  • 22
    25-86391 "O" RING,TRANSFER PORT COVER
    "O" RING,TRANSFER PORT COVER
  • 23
    10-40057107 SCREW,COVER TO CYLINDER BLOCK (16MM)
    SCREW,COVER TO CYLINDER BLOCK (16MM)
  • 24
    92350 COVER,TRANSFER PORT
    COVER,TRANSFER PORT
  • 25
    25-33465 "O" RING,TRANSFER PORT COVER
    "O" RING,TRANSFER PORT COVER
  • 26
    10-40057107 SCREW,COVER TO CYLINDER BLOCK(16MM)
    SCREW,COVER TO CYLINDER BLOCK(16MM)
  • 27
    14112T REED BLOCK
    REED BLOCK
  • 28
    85977002 SEAL,REED BLOCK-RUBBER
    SEAL,REED BLOCK-RUBBER
  • 29
    27-414172 GASKET,REED BLOCK
    GASKET,REED BLOCK
  • 30
    34-816806 REED
    REED
  • 31
    34-897931 REED STOP
    REED STOP
  • 32
    10-4005785 SCREW,REED ATTACHING (10MM)
    SCREW,REED ATTACHING (10MM)
  • 33
    27-414181 GASKET,ADAPTOR PLATE
    GASKET,ADAPTOR PLATE
  • 34
    41420A3 PLATE,ADAPTOR-CARBURETOR
    PLATE,ADAPTOR-CARBURETOR
  • 35
    22-56759 FITTING,ADAPTOR PLATE-BLEED HOSE
    FITTING,ADAPTOR PLATE-BLEED HOSE
  • 36
    10-40019108 SCREW,PLATE TO REED BLOCK(20MM)
    SCREW,PLATE TO REED BLOCK(20MM)
  • 37
    11-400213 NUT,CARBURETOR STUD
    NUT,CARBURETOR STUD
  • 38
    43717 IDLE STOP
    IDLE STOP
  • 39
    10-40019108 SCREW,IDLE STOP
    SCREW,IDLE STOP
