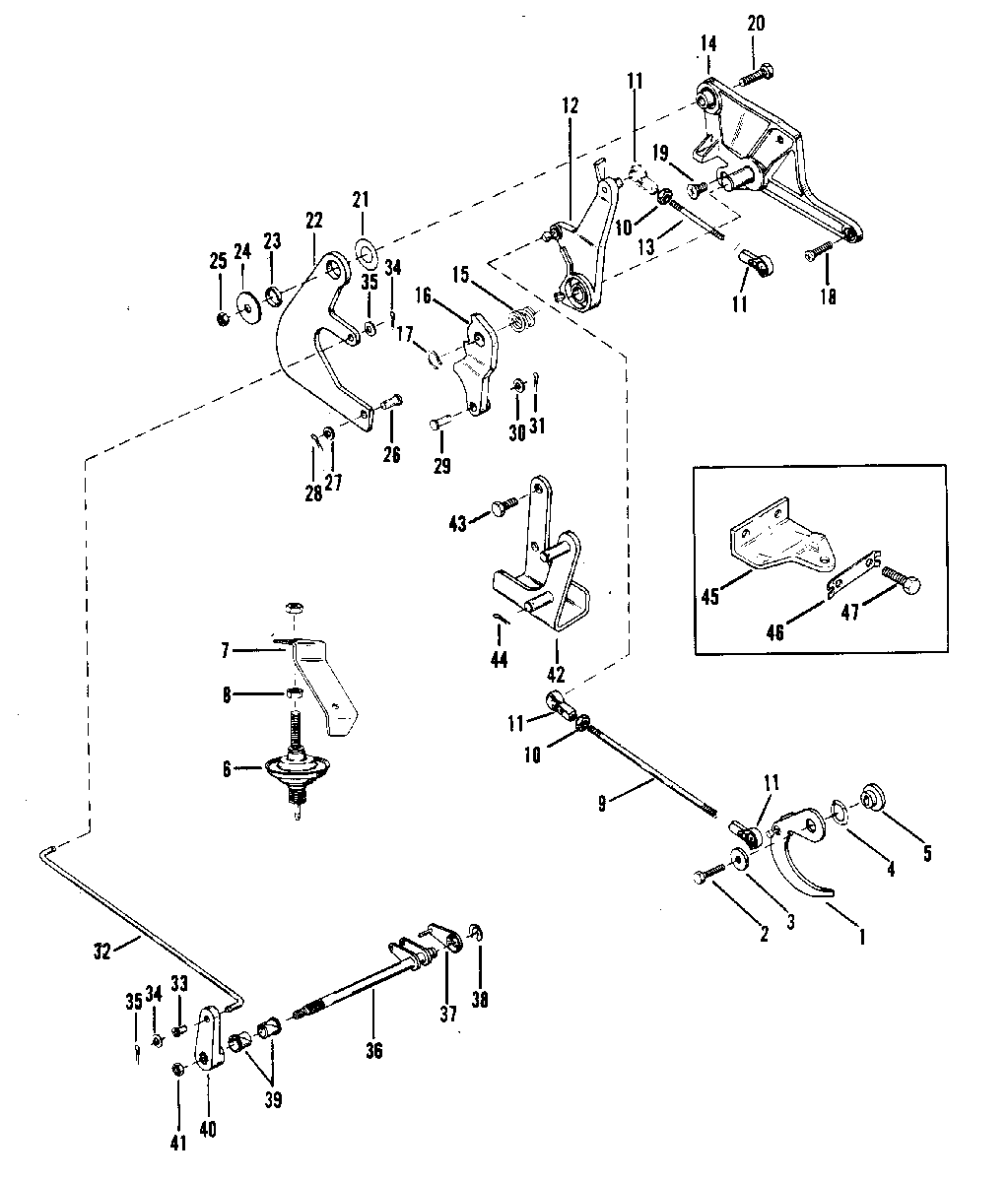

THROTTLE AND SHIFT LINKAGE (ELECTRIC) для Mercury - 25 7207858 THRU 7209532
-
№АртикулНазвание
-
196096 THROTTLE CAMTHROTTLE CAM
-
210-400035 SCREW, THROTTLE CAM TO CRANKCASE (16MM)SCREW, THROTTLE CAM TO CRANKCASE (16MM)
-
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, DASHPOT TERMINALNUT, DASHPOT TERMINAL
-
998463A2 THROTTLE RODTHROTTLE ROD
-
1011-68219 NUT, LOCK-THROTTLE RODNUT, LOCK-THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
1292730 LEVER, CONTROLLEVER, CONTROL
-
13817429 TIMING RODTIMING ROD
-
1444299 PLATFOM, CONTROLPLATFOM, CONTROL
-
1524-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
1695034 LEVER, ACTUATINGLEVER, ACTUATING
-
1753-46250 RETAINING RING, ACTUATING AND CONTROL LEVERRETAINING RING, ACTUATING AND CONTROL LEVER
-
1810-40019108 SCREW, CONTROL PLATFORM (20MM)SCREW, CONTROL PLATFORM (20MM)
-
1910-40037126 SCREW, CONTROL PLATFORM (13MM)SCREW, CONTROL PLATFORM (13MM)
-
2010-40007128 SCREW, SHIFT LEVER TO PLATFORM (20MM)SCREW, SHIFT LEVER TO PLATFORM (20MM)
-
2112-95093 WASHER, SHIFT LEVER TO PLATFORMWASHER, SHIFT LEVER TO PLATFORM
-
2295035 LEVER, SHIFTLEVER, SHIFT
-
2323-95091 SLEEVE, SHIFT LEVER TO PLATFORMSLEEVE, SHIFT LEVER TO PLATFORM
-
2412-35280 WASHER, SHIFT LEVER SCREWWASHER, SHIFT LEVER SCREW
-
2511-401386 NUT, SHIFT LEVER SCREWNUT, SHIFT LEVER SCREW
-
2617-95029 PIN, SHIFT LEVERPIN, SHIFT LEVER
-
2712-71055 WASHER, SHIFT LEVER PINWASHER, SHIFT LEVER PIN
-
2818-210711 COTTER PIN, SHIFT LEVER PINCOTTER PIN, SHIFT LEVER PIN
-
2917-95784 PIN, ACTUATING LEVERPIN, ACTUATING LEVER
-
3012-71055 WASHER, ACTUATING LEVER PINWASHER, ACTUATING LEVER PIN
-
3118-210711 COTTER PIN, ACTUATING LEVER PINCOTTER PIN, ACTUATING LEVER PIN
-
3295025 SHIFT LINKSHIFT LINK
-
3323-96202 BUSHING, NYLON - SHIFT LINKBUSHING, NYLON - SHIFT LINK
-
3412-89302 WASHER, SHIFT LINKWASHER, SHIFT LINK
-
3518-210711 COTTER PIN, SHIFT LINKCOTTER PIN, SHIFT LINK
-
3695027A6 SHIFT SHAFT ASSEMBLY, HORIZONTALSHIFT SHAFT ASSEMBLY, HORIZONTAL
-
3795023 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3853-95019 RETAINING RING, LEVER TO SHIFT SHAFTRETAINING RING, LEVER TO SHIFT SHAFT
-
3923-60762 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
4017724A1 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
4111-401385 NUT, SHIFT SHAFTNUT, SHIFT SHAFT
-
4295033 BRACKET, REMOTE CONTROLBRACKET, REMOTE CONTROL
-
4310-4000327 SCREW, REMOTE CONTROL BRACKET (14MM)SCREW, REMOTE CONTROL BRACKET (14MM)
-
4418-210711 COTTER PIN, REMOTE CONTROL CABLESCOTTER PIN, REMOTE CONTROL CABLES
-
4596186A2 BRACKET ASSEMBLY, ATTACHINGBRACKET ASSEMBLY, ATTACHING
-
4696201 STRAPSTRAP
-
4710-1993325 SCREW, BRACKET (25MM)SCREW, BRACKET (25MM)
