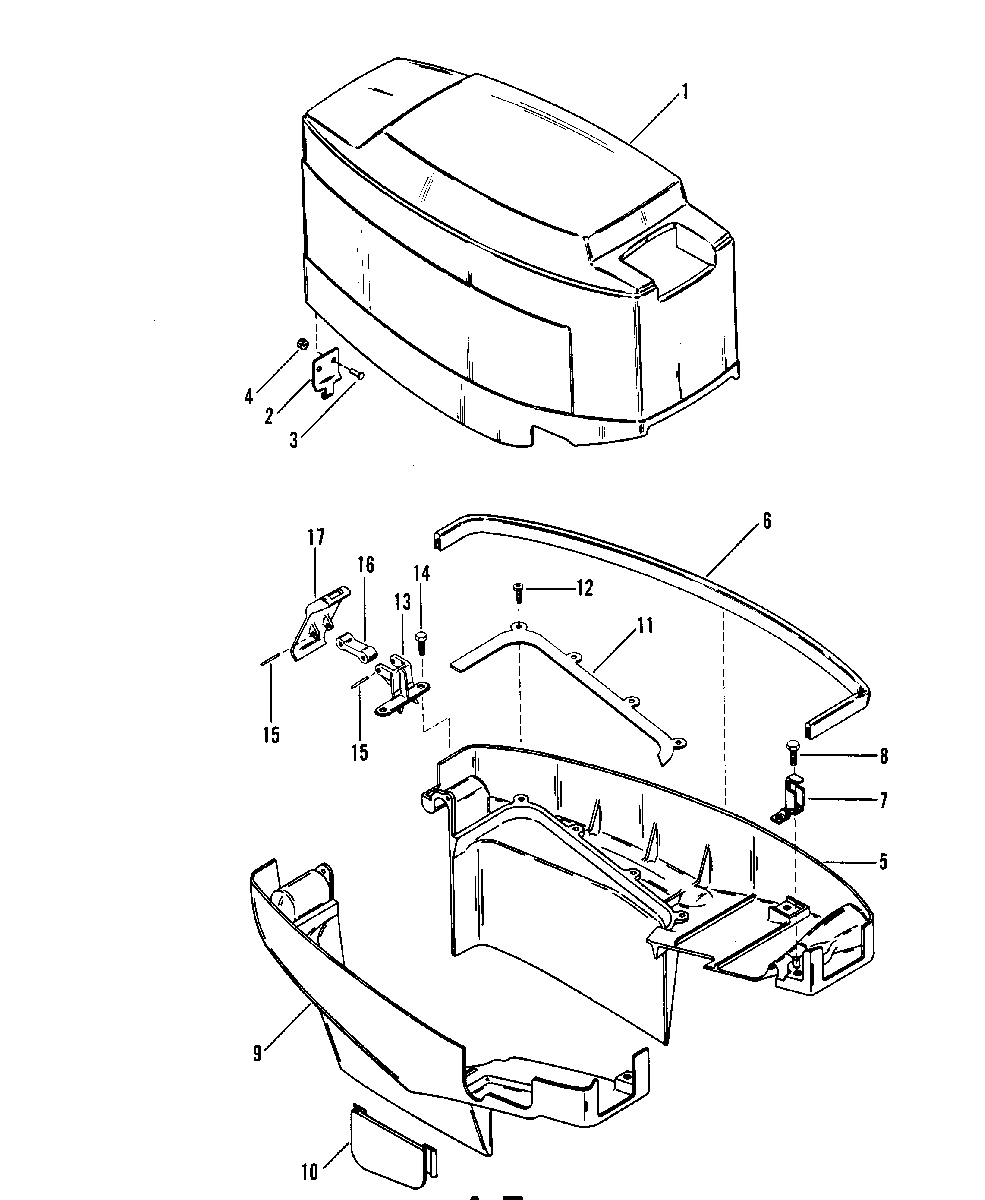

COWLS (HINGE ATTACHED W/2 RIVETS) для Mercury - 25 7207858 THRU 7209532

№

Артикул

Название
1

2190-9163A22 TOP COWL ASSEMBLY

TOP COWL ASSEMBLY

38 390 ₽
2

89584 HINGE, COWL LATCH

HINGE, COWL LATCH

0 ₽
3

10-22028 SCREW, HINGE TO TOP COWL

SCREW, HINGE TO TOP COWL

0 ₽
4

11-27164 NUT, HINGE PIN

NUT, HINGE PIN

130 ₽
5

2176-8860A4 BOTTOM COWL ASSEMBLY, PORT

BOTTOM COWL ASSEMBLY, PORT

111 150 ₽
6

42274 SEAL, BOTTOM COWL

SEAL, BOTTOM COWL

1 790 ₽
7

41551 LATCH, BOTTOM COWL

LATCH, BOTTOM COWL

0 ₽
8

10-400018 SCREW, LATCH TO BOTTOM COWL

SCREW, LATCH TO BOTTOM COWL

100 ₽
9

2176-8860A4 BOTTOM COWL ASSEMBLY, STARBOARD

BOTTOM COWL ASSEMBLY, STARBOARD

111 150 ₽
10

25-41604 GROMMET, BOTTOM COWL

GROMMET, BOTTOM COWL

330 ₽
11

15865 PLATE, BOTTOM COWL

PLATE, BOTTOM COWL

0 ₽
12

10-95700 SCREW, PLATE TO BOTTOM COWL (1/2")

SCREW, PLATE TO BOTTOM COWL (1/2")

650 ₽
13

43554A5 BRACKET, COWL LATCH

BRACKET, COWL LATCH

11 380 ₽
14

10-400018 SCREW, BRACKET TO BOTTOM COWL (12MM)

SCREW, BRACKET TO BOTTOM COWL (12MM)

100 ₽
15

17-25870 ROLL PIN, LINK

ROLL PIN, LINK

330 ₽
16

43554A5 LINK, COWL LATCH

LINK, COWL LATCH

11 380 ₽
17

43554A5 LATCH, COWL - REAR

LATCH, COWL - REAR

11 380 ₽
--

37-43170A84 DECAL SET (MERC 18) (BLUE)

DECAL SET (MERC 18) (BLUE)

0 ₽
--

37-90535A80 DECAL SET (MERC 25) (BLUE)

DECAL SET (MERC 25) (BLUE)

0 ₽
--

37-43473A84 DECAL SET (MERC 18) (BROWN)

DECAL SET (MERC 18) (BROWN)

0 ₽
--

37-43474A84 DECAL SET (MERC 25) (BROWN)

DECAL SET (MERC 25) (BROWN)

4 080 ₽
