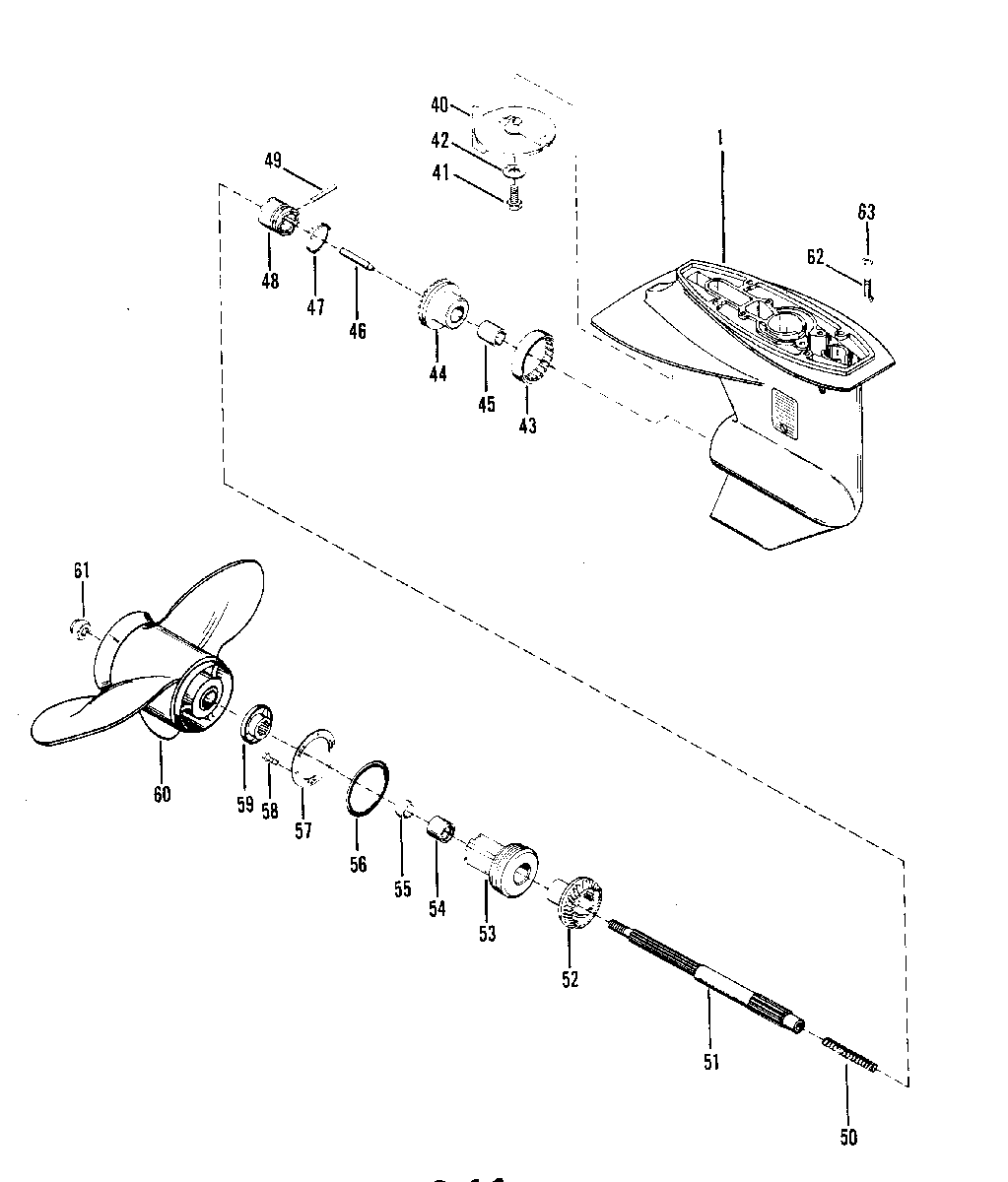

GEAR HOUSING (Prop Shaft) (Screw Inserted from Bottom) для Mercury - 25 7207858 THRU 7209532
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFTGEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFT
-
-1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFTGEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFT
-
11653-8157A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
4094286T1 TRIM TABTRIM TAB
-
4110-4000352 SCREW, TRIM TAB (20MM)SCREW, TRIM TAB (20MM)
-
4214-85169 TAB WASHER, TRIM TAB SCREWTAB WASHER, TRIM TAB SCREW
-
4331-85555A1 ROLLER BEARING ASSEMBLY, TAPEREDROLLER BEARING ASSEMBLY, TAPERED
-
4443-85135A2 FORWARD GEARFORWARD GEAR
-
4523-85557 BUSHING, FORWARD GEARBUSHING, FORWARD GEAR
-
4685094 CAM FOLLOWERCAM FOLLOWER
-
4724-38114 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
4852-85133 CLUTCH, SLIDINGCLUTCH, SLIDING
-
4917-8M0020999 CROSS PIN, CLUTCH TO PROPELLER SHAFTCROSS PIN, CLUTCH TO PROPELLER SHAFT
-
5024-88680 SPRING, COMPRESSION - PROPELLER SHAFTSPRING, COMPRESSION - PROPELLER SHAFT
-
5144-8166231 PROPELLER SHAFTPROPELLER SHAFT
-
5243-99542A1 REVERSE GEARREVERSE GEAR
-
5399906T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5431-21739 ROLLER BEARINGROLLER BEARING
-
5526-98283 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
5625-85549 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
5787293 PLATE, GEAR HOUSINGPLATE, GEAR HOUSING
-
5810-90883 SCREW, COVER TO GEAR HOUSING (16MM)SCREW, COVER TO GEAR HOUSING (16MM)
-
59858498 THRUST HUB ASSEMBLY, PROPELLERTHRUST HUB ASSEMBLY, PROPELLER
-
6048-19640A40 PROPELLER ASSEMBLYPROPELLER ASSEMBLY
-
6111-88228 PROPELLER NUTPROPELLER NUT
-
6210-4000353 SCREW, GEAR HOUSING (25MM)SCREW, GEAR HOUSING (25MM)
-
6312-4002317 WASHER, GEAR HOUSING SCREWWASHER, GEAR HOUSING SCREW
-
--26-85090A1 SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12.SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12. -
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
