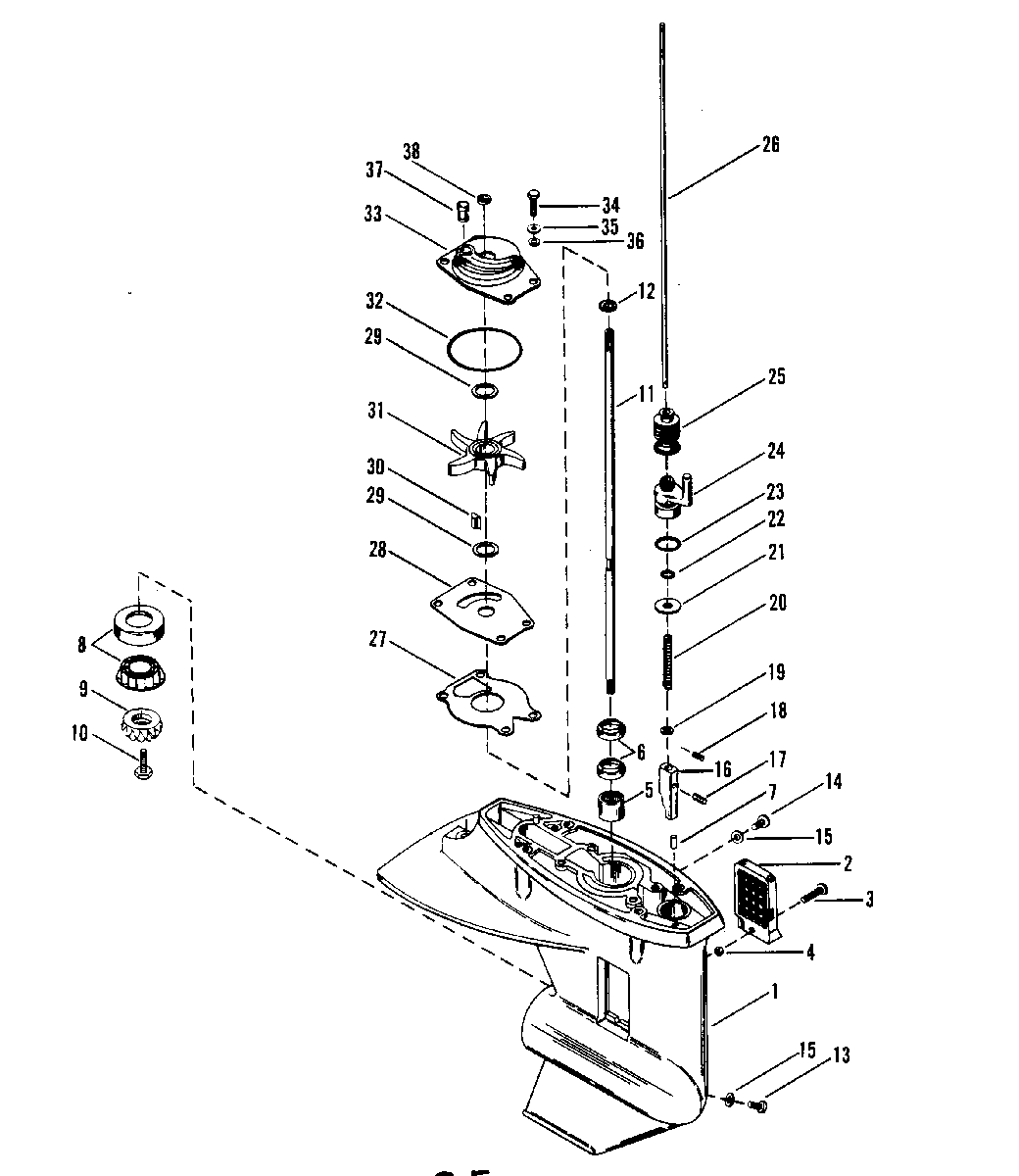

GEAR HOUSING (Drive Shaft) (Screw Inserted from Top) для Mercury - 25 7207858 THRU 7209532
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFTGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT -
-1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFTGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT -
11600-8M0083538 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
235-41134 SCREEN, WATER INLET - STARBOARDSCREEN, WATER INLET - STARBOARD
-
235-41133 SCREEN, WATER INLET - PORTSCREEN, WATER INLET - PORT
-
310-40031112 SCREW, SCREEN TO GEAR HOUSING (40MM)SCREW, SCREEN TO GEAR HOUSING (40MM)
-
411-400263 NUT, SCREEN SCREWNUT, SCREEN SCREW
-
531-41326 ROLLER BEARING, UPPERROLLER BEARING, UPPER
-
626-99325 SEAL, GEAR HOUSINGSEAL, GEAR HOUSING
-
717-8M0084726 DOWEL PIN, GEAR HOUSINGDOWEL PIN, GEAR HOUSING
-
831-98294A1 ROLLER BEARING ASSEMBLYROLLER BEARING ASSEMBLY
-
943-98302 PINION GEARPINION GEAR
-
1010-49908 SCREW, PINION GEARSCREW, PINION GEAR
-
1145-99199 DRIVE SHAFT - SHORT SHAFTDRIVE SHAFT - SHORT SHAFT
-
1145-99198 DRIVE SHAFT - LONG SHAFTDRIVE SHAFT - LONG SHAFT
-
1225-99691 "O" RING"O" RING
-
1322-8M0058389 SCREW, DRAIN - MAGNETICSCREW, DRAIN - MAGNETIC
-
1410-79953Q04 SCREW, GREASE FILLERSCREW, GREASE FILLER
-
1512-191833 WASHER, DRAIN AND FILLER SCREWWASHER, DRAIN AND FILLER SCREW
-
1685562A1 CAM ASSEMBLY, SHIFTCAM ASSEMBLY, SHIFT
-
1717-85096 DRIVE PIN, SHIFT CAMDRIVE PIN, SHIFT CAM
-
1817-85593 ROLL PIN, SHIFT SHAFTROLL PIN, SHIFT SHAFT
-
1912-29245 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2024-93007 SPRING, SHIFT SHAFTSPRING, SHIFT SHAFT
-
2112-85091 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2225-85594 "O" RING, SHIFT SHAFT"O" RING, SHIFT SHAFT
-
2325-35276 "O" RING, SHIFT SHAFT RETAINER"O" RING, SHIFT SHAFT RETAINER
-
2493878 RETAINER, SHIFT SHAFTRETAINER, SHIFT SHAFT
-
2585552001 BOOT, SHIFT SHAFTBOOT, SHIFT SHAFT
-
2685126 SHIFT SHAFT - SHORT SHAFTSHIFT SHAFT - SHORT SHAFT
-
2686293 SHIFT SHAFT - LONG SHAFTSHIFT SHAFT - LONG SHAFT
-
2727-993261 GASKET, WATER PUMPGASKET, WATER PUMP
-
2885083 FACE PLATEFACE PLATE
-
2912-8M0027721 WASHER, IMPELLERWASHER, IMPELLER
-
3028-8M0032838 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3147-8508910 IMPELLERIMPELLER
-
3225-69202 "O" RING, WATER PUMP"O" RING, WATER PUMP
-
3346-99157A02 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
3410-400035 SCREW, WATER PUMP TO GEAR HOUSING (16MM)SCREW, WATER PUMP TO GEAR HOUSING (16MM)
-
3512-89302 WASHER, WATER PUMP SCREWWASHER, WATER PUMP SCREW
-
3623-85095 BUSHING, WATER PUMP SCREWBUSHING, WATER PUMP SCREW
-
3726-85090001 SEAL, WATER TUBESEAL, WATER TUBE
-
3825-86203 RING, DRIVE SHAFT - RUBBERRING, DRIVE SHAFT - RUBBER
-
--46-99157T2 WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11.WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11. -
--26-85090A1 SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12.SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12. -
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
