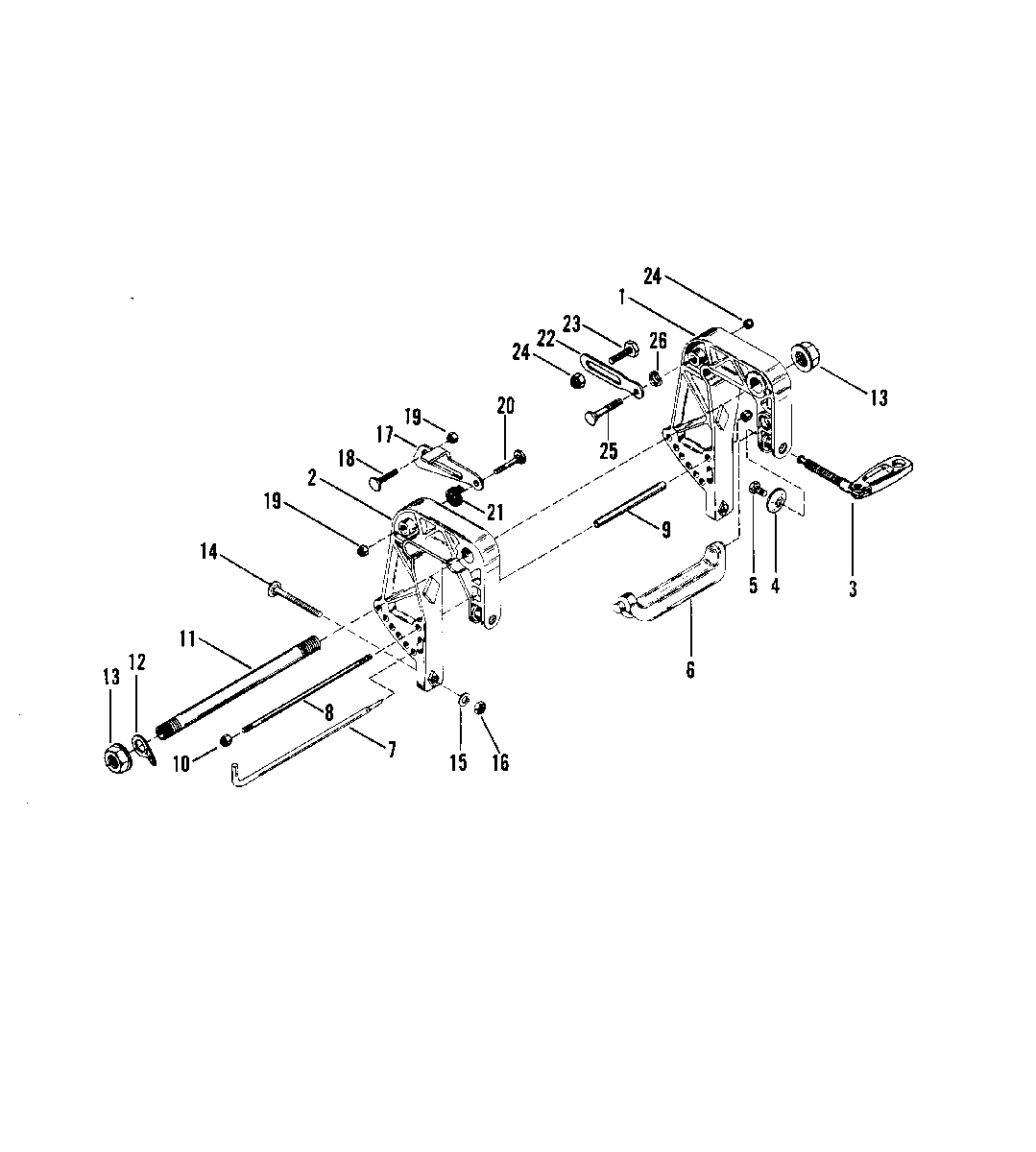

CLAMP BRACKET ASSEMBLY для Mercury - 25 7207858 THRU 7209532

  • №
    Артикул
    Название
  • 1
    1497-8794A5 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1497-8794A5 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    10-92767A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-818884 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    10-768042 SCREW, WASHER ATTACHING
    SCREW, WASHER ATTACHING
  • 6
    41042 HANDLE, CARRYING
    HANDLE, CARRYING
  • 7
    17-99929A1 TITL PIN ASSEMBLY
    TITL PIN ASSEMBLY
  • 8
    16-99928 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-41041 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    11-400213 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 11
    8M0035075 TILT TUBE
    TILT TUBE
  • 12
    54-8M0085928 CLIP, SAFETY
    CLIP, SAFETY
  • 13
    11-93164 NUT, TILT TUBE
    NUT, TILT TUBE
  • 14
    10-69064 BOLT, CLAMP BRACKET TO TRANSOM
    BOLT, CLAMP BRACKET TO TRANSOM
  • 15
    12-67981 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 16
    11-82670910 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 17
    96965 LEVER, TILT STOP - STARBOARD SIDE
    LEVER, TILT STOP - STARBOARD SIDE
  • 18
    10-41523 SCREW, LEVER TO SWIVEL BRACKET
    SCREW, LEVER TO SWIVEL BRACKET
  • 19
    11-826709109 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 20
    10-41524 SCREW, LEVER TO CLAMP BRACKET
    SCREW, LEVER TO CLAMP BRACKET
  • 21
    24-44581 SPRING, TILT STOP LEVER SCREW
    SPRING, TILT STOP LEVER SCREW
  • 22
    90901 STRAP, TILT STOP - PORT SIDE
    STRAP, TILT STOP - PORT SIDE
  • 23
    10-41523 SCREW, STRAP TO SWIVEL BRACKET
    SCREW, STRAP TO SWIVEL BRACKET
  • 24
    11-826709109 NUT, TILT STOP STRAP SCREW
    NUT, TILT STOP STRAP SCREW
  • 25
    10-41524 SCREW, STRAP TO CLAMP BRACKET
    SCREW, STRAP TO CLAMP BRACKET
  • 26
    13-31030 WAVE WASHER, TILT STOP STRAP SCREW
    WAVE WASHER, TILT STOP STRAP SCREW
