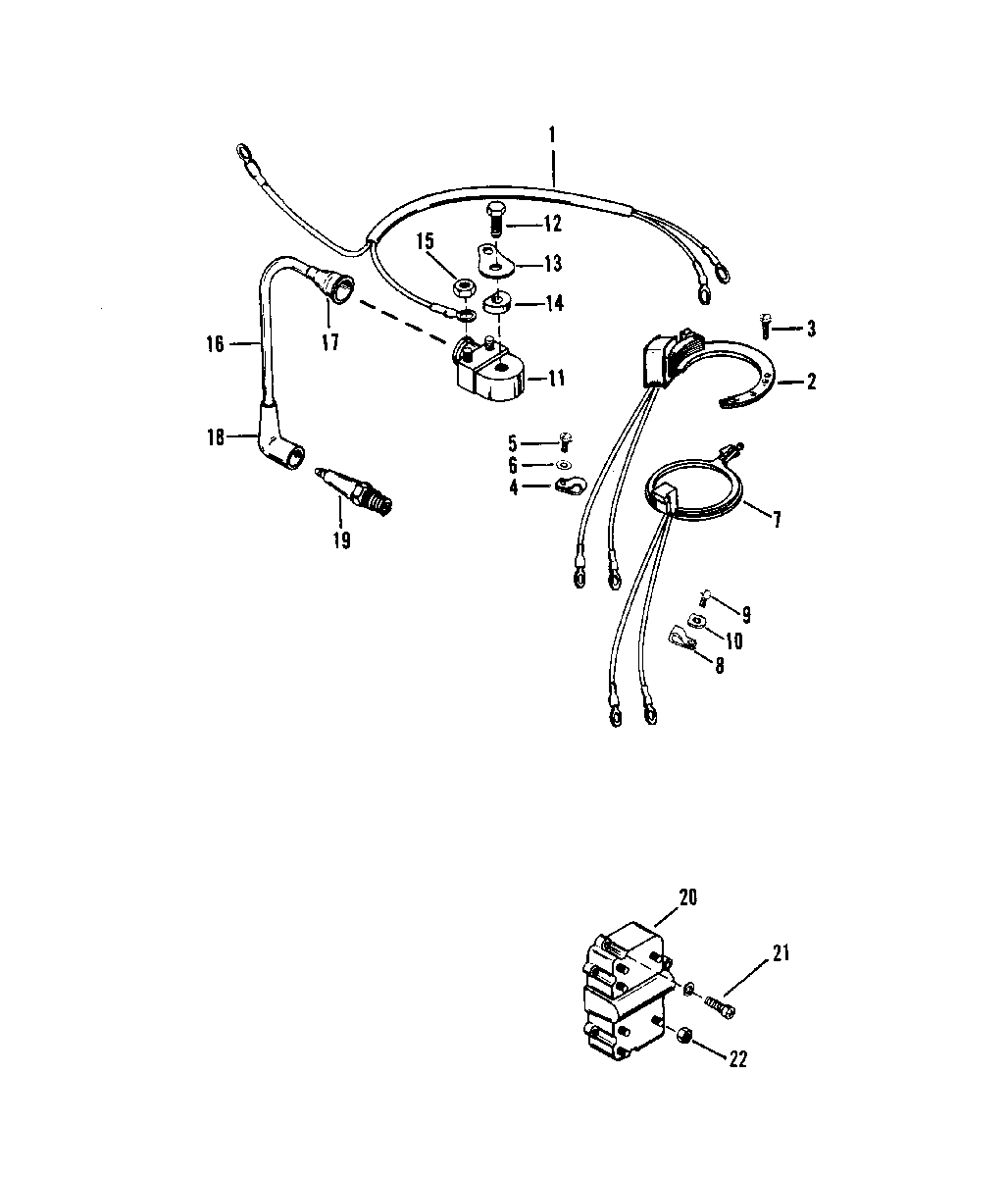

IGNITION COMPONENTS для Mercury - 25 7207858 THRU 7209532
-
№АртикулНазвание
-
184-88891A1 HARNESS ASSEMBLY, PRIMARYHARNESS ASSEMBLY, PRIMARY
-
286617A20 STATOR ASSEMBLYSTATOR ASSEMBLY
-
310-4000120 SCREW, STATOR ATTACHING (25MM)SCREW, STATOR ATTACHING (25MM)
-
310-400015 SCREW, STATOR ATTACHING (10MM) (MANUAL)SCREW, STATOR ATTACHING (10MM) (MANUAL)
-
454-24836 CLIP, STATOR LEADSCLIP, STATOR LEADS
-
510-40019108 SCREW, CLIP TO SWITCH BOX (20MM)SCREW, CLIP TO SWITCH BOX (20MM)
-
612-89302 WASHER, CLIP SCREWWASHER, CLIP SCREW
-
798450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
854-24836 CLIP, TRIGGER LEADSCLIP, TRIGGER LEADS
-
910-77137 SCREW, CLIP TO CRANKCASESCREW, CLIP TO CRANKCASE
-
108M0084613 "C" WASHER, CLIP SCREW"C" WASHER, CLIP SCREW
-
11339-832757A4 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
1210-4000189 SCREW, COIL TO CYLINDER BLOCK (45MM)SCREW, COIL TO CYLINDER BLOCK (45MM)
-
1388173 TAB, COIL SCREWTAB, COIL SCREW
-
1423-88171 BUSHING, COIL SCREWBUSHING, COIL SCREW
-
1511-45076 NUT, COIL TERMINALNUT, COIL TERMINAL
-
1684-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
1785-92308 BOOT, COILBOOT, COIL
-
1885-63709A1 BOOT ASSEMBLY, SPARK PLUGBOOT ASSEMBLY, SPARK PLUG
-
1933-8M0114742 SPARK PLUG, (NGK-B9HS-10)SPARK PLUG, (NGK-B9HS-10)
-
1933-896329828 SPARK PLUG
CHAMPION #QL-77J4 - CANADA AND BELGIUMSPARK PLUG
CHAMPION #QL-77J4 - CANADA AND BELGIUM -
20899883230 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
2110-40019108 SCREW, SWITCH BOX TO CYLINDER BLOCK (22MM)SCREW, SWITCH BOX TO CYLINDER BLOCK (22MM)
-
2211-45076 NUT, SWITCH BOX TERMINALSNUT, SWITCH BOX TERMINALS
