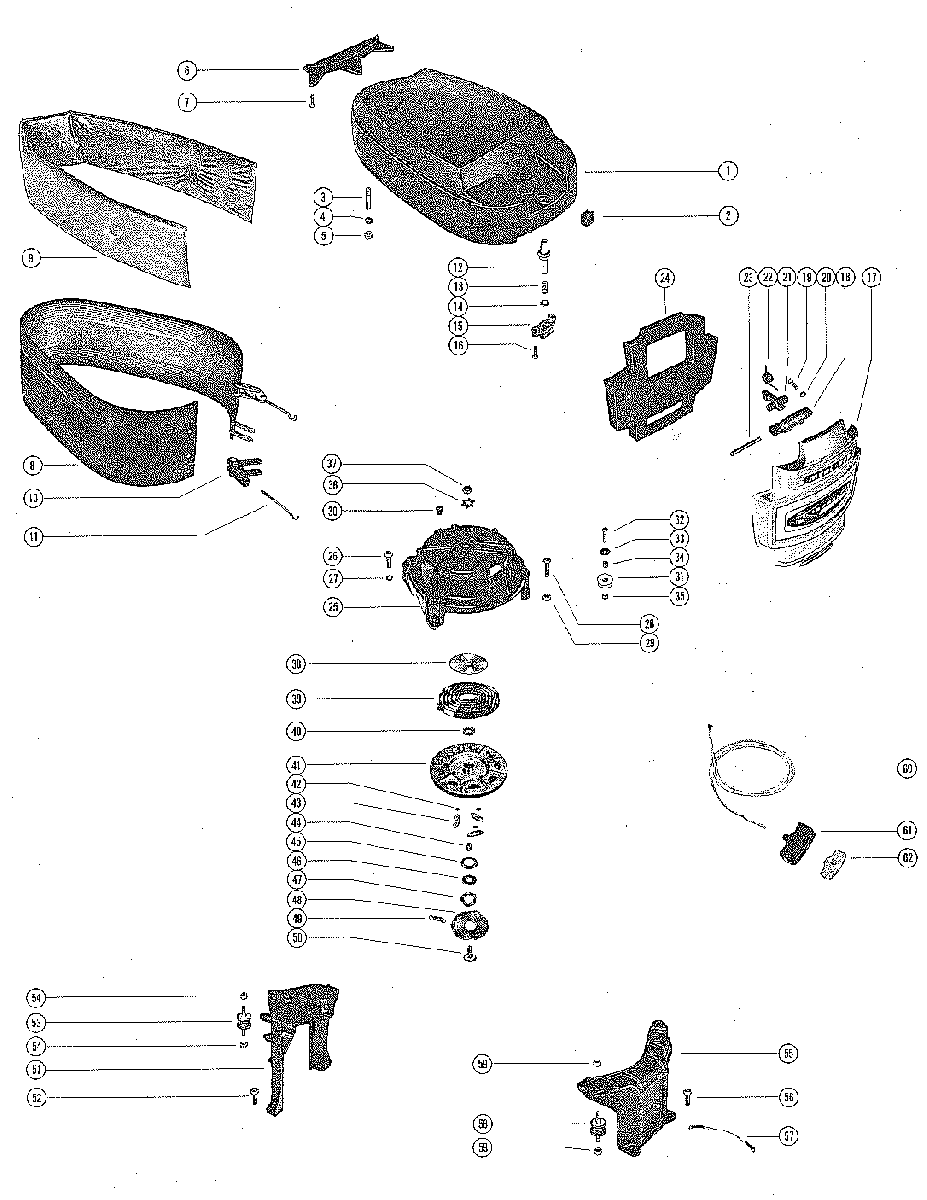

TOP COWL AND STARTER ASSEMBLY для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • 1
    2130-4361A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    39664 INSERT, ROPE GUIDE - TOP COWL
    INSERT, ROPE GUIDE - TOP COWL
  • 3
    16-21553 STUD, TOP COWL TO MOUNTING BRACKETS (1 12")
    STUD, TOP COWL TO MOUNTING BRACKETS (1 12")
  • 4
    12-30283 WASHER, TOP COWL STUD
    WASHER, TOP COWL STUD
  • 5
    11-82670911 NUT, TOP COWL STUD
    NUT, TOP COWL STUD
  • 6
    39400 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 7
    10-38055 SCREW, REAR SHIELD TO TOP COWL (5/8")
    SCREW, REAR SHIELD TO TOP COWL (5/8")
  • 8
    2133-2706A5 WRAP AROUND COWL ASSEMBLY, COMPLETE
    WRAP AROUND COWL ASSEMBLY, COMPLETE
  • 9
    39606 BLANKER, SOUND ABSORBING - WRAP AROUND COWL
    BLANKER, SOUND ABSORBING - WRAP AROUND COWL
  • 10
    46785A1 COWL LATCH ASSEMBLY
    COWL LATCH ASSEMBLY
  • 11
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 12
    39628 BUTTON, FRONT COVER RELEASE - TOP COWL
    BUTTON, FRONT COVER RELEASE - TOP COWL
  • 13
    24-20099 SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
    SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
  • 14
    12-29245 WASHER, FRONT COVER RELEASE BUTTON
    WASHER, FRONT COVER RELEASE BUTTON
  • 15
    60865 CATCH, FRONT COVER RELEASE BUTTON
    CATCH, FRONT COVER RELEASE BUTTON
  • 16
    10-22523 SCROW, FRONT COVER LATCH TO TOP COWL (3/4")
    SCROW, FRONT COVER LATCH TO TOP COWL (3/4")
  • 17
    2127-5669A2 FRONT COVER ASSEMBLY, COMPLETE
    FRONT COVER ASSEMBLY, COMPLETE
  • 17
    2127-5669A2 FRONT COVER ASSEMBLY, COMPLETE
    FRONT COVER ASSEMBLY, COMPLETE
  • 18
    60867A1 BASE, FRONT COVER LATCH
    BASE, FRONT COVER LATCH
  • 19
    10-26500 SCREW, LATCH BASE TO FRONT COVER (9/16")
    SCREW, LATCH BASE TO FRONT COVER (9/16")
  • 20
    12-26014 WASHER, LATCH BASE SCREW
    WASHER, LATCH BASE SCREW
  • 21
    60866 HOOK, FRONT COVER LATCH
    HOOK, FRONT COVER LATCH
  • 22
    24-39598 SPRING,TORSION - FRONT COVER LATCH HOOK
    SPRING,TORSION - FRONT COVER LATCH HOOK
  • 23
    17-39599 PIN, PIVOT - FRONT COVER LATCH HOOK
    PIN, PIVOT - FRONT COVER LATCH HOOK
  • 24
    39936 BLANKER, SOUND ABSORBING - FRONT COVER
    BLANKER, SOUND ABSORBING - FRONT COVER
  • 25
    75349A2 HOUSING, STARTER
    HOUSING, STARTER
  • 26
    10-37562 SCREW, STARTER HOUSING TO CYLINDER BLOCK (1")
    SCREW, STARTER HOUSING TO CYLINDER BLOCK (1")
  • 27
    13-26993 LOCKWASHER, STARTER HOUSING TO CYLINDER BLOCK SCREW
    LOCKWASHER, STARTER HOUSING TO CYLINDER BLOCK SCREW
  • 28
    10-24644 SCREW, STARTER HOUSING TO CRANKCASE (1 3/8)
    SCREW, STARTER HOUSING TO CRANKCASE (1 3/8)
  • 28
    10-22659 SCREW, STARTER HOUSING TO CRANKCASE (1 58")
    SCREW, STARTER HOUSING TO CRANKCASE (1 58")
  • 29
    11-8267089 NUT, STARTER HOUSING TO CRANKCASE SCREW
    NUT, STARTER HOUSING TO CRANKCASE SCREW
  • 30
    47430 BUMPER, RUBBER - STARTER HOUSING
    BUMPER, RUBBER - STARTER HOUSING
  • 31
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
  • 32
    10-37892 SCREW, PULLEY TO STARTER HOUSING (1")
    SCREW, PULLEY TO STARTER HOUSING (1")
  • 33
    12-22887 WASHER, PULLEY SCREW
    SERIAL 00000000-02439399
    WASHER, PULLEY SCREW
    SERIAL 00000000-02439399
  • 33
    94121 RETAINER, PULLEY SCREW
    SERIAL 02439400-09999999
    RETAINER, PULLEY SCREW
    SERIAL 02439400-09999999
  • 34
    23-309772 SPACER, PULLEY SCREW
    SPACER, PULLEY SCREW
  • 35
    11-20110 NUT, PULLEY SCREW
    NUT, PULLEY SCREW
  • 36
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 37
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 38
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 39
    24-29340T02 SPRING, STARTER REWING
    SPRING, STARTER REWING
  • 40
    23-20159 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 41
    50-64008A1 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 42
    13-29720 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 43
    20162 PAWL, STARTER
    PAWL, STARTER
  • 44
    23-65720 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 45
    26179 RETAINER, STARTER SHEAVE TO PLATE
    RETAINER, STARTER SHEAVE TO PLATE
  • 46
    12-35559 WASHER, STARTER SHEAVE RETAINER
    WASHER, STARTER SHEAVE RETAINER
  • 47
    13-20160 WASHER, WAVE - STARTER SHEAVE TENSION
    WASHER, WAVE - STARTER SHEAVE TENSION
  • 48
    20164 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 49
    24-45823 SPRING, PAWL RETAINER PLATE
    SPRING, PAWL RETAINER PLATE
  • 50
    65869A1 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 51
    74325 BRACKET, MOUNTING - TOP COWL (REAR)
    BRACKET, MOUNTING - TOP COWL (REAR)
  • 52
    10-37562 SCREW, REAR MOUNTING BRACKET TO BOTTOM COWL (1")
    SCREW, REAR MOUNTING BRACKET TO BOTTOM COWL (1")
  • 53
    90435 MOUNT, RUBBER - REAR MOUNTING BRACKET TO CYLINDER BLOCK
    MOUNT, RUBBER - REAR MOUNTING BRACKET TO CYLINDER BLOCK
  • 54
    11-8267089 NUT, RUBBER MOUNT TO BRACKET AND CYLIINDER BLOCK
    NUT, RUBBER MOUNT TO BRACKET AND CYLIINDER BLOCK
  • 55
    64674 BRACKET, MOUNTING - TOP COWL (FRONT)
    BRACKET, MOUNTING - TOP COWL (FRONT)
  • 56
    10-37562 SCREW, FRONT MOUNTING BRACKER TO BOTTOM COWL (1")
    SCREW, FRONT MOUNTING BRACKER TO BOTTOM COWL (1")
  • 57
    47962 CABLE, FRONT MOUNTING BRACKET TO CRANKCASE MOUNT
    CABLE, FRONT MOUNTING BRACKET TO CRANKCASE MOUNT
  • 58
    90435 MOUNT, RUBBER - FRONT MOUNTING BRACKET TO CRANKCASE
    MOUNT, RUBBER - FRONT MOUNTING BRACKET TO CRANKCASE
  • 59
    11-8267089 NUT, RUBBER MOUNT TO BRACKET AND CRANKCASE
    NUT, RUBBER MOUNT TO BRACKET AND CRANKCASE
  • 60
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 61
    23-30781 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 62
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
