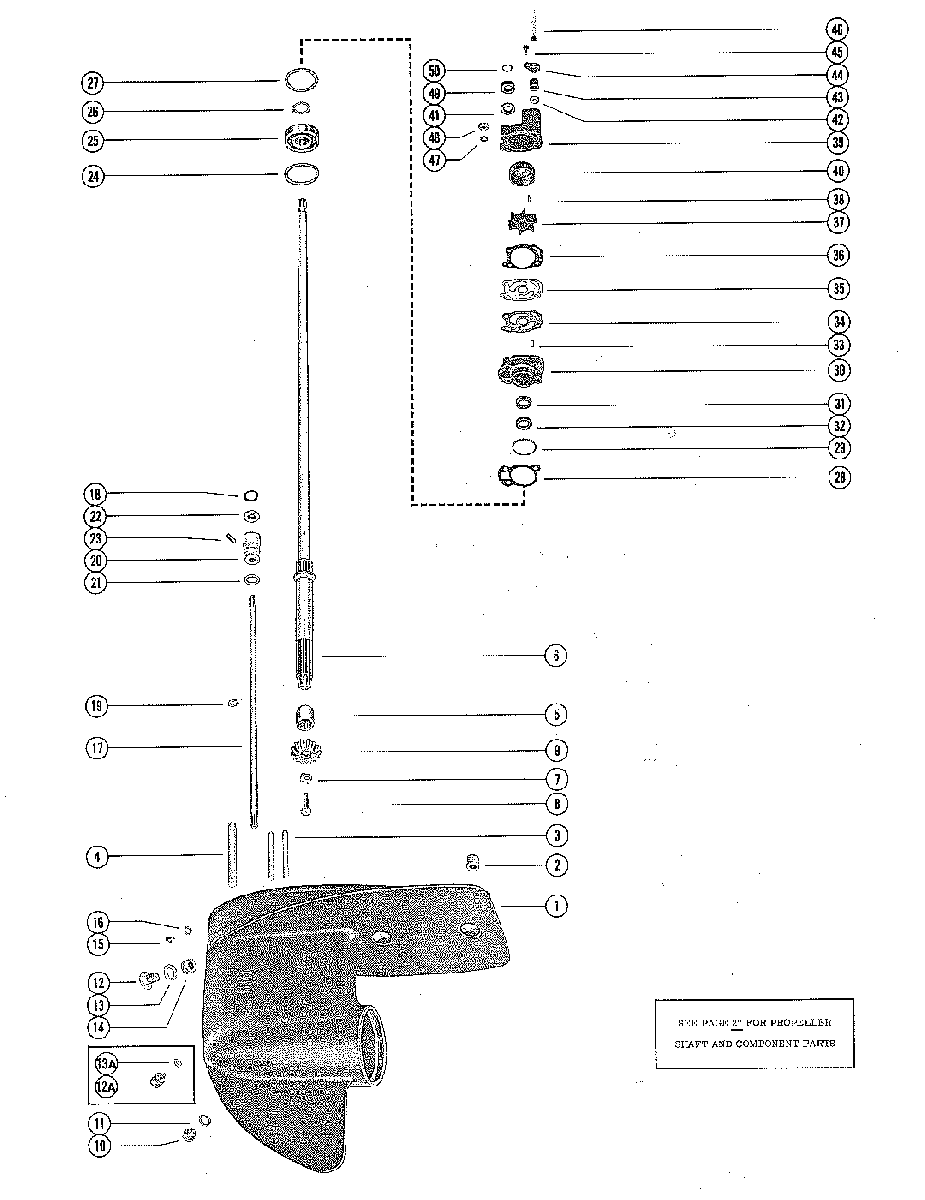

GEAR HOUSING ASSEMBLY, COMPLETE(CONT) для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • -
    1627-3482A13 GEAR HOUSIMG ASSEMBLY, COMPLETE (SHORT SHAFT)
    ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSIMG ASSEMBLY, COMPLETE (SHORT SHAFT)
    ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • -
    1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • -
    1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • -
    1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • -
    1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • -
    1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27
  • 1
    1627-2964A1 GEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP)
    GEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP)
  • 1
    1627-3482A1 GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP)
    GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP)
  • 2
    17-20201 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
    PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 3
    10-20668 STUD, WATER PUMP TO GEAR HOUSING (2 13/16")-ALUMINUM
    STUD, WATER PUMP TO GEAR HOUSING (2 13/16")-ALUMINUM
  • 3
    16-58137 STUD, WATER PUMP TO GEAR HOUSING (3 1/8")-PLASTIC
    STUD, WATER PUMP TO GEAR HOUSING (3 1/8")-PLASTIC
  • 4
    16-58135 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
  • 5
    31-28157 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    45-93300A1 DRIVE SHAFT (SHORT SHAFT) - STRAIGHT
    DRIVE SHAFT (SHORT SHAFT) - STRAIGHT
  • 6
    45-93301A1 DRIVE SHAFT (LONG SHAFT) - STRAIGHT
    DRIVE SHAFT (LONG SHAFT) - STRAIGHT
  • 7
    14-20806 TAB WASHER, PINION GEAR SCREW - STRAIGHT
    TAB WASHER, PINION GEAR SCREW - STRAIGHT
  • 8
    10-20807 SCREW, PINION GEAR TO DRIVE SHAFT - STRAIGHT
    SCREW, PINION GEAR TO DRIVE SHAFT - STRAIGHT
  • 9
    43-45227A3 GEAR, PINION - STRAIGHT
    GEAR, PINION - STRAIGHT
  • 6
    45-93300A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) - SPIRAL
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT) - SPIRAL
  • 6
    45-93301A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT) - SPIRAL
    DRIVE SHAFT ASSEMBLY (LONG SHAFT) - SPIRAL
  • 7
    14-49911 TAB WASHER, PINION GEAR SCREW - SPIRAL
    TAB WASHER, PINION GEAR SCREW - SPIRAL
  • 8
    10-49908 SCREW, PINION GEAR TO DRIVE SHAFT - SPIRAL
    SCREW, PINION GEAR TO DRIVE SHAFT - SPIRAL
  • 9
    43-45189 GEAR, PINION
    GEAR, PINION
  • 10
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 11
    12-191833 WASHER, GREASE FILLER SCREW - ALUMINUM
    WASHER, GREASE FILLER SCREW - ALUMINUM
  • 12
    10-29608 SCREW, GEAR HOUSING FLUSHING - ALUMINUM
    SCREW, GEAR HOUSING FLUSHING - ALUMINUM
  • 13
    27-29586 GASKETE, GEAR HOUSING FLUSHING SCREW - ALUMINUM
    GASKETE, GEAR HOUSING FLUSHING SCREW - ALUMINUM
  • 14
    26-29612 SEAL, GEAR HOUSING FLUSHING SCREW - ALUMINUM
    SEAL, GEAR HOUSING FLUSHING SCREW - ALUMINUM
  • 12A
    19-48750 PLUG, GEAR HOUSING FLUSHING - PLASTIC
    PLUG, GEAR HOUSING FLUSHING - PLASTIC
  • 13A
    12-49221 WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG - PLASTIC
    WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG - PLASTIC
  • 15
    10-28653 SCREW, GREASE VENT
    SCREW, GREASE VENT
  • 16
    19643 WASHER, GREASE VENT SCREW
    WASHER, GREASE VENT SCREW
  • 17
    56829A1 SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)
    SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)
  • 17
    56830A1 SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
  • 18
    25-38933 "O"RING, LOWER SHIFT SHAFT
    "O"RING, LOWER SHIFT SHAFT
  • 19
    53-30899 RING, RETAINING -SHIFT SHAFT
    RING, RETAINING -SHIFT SHAFT
  • 20
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 21
    25-26802 "O"RING, SHIFT SHAFT BUSHING
    "O"RING, SHIFT SHAFT BUSHING
  • 22
    26-30696 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 23
    10-39149 SCREW, SHIFT SHAFT BUSHING RETAINER
    SCREW, SHIFT SHAFT BUSHING RETAINER
  • 24
    15-20804A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 25
    30-69389 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 26
    53-33463 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 27
    15-20804A1 SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)
    SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)
  • 28
    27-39626 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 29
    25-33466 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 30
    46-48763A1 WATER PUMP BASE ASSEMBLY (ALUMINUM)
    WATER PUMP BASE ASSEMBLY (ALUMINUM)
  • 30
    46-48744A1 WATER PUMP BASE ASSEMBLY (PLASTIC)
    WATER PUMP BASE ASSEMBLY (PLASTIC)
  • 31
    26-20070 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 32
    26-897154 OIL SEAL, WATER PUMP BASE (SPRING LOADED)
    OIL SEAL, WATER PUMP BASE (SPRING LOADED)
  • 33
    17-8M0084627 PIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODY
    PIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODY
  • 34
    27-39625 GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
    GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
  • 35
    39624 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 36
    27-396231 GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)
    GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)
  • 37
    47-39487 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 38
    28-28784 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 39
    46-60365A1 WATER PUMP BODY ASSEMBLY (ALUMINUM)
    WATER PUMP BODY ASSEMBLY (ALUMINUM)
  • 39
    46-87458A2 WATER PUMP BODY ASSEMBLY (PLASTIC)
    WATER PUMP BODY ASSEMBLY (PLASTIC)
  • 40
    39629 INSERT, WATER PUMP BODY (ALUMINUM)
    INSERT, WATER PUMP BODY (ALUMINUM)
  • 40
    48754 INSERT, WATER PUMP BODY (PLASTIC)
    INSERT, WATER PUMP BODY (PLASTIC)
  • 41
    26-20070 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 42
    23-86215 WASHER, NYLON - WATER PUMP BODY
    WASHER, NYLON - WATER PUMP BODY
  • 43
    26-25329 SEAL, WATER PUMP BODY
    SEAL, WATER PUMP BODY
  • 44
    45010 RETAINER, WATER PUMP BODY SEAL
    RETAINER, WATER PUMP BODY SEAL
  • 45
    10-455611 SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
    SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
  • 46
    23-45170 SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 47
    12-36001 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 48
    11-826709111 NUT, WATER PUMP STUDS
    NUT, WATER PUMP STUDS
  • 49
    12-20684 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 50
    25-26802 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
