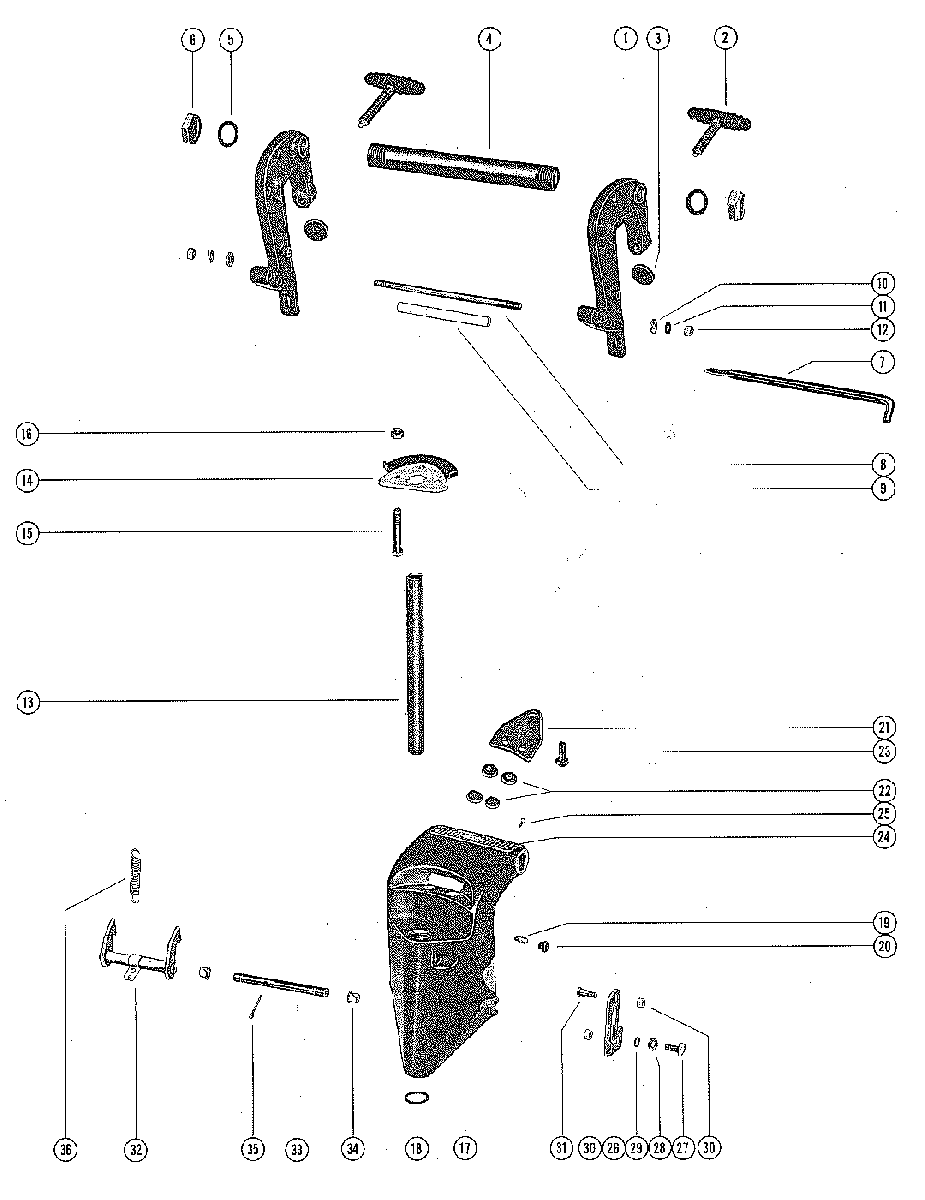

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • 1
    1427-5632A3 CAMP BRACKET ASSEMBLY
    CAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    74249 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
    TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TILT TUBE (.010-.020)
    SHIM, CLAMP BRACKET TILT TUBE (.010-.020)
  • 5
    12-52864 SHIM, CLAMP BRACKET TILT TUBE
    SHIM, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    17-56373A2 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 8
    16-59620 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    12-24812 WASHER, CLAMP BRACKEET STUD
    WASHER, CLAMP BRACKEET STUD
  • 11
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 12
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 13
    17-39585 SWIVEL PIN
    SWIVEL PIN
  • 14
    33423 CO-PILOT DISC
    CO-PILOT DISC
  • 15
    10-26132 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 16
    11-29250 NUT, CO-PILOT DISC TO SADDLE SCREW
    NUT, CO-PILOT DISC TO SADDLE SCREW
  • 17
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 18
    25-29845 "O" RING, SWIVEL BRACKET
    "O" RING, SWIVEL BRACKET
  • 19
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 20
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 21
    39307 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 22
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 23
    10-29201 SCREW, CLAMP PLATE TO SWIVEL BRACKET
    SCREW, CLAMP PLATE TO SWIVEL BRACKET
  • 24
    38-39666 SERIAL PLATE
    SERIAL PLATE
  • 25
    10-28642 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 26
    33512 LEVER, TILT STOP
    LEVER, TILT STOP
  • 26
    63310A1 LEVER, TILT STOP
    LEVER, TILT STOP
  • 27
    10-29237 SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    SCREW, RETAINING - LEVER TO SWIVEL BRACKET
  • 28
    13-36076 WASHER, WAVE - TILT STOP LEVER SCREW
    WASHER, WAVE - TILT STOP LEVER SCREW
  • 29
    15-37711020 SHIM, RETAINING SCREW
    SHIM, RETAINING SCREW
  • 30
    11-20184 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 31
    10-20217 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 31
    10-27791 SCREW, ANCOR - TILT STOP LEVER
    SCREW, ANCOR - TILT STOP LEVER
  • 32
    33417A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 33
    26092 ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 34
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 35
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 36
    24-33418 SPRING, REVERSE LOCK LEVER
    SPRING, REVERSE LOCK LEVER
