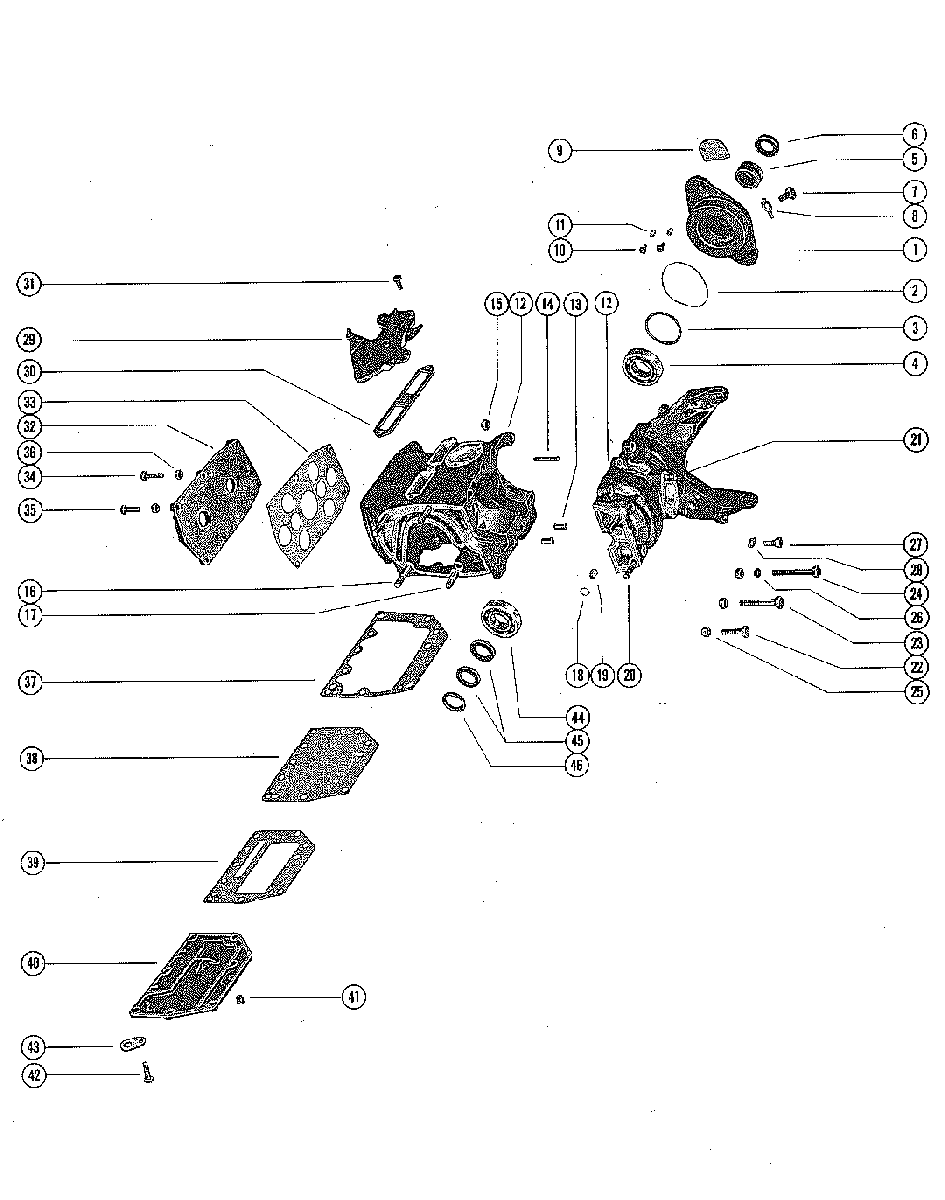

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200 2296267 THRU 2827676

  • №
    Артикул
    Название
  • 1
    1123-3017A2 CRANKCASE TOP ASSEMBLY
    CRANKCASE TOP ASSEMBLY
  • 2
    25-20081 "O" RING, CRANKCASE TOP
    "O" RING, CRANKCASE TOP
  • 3
    15-20514A1 SHIM, BALL BEARING TO CRANKCASE TOP (.002-3-5-10)
    SHIM, BALL BEARING TO CRANKCASE TOP (.002-3-5-10)
  • 4
    30-63326T BEARING, BALL -CRANKCASE TOP (UPPER)
    BEARING, BALL -CRANKCASE TOP (UPPER)
  • 5
    31-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)
    BEARING, ROLLER - CRANKCASE TOP (UPPER)
  • 6
    26-66300 OIL SEAL, CRANKCASE TOP (UPPER)
    OIL SEAL, CRANKCASE TOP (UPPER)
  • 7
    10-25299 SCREW, CRANKCASE TOP TO CYLINDER BLOCK AND CRANKCASE (3/4")
    SCREW, CRANKCASE TOP TO CYLINDER BLOCK AND CRANKCASE (3/4")
  • 8
    14-20747 TAB WASHER, CRANKCASE TOP SCREW
    TAB WASHER, CRANKCASE TOP SCREW
  • 9
    54-34598 CLIP, HOLD DOWN RING - CRANKCASE TOP 2
    CLIP, HOLD DOWN RING - CRANKCASE TOP 2
  • 10
    10-31308 SCREW, RING CLIP TO CRANKCASE TOP
    SCREW, RING CLIP TO CRANKCASE TOP
  • 9
    54-53557A1 CLIP ASSEMBLY, HOLD DOWN RING - CRANKCASE TOP
    CLIP ASSEMBLY, HOLD DOWN RING - CRANKCASE TOP
  • 10
    10-53852 SCREW, RING CLIP TO CRANKCASE TOP
    SCREW, RING CLIP TO CRANKCASE TOP
  • 11
    24-34731 SPRING, TENSION - HOLD DOWN RING CLIP
    SPRING, TENSION - HOLD DOWN RING CLIP
  • 12
    848-3566A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2432535 AND BELOW)
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SERIAL #2432535 AND BELOW)
  • 12
    848-3566A3 CYLINDER BLOCK AND CRANKCASE TO CYLINDER BLOCK
    CYLINDER BLOCK AND CRANKCASE TO CYLINDER BLOCK
  • 13
    17-23784 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 14
    16-65866 STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
    STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
  • 15
    11-29250 NUT, CRANKCASE STUD
    NUT, CRANKCASE STUD
  • 16
    16-65868 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
  • 17
    16-68165 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
  • 18
    19-20011 WELCH PLUG, CRANKCASE CHECK VALVE
    WELCH PLUG, CRANKCASE CHECK VALVE
  • 19
    21-27146A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 20
    16-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
  • 21
    16-65865 STUD, CARBURETOR TO CRANKCASE (1 3/32")
    STUD, CARBURETOR TO CRANKCASE (1 3/32")
  • 22
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
  • 23
    10-26065 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 23
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 24
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
  • 25
    11-29250 NUT, CRANKCASE SCREW
    NUT, CRANKCASE SCREW
  • 26
    25-25429 "O" RING, CRANKCASE SCREW
    "O" RING, CRANKCASE SCREW
  • 27
    10-98260 SCREW, LOCK - CENTER MAIN BEARING (5/8")
    SCREW, LOCK - CENTER MAIN BEARING (5/8")
  • 28
    14-20091 TAB WASHER, CENTER MAIN BEARING LOCK SCREW
    TAB WASHER, CENTER MAIN BEARING LOCK SCREW
  • 29
    47231 COVER, TRANSFER PORT
    SERIAL 00000000-02432535
    COVER, TRANSFER PORT
    SERIAL 00000000-02432535
  • 29
    77362 COVER, TRANSFER PORT
    SERIAL 02432536-09999999
    COVER, TRANSFER PORT
    SERIAL 02432536-09999999
  • 30
    27-26175 GASKET, TRANSFER PORT COVER
    SERIAL 00000000-02432535
    GASKET, TRANSFER PORT COVER
    SERIAL 00000000-02432535
  • 30
    27-279361 GASKET, TRANSFER PORT COVER
    SERIAL 02432536-09999999
    GASKET, TRANSFER PORT COVER
    SERIAL 02432536-09999999
  • 31
    10-28636 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK #3/4")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK #3/4")
  • 31
    10-24646 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
  • 32
    1020-2757 COVER, CYLINDER BLOCK (SERIAL #2432535 AND BELOW)
    COVER, CYLINDER BLOCK (SERIAL #2432535 AND BELOW)
  • 32
    1022-3567 COVER, CYLINDER BLOCK (SERIAL #2432536 AND UP)
    COVER, CYLINDER BLOCK (SERIAL #2432536 AND UP)
  • 33
    27-26173 GASKET, CYLINDER BLOCK COVER (SERIAL #2432535 AND BELOW)
    GASKET, CYLINDER BLOCK COVER (SERIAL #2432535 AND BELOW)
  • 33
    27-78410 GASKET, CYLINDER BLOCK COVER (SERIAL #2432536 AND UP)
    GASKET, CYLINDER BLOCK COVER (SERIAL #2432536 AND UP)
  • 34
    10-24644 SCREW, COVER TO CYLINDER BLOCK (1 3/8")
    SCREW, COVER TO CYLINDER BLOCK (1 3/8")
  • 35
    10-21091 SCREW, COVER TO CYLINDER BLOCK (1 1/8")
    SCREW, COVER TO CYLINDER BLOCK (1 1/8")
  • 36
    11-20184 NUT, CYLINDER BLOCK COVER SCREW
    NUT, CYLINDER BLOCK COVER SCREW
  • 37
    27-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 38
    39308 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 39
    27-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
  • 40
    88797 COVER, EXHAUXST MANIFOLD
    COVER, EXHAUXST MANIFOLD
  • 41
    22-328022 PLUG, PIPE - MANIFOLD COVER
    PLUG, PIPE - MANIFOLD COVER
  • 42
    10-28782 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
  • 43
    53-78201 BRACKET, MANIFOLD COVER SCREW - STATOR LEADS CLIP
    BRACKET, MANIFOLD COVER SCREW - STATOR LEADS CLIP
  • 44
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 45
    26-16977 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
  • 46
    23-33736 SPACER, PROTECTOR - CRANKCASE
    SPACER, PROTECTOR - CRANKCASE
